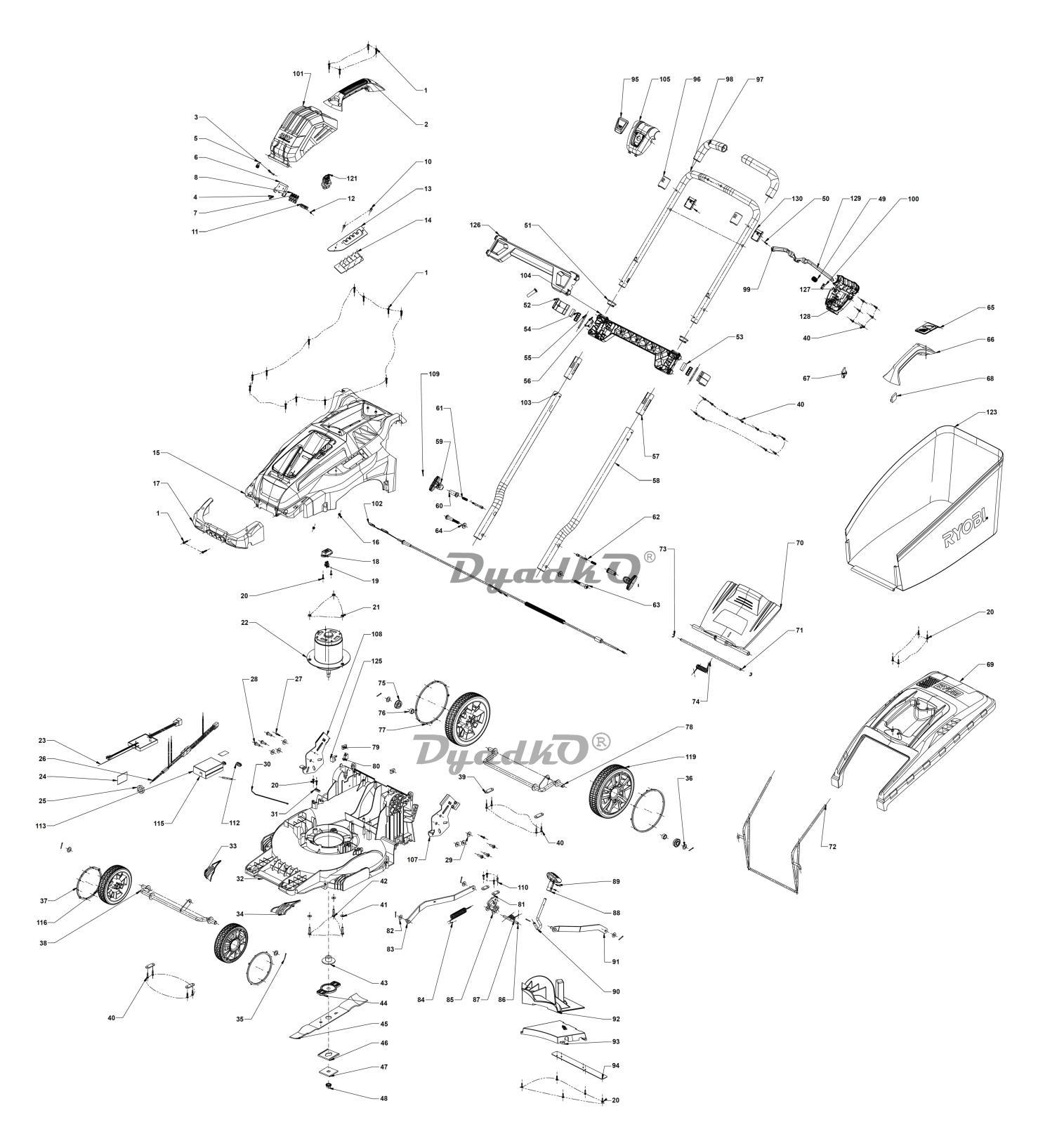

Схема RYOBI RLM36B41H (4000462978)

1001 SCREW
1002 HANDLE
1003 AXLE
1004 SPRING
1005 SPRING
1006 CONTACT
1007 CONTACT
1008 CONTACT
1011 CONNECTOR
1012 SCREW
1013 RUBBER PLATE
1015 HOUSING
1016 NUT
1018 BRACKET
1019 CONNECTING WIRE
1020 SCREW
1021 NUT
1022 MOTOR
1023 ELECTRONIC
1024 TUBE
1025 FERRITE CORE
1026 WIRE
1027 SCREW
1028 SCREW
1029 WASHER
1031 CLIP
1032 ABSOLUTE UNIT
1033 SIDE PART
1034 COVER
1035 PIN
1036 WASHER
1037 COVER
1038 AXLE
1039 TERMINAL STRIP
1040 SCREW
1041 WASHER
1042 SCREW
1043 SPACER
1044 HOLDER
1045 BLADE
1046 SPACER
1047 RETAINING PLATE
1048 NUT
1049 SPRING
1050 SCREW
1051 BUSHING
1052 CONNECTOR
1053 RUBBER PLATE
1054 INTERLOCK ELEMENT
1055 PIN
1056 SWITCH
1057 SLEEVE
1058 TUBE
1059 TURNING KNOB
1060 SPRING
1061 SPRING
1062 PIN
1063 SCREW
1064 WASHER
1065 INDICATOR SET
1066 HANDLE
1067 PLUG
1068 PLUG
1069 COVER
1070 DOOR
1071 AXLE
1072 FRAME
1073 CLIP
1074 SPRING
1075 BEARING
1076 BUSHING
1077 COVER
1078 AXLE
1079 NUT
1080 CLAMP
1081 INTERMEDIATE FLANGE
1082 WASHER
1083 CONNECTING ROD
1085 BRACKET
1088 HANDLE
1089 SCREW
1090 LEVER
1091 LEVER
1092 PLUG
1093 COVER
1094 PLATE
1095 TRIGGER
1096 BRACKET
1097 RUBBER
1098 HANDLE
1099 TRIGGER
1100 SPRING
1101 COVER
1102 CABLE
1103 TUBE
1104 INTERMEDIATE FLANGE
1105 COVER
1107 SIDE PART
1108 SIDE PART
1109 SPRING
1110 SCREW
1112 RUBBER RING
1113 COVER
1115 RUBBER RING
1116 WHEEL
1119 WHEEL
1121 KEY SAFE
1123 BAG
1125 CLAMP
1126 INTERMEDIATE FLANGE
1127 HOLDER
1128 HOUSING BOTTOM
1129 TRIGGER
1130 BRACKET
