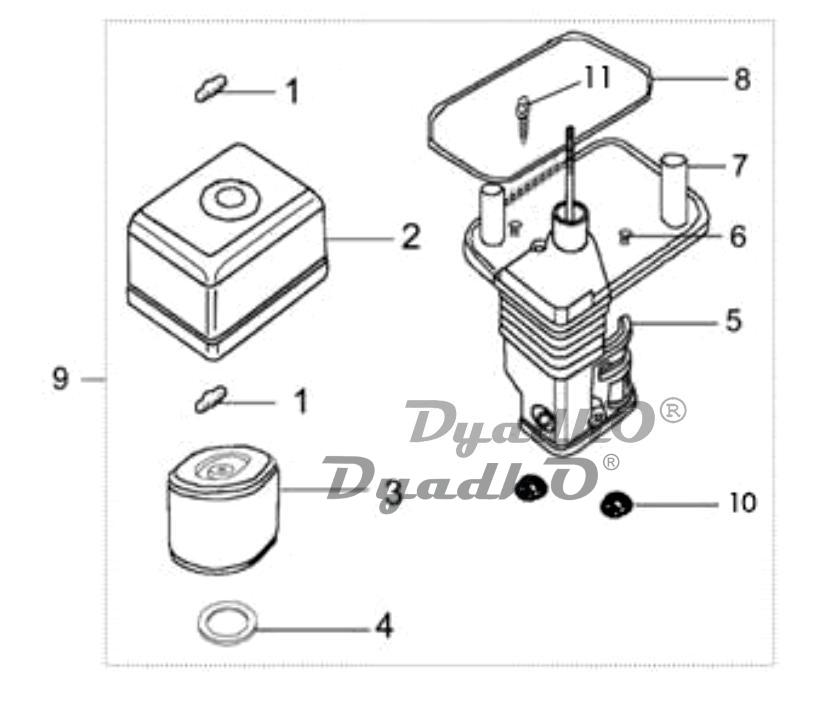

| 1 | Wing nut |
| 2 | Air cleaner cover |
| 3 | Filter element |
| 4 | Washer |
| 5 | Air cleaner housing |
| 6 | Screw M5×12 |
| 7 | Air cleaner base |
| 8 | Gasket |
| 9 | Air cleaner assy |
| 10 | Nut M6 |
| 11 | Screw M6×2 |
| 1 | Wing nut |
| 2 | Air cleaner cover |
| 3 | Filter element |
| 4 | Washer |
| 5 | Air cleaner housing |
| 6 | Screw M5×12 |
| 7 | Air cleaner base |
| 8 | Gasket |
| 9 | Air cleaner assy |
| 10 | Nut M6 |
| 11 | Screw M6×2 |
