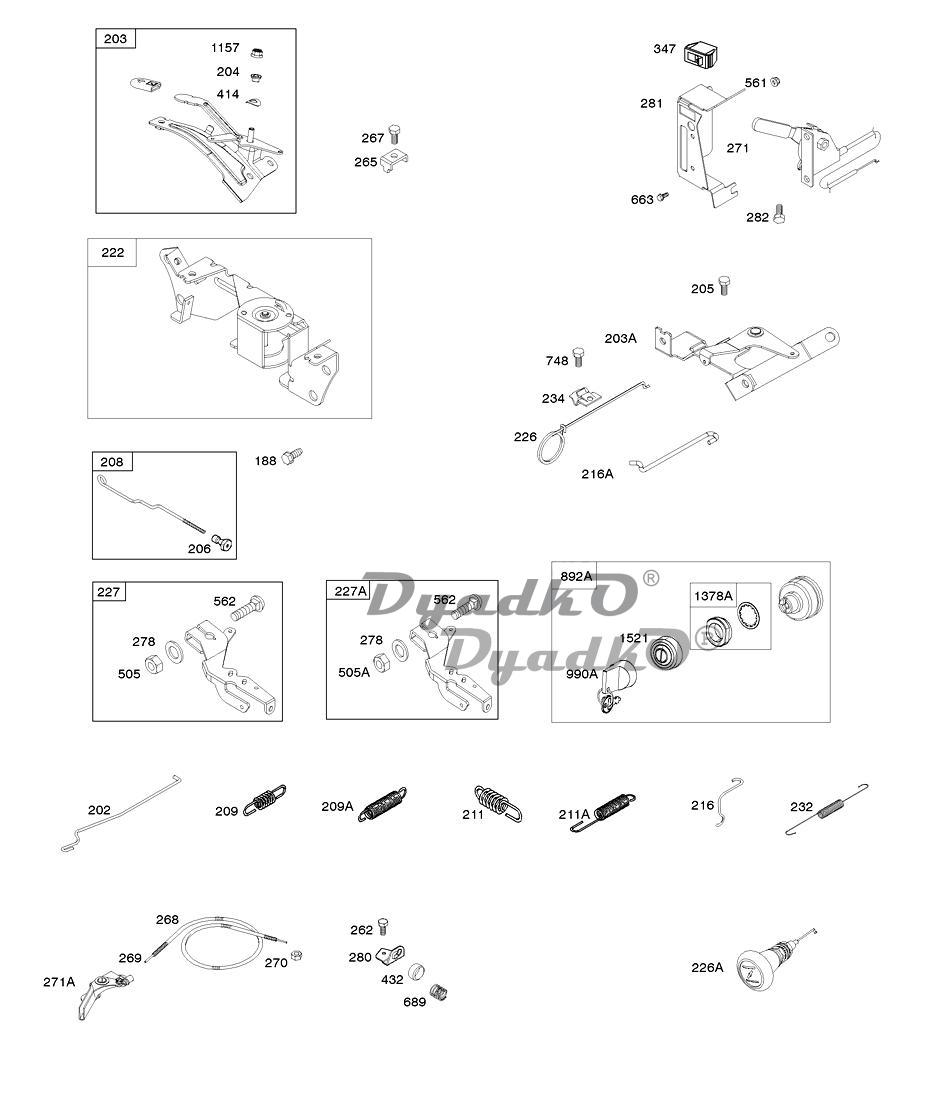

Схема (деталировка) бензиновые двигатели с горизонтальным валом BRIGGS&STRATTON 386447-0141-E1 Governor Springs, Controls. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

188	SCREW; (Control Bracket) (M8x14mm);
188	SCREW; (Control Bracket) (M8x10mm);
202	LINK, Mechanical Governor; ;
203	CRANK, Bell; ;
204	BUSHING, Lever; ;
205	SCREW; (Bell Crank);
206	NUT, Governor Adjusting; ;
208	ROD, Governor Control; ;
209A	SPRING, Governor; (Green);
211A	SPRING, Governed Idle; (Blue);
216	LINK, Choke; ;
222	BRACKET, Control; ;
227A	LEVER, Governor Control; ;
232	SPRING/LINK, Governor; ;
234	CLIP, Control Rod; ;
262	SCREW; (Rod Bracket);
265	CLAMP, Casing; ;
267	SCREW; (Casing Clamp) (M5x20mm);
268	CASING, Control Wire; (Cut To Required Length);
269	WIRE, Control; (Cut To Required Length);
270	NUT; (Control Wire Casing);
271	LEVER, Control; ;
271A	LEVER, Control; ;
278	WASHER; (Governor Control Lever);
280	BRACKET, Fixed Speed; ;
281	PANEL, Control; ;
282	SCREW; (Control Lever);
347	SWITCH, Rocker; ;
414	WASHER; (Bell Crank);
432	CAP, Spring; ;
505	NUT; (Governor Lever);
505A	NUT; (Governor Control Lever);
561	NUT; (Control Lever);
562	BOLT; (Governor Control Lever);
663	SCREW; (Control Panel);
689	SPRING, Friction; ;
748	SCREW; (Control Rod Clip) (M5x12mm);
990A	SET, Key; (Waterproof);
1157	NUT; (Bell Crank);
1378A	SET, Washer/Nut; ;
1521	CAP, Switch; (Waterproof);
