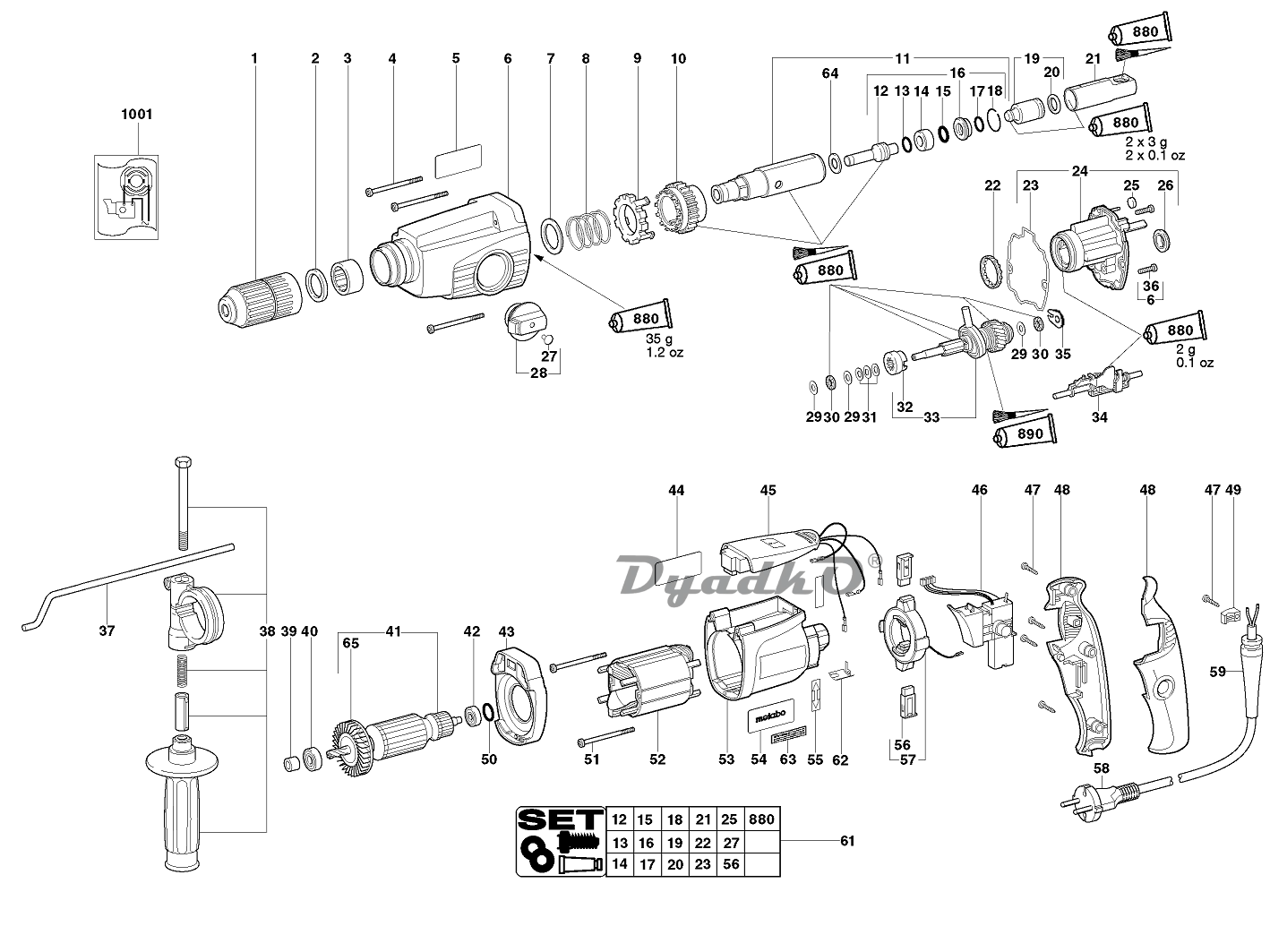

Схема METABO KHE 24 KHE 24 (00237001)

1 Adaptor SDS -PLUS (316029590)
2 Shaft sealing ring (143194910)
3 Needle sleeve (143113830)
4 Self-tap. fill. h. screw (141122490)
5 Indication label (338114490)
6 Gear housing cpl. (316031850)
7 Supporting disc (141153750)
8 Pressure spring (342002690)
9 Retaining ring (343374440)
10 Sliding sleeve cpl. (316031500)
11 Drill driving sleeve cpl. (316032230)
12 Intermediate striker cpl. (316031910)
13 O-ring (143192400)
14 Supporting ring (341012550)
15 O-ring (143193910)
16 Catching sleeve cpl. (316032200)
17 O-ring (143193920)
18 Circlip (141181840)
19 Striker cpl. (316017660)
20 Sealing ring (344093140)
21 Exciter sleeve (341056150)
22 Ball holder (320050480)
23 Seal (344095570)
24 Gear flange cpl. (316030540)
25 Felt seal (344070670)
26 Rubber buffer (344095920)
27 Seal (343376750)
28 Control knob cpl. (316032640)
29 Washer (339129610)
30 Axial needle bearing (143114280)
31 Cup spring (141154920)
32 Coupling sleeve (340003220)
33 Intermediate gear cpl. (316031610)
34 Switch element cpl.w. rot. Stop (316031370)
35 Butting sheet (339130980)
36 Fill. head screw(DIN 7985) (141119440)
37 Depth stop (341511630)
38 Support handle compl. (314000770)
39 Sealing ring (343376040)
40 Ball bearing, 8x22x7 (143114880)
41 Armature cpl.230V (w. tacho gen.) (310007880)
42 Ball bearing, 6X 19X 6 (143114750)
43 Intermediate flange (343374270)
44 Rating plate 338041080
45 Electronic unit 230V (343078070)
46 poti switch 230V (343406880)
47 Self-tap. fill. h. screw (141117060)
48 Pistol grip 2 piece (343393020)
49 Cable clip (343362490)
50 O-ring (143192430)
51 Self-tap. fill. h. screw (141118260)
52 Field coil 230V (311009800)
53 Motor housing (315012650)
54 Metabo label (338116170)
55 Indication label (338115410)
56 Carbon brush set (316034960)
57 Brush holder module (316028790)
58 Cable with plug (344486730)
59 Cable sleeve (344101140)
61 Maintenance kit (316032690)
62 Brush contact (339129390)
63 Part not needed 399999990
64 Ring (341012630)
65 Fan w. prot. Grid (316035740)
880 Grease FG 126 (344130800)
890 Grease SF 011 50Gr 1,8oz (344130560)
1001 Diagram 338502410
