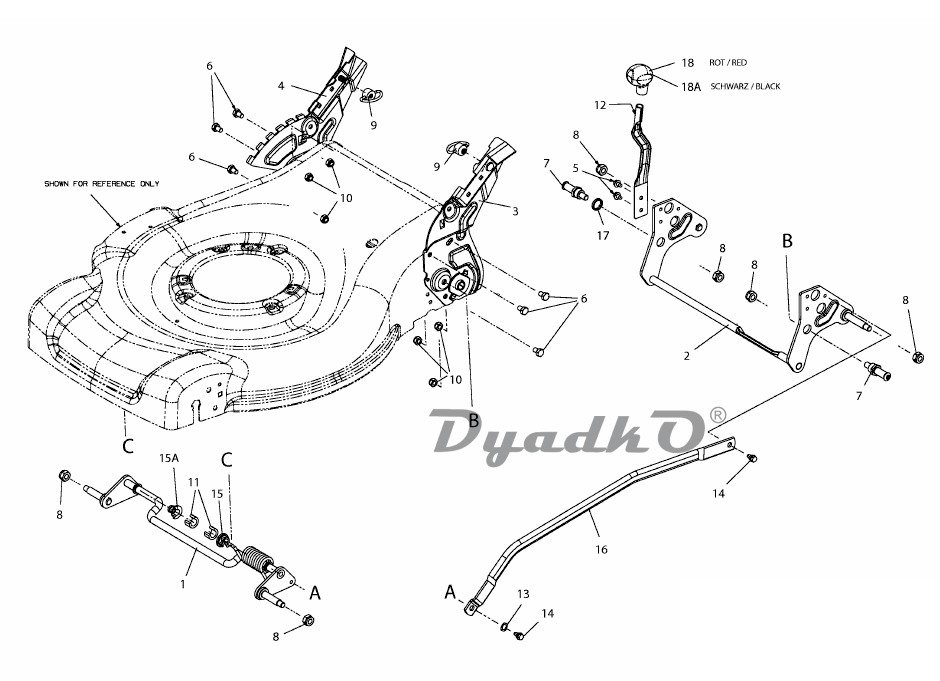

1	BRKT ASM:FRONT:HIGH WHL:800; MTD SCHWARZ;
2	BRKT ASM:RR:800:HIGH WHL; MTD SCHWARZ;
3	BRACKET ASSY. HANDLE LH 19"; PRESSTEIL;
4	BRKT ASM:HNDL:RH:HW:18/800 EU; SCHWARZ LACKIERT;
5	SCREW:TT:1/4-20:0.375:HXINDWSH; FINISH:MTD SPEC-100016;
6	SCREW:HEX:M8X12 DIN 933-8.8; MTD SPEC-100015 21.1441.67;
7	SHFT:.500 DIA:M10 THRD; FINISH:PHOS AND OIL SIEHE ZG.;
8	NUT:HEX:M10x1.25 DIN 985; FINISH:MTD SPEC-100015;
9	TOGGLE NUT 3/8-16 UNC; MIT BEWEGLICHEM KNEBEL;
10	NUT:HEXLK:M8-1.25 NYLON DIN985; FINISH:SPEC-100015 24.1426.18;
11	AXLE CLAMP RING; 731-05470;
12	SPR:LEVER:HIGH WHEEL; 732-04480A;
13	WASH:WAVE:0.375X0.608X0.020:HD; FINISH:MTD SPEC-100016;
14	SCR:SHLDR:0.348x0.183:TT; FINISH:MTD STD SPEC-100016;
15	BRG:FLG:HEX SPLIT .500 ID; 741-04136B SCHWARZ;
15A	BRG:SUPT:AXLE; 741-04516A *;
16	_____________; ;
17	SPCR:.690X.870X.150; 750-05061;
18	KNOB HEIGHT ADJUSTMENT LEVER; FINISH:VERKEHRSROT 788-0719;
18A	KNOB HEIGHT ADJUSTMENT LEVER; FINISH:SCHWARZ 788-0637;
