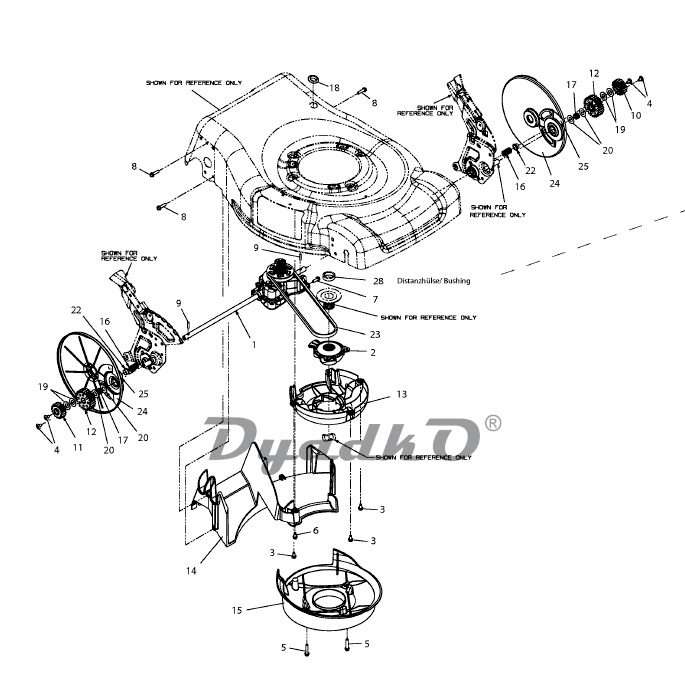

Схема MTD SPBE 53 HW (12AJ869M600) (2011) Gearbox, Engine

1 TRANS ASM:XP; 618-04826A;
2 PUL ASM:LOWER:TVS; FINISH:N/A;
3 SCR:M6x1:12 MM:DIN 7500; DIN 7500 MTD SPEC-100015;
4 SCR:SHLDR:0.435x0.040:1/4-20; FINISH:MTD SPEC-100015;
5 SCR:HL:1/4-15:1.250:HXINDWSH; FINISH:MTD SPEC-100016 TYPE 1;
6 SCREW:TT:1/4-20:0.500:HXINDWSH; FINISH:MTD SPEC-101617;
7 SCR:HL:1/4-15:0.750:HXINDWSH; FINISH:MTD SPEC-100016 TYPE 1;
8 SCR:HL:1/4-15:1.00:HXINDWSH; FINISH:SPEC-100016 TYPE 1;
9 PIN:DWL:3/16X0.750:HGMD; FINISH:PLAIN;
10 GEAR:SPUR:16T:BRNZ BUSH:LH; 717-04577A;
11 GEAR:SPUR:16T:BRNZ BUSH:RH; 717-04578A;
12 GEAR:SPUR:23T; 717-04678;
13 VAR. BAFFLE; 731-06112A;
14 BAFFLE REAR: SP 800; FINISH:SCHWARZ;
15 BAFFLE RING:800 & 19"; MATERIAL:PP7001-1001 SCHWARZ;
16 SPR:COMPRS:0.63 x 1.00; FINISH:MTD-SPEC 101616;
17 SPR:WAVE; FINISH:ÖL GEDIPPT;
18 GROM:RUBR:.77 ID x.91 OD x.35; FINISH:SCHWARZ;
19 WASH:FLAT:0.505X1.015X0.060; SPEC 100015 oder SPEC-101616;
20 WASH:THRST:.508x1.000x.020; FINISH:SIEHE ZG. 936-0369;
22 SPCR:0.5IDX0.58ODX.35LG; .5IDX0.58ODX.35LG;
23 V-BELT TYP:0.430X37.32"; 754-04176A;
24 COVER-DUST 12" HIGH WHEEL SP; 731-06145C;
25 PLT:SEAL:DUST CVR:12" HIGH WHL; 12" HIGH WHEEL:BLACK OXYDE;
26 ENGINE B&S 650 SERIES QUANTU; 124T02-0567-B1 READY START;
27 B-ENGINE B&S 800 SERIES 175CC; 11P902-0809-B1;
28 SPACER:7/8 x 1.125 x .305; FINISH:PLAIN;
29 B-ENGINE B&S 650 SERIES; 124T02-4567-B1 READY START;
30 B-ENGING B&S 675 SERIES E-STAR; 126T05-4329-B1 w/o ALT/FIX SP;
31 B-ENGINE B&S 700 SERIES 161CC; 100605-0685-B8;
32 B-ENGINE B&S 850 SERIES 190CC; 12Q902-0176-B1;
33 B-ENGINE B&S 700 SERIES 161CC; 100602-0684-B8;
34 B-ENGINE B&S 675 SERIES QUANTU; 126T02-4175-B1 READY START;
35 ENGINE B&S QUANTUM; 12F802-1960-B1 190 CC;
36 B-ENGINE B&S 800 SERIES 175CC; 122P02-0114-B1 ECO PLUS;
37 B-ENGINE B&S 850 SERIES 190CC; 122R02-0116-B1;
38 B-ENGINE B&S 850 SERIES 190CC; 122R05-0117-B1;
39 B-ENGING B&S 675 SERIES E-STAR; 126T05-0359-B1 w/o ALT/FIX SP;
40 ENGINE KAWA 6.0HP FJ 180V; FJ180V-AM50-M;
