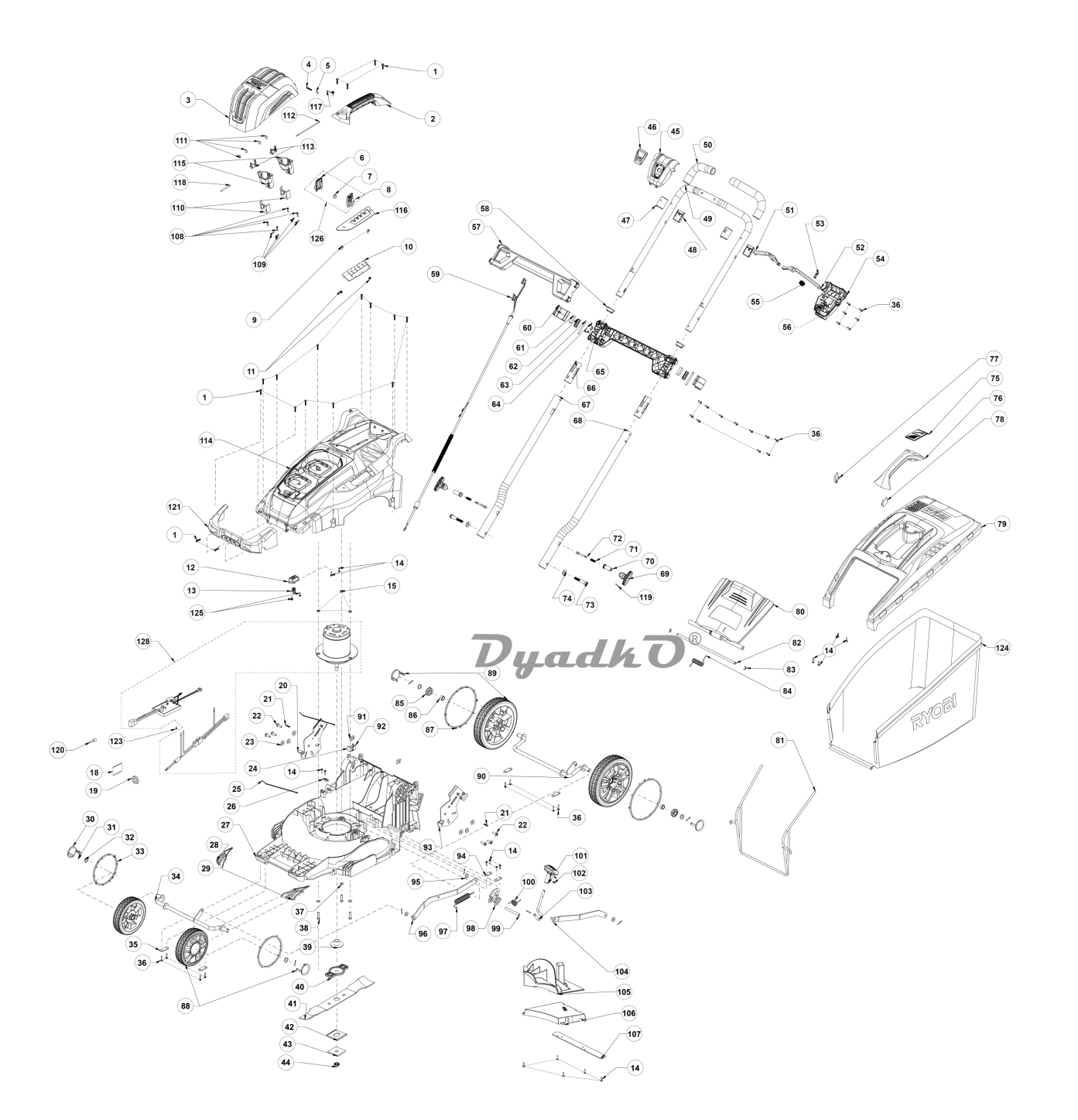

Схема RYOBI OLM1841H (4000462123)

1001 SCREW
1002 HANDLE
1003 COVER
1004 SPRING
1005 AXLE
1006 COVER
1007 SPACER
1008 COVER
1009 SCREW
1010 RUBBER
1011 NUT
1012 BRACKET
1013 CONNECTING WIRE
1014 SCREW
1015 NUT
1018 TUBE
1019 MAGNET
1020 SIDE PART
1021 SCREW
1022 SCREW
1023 WASHER
1024 CLAMP
1025 CLAMP
1026 CLIP
1027 ABSOLUTE UNIT
1028 COVER
1029 COVER
1030 COVER
1031 PIN
1032 WASHER
1033 COVER
1034 AXLE
1035 PLATE
1036 SCREW
1037 WASHER
1038 SCREW
1039 BRACKET
1040 HOLDER
1041 BLADE
1042 SPACER
1043 RETAINING PLATE
1044 NUT
1045 HOUSING
1046 BUTTON
1047 BRACKET
1048 BRACKET
1049 HANDLE
1050 RUBBER
1051 TRIGGER
1052 TRIGGER
1053 SPRING
1054 HOLDER
1055 SPRING
1056 HOUSING BOTTOM
1057 INTERMEDIATE FLANGE
1058 BUSHING
1059 CABLE
1060 CONNECTOR
1061 RUBBER PLATE
1062 INTERLOCK ELEMENT
1063 PIN
1064 SWITCH
1065 INTERMEDIATE FLANGE
1066 BUSHING
1067 TUBE
1068 TUBE
1069 TURNING KNOB
1070 SPRING
1071 SPRING
1072 PIN
1073 SCREW
1074 WASHER
1075 INDICATOR SET
1076 HANDLE
1077 PLUG
1078 PLUG
1079 COVER
1080 DOOR
1081 FRAME
1082 AXLE
1083 CLIP
1084 SPRING
1085 BEARING
1086 BUSHING
1087 COVER
1088 WHEEL
1089 WHEEL
1090 AXLE
1091 NUT
1092 CLAMP
1093 SIDE PART
1094 PLATE
1095 WASHER
1096 CONNECTING ROD
1097 SPRING
1098 BRACKET
1099 AXLE
1100 SPRING
1101 HANDLE
1102 SCREW
1103 LEVER
1104 LEVER
1105 PLUG
1106 COVER
1107 PLATE
1108 SCREW
1109 SCREW
1110 COVER
1111 RUBBER CUSHION FOR BATTERY CLIP
1112 WIRE
1113 CONTACT
1114 HOUSING
1115 HOLDER
1116 ADJUSTABLE SEGMENT
1117 SPRING
1118 TUBE
1119 SPRING
1120 CONNECTOR
1121 HOUSING
1123 SCREW
1124 BAG
1125 SCREW
1126 KEY SAFE
1128 MOTOR ASSEMBLY
