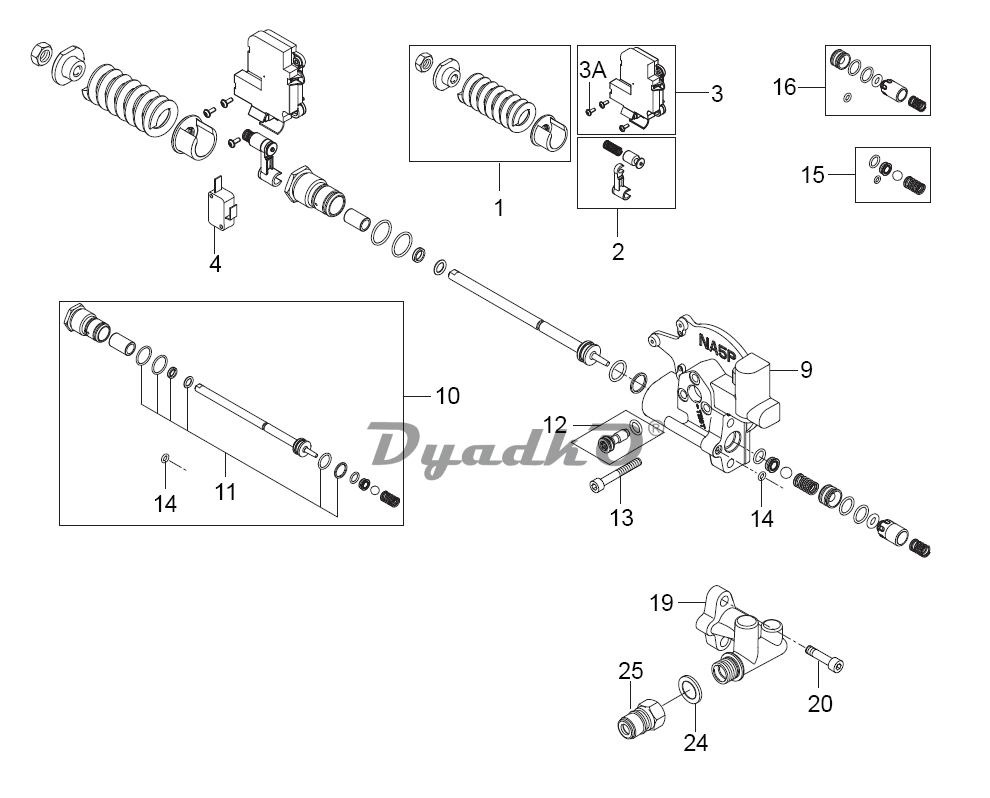

Схема (деталировка) профессиональные мойки без подогрева воды NILFISK POSEIDON 5-62 PA, MC 5M 220/1130 PA Unloader PA without water regulation. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	UNLOADER SPRING REP. KIT-PAINTED NA5 PA; [1];
2	MICROSW. ACTIVATION REP. KIT NA5 PA; ;
3	MICROSWITCH BOX W/O MICROSW. NA5 PA; ;
3A	SCREW M3X8 IS07380 FZG TORX 10; ;
4	END SWITCH 250V 5A W.WIRE FSH/FS 6.3 KIT; ;
9	UNLOADER PA NA5 W/O WATERREG./DETERG.; ;
10	STEM + SEALING REP. KIT NA5/5.2/6/6+ PA; [2];
11	SEAL KIT FOR STEM FOR NA5 PA; ;
12	UNLOADER PLUG NA5; ;
13	SCREW M6X45 ISO 4762; ;
14	O-RING D4 X D1.5 NBR 90; ;
15	BYPASS VALVE REP. KIT NA5.2 PA; ;
16	HOLDING PRESSURE VALVE REP. KIT NA5.2 PA; ;
19	OUTLET FITTING NA5 PA W/O WAT.REG./DET.; ;
20	SCREW DIN 912 M8X20 8.8 FZB; ;
24	PACK.RING D23.8XD14.96 3/8NBR SELF-CENT.; ;
25	NIPPLE F/QUICK COULING 3/8 SS; [3];
25	Nippel F. Q-COUPL. 3/8 INCH; ;
.	Part Notes:; ;
[1]	5-41 PA - MC 5M 180/840 PA 5-53 PA - MC 5M 200/1000 PA; ;
[2]	TSB-PPW-2017-005 Low pressure—Unloader valve for NA5.2 pump can leak internally DE TSB-PPW-2017-005 Niederdruck-Unloader Ventil fur die NA5.2 Pumpe kann...; .;
[3]	INOX; ;
