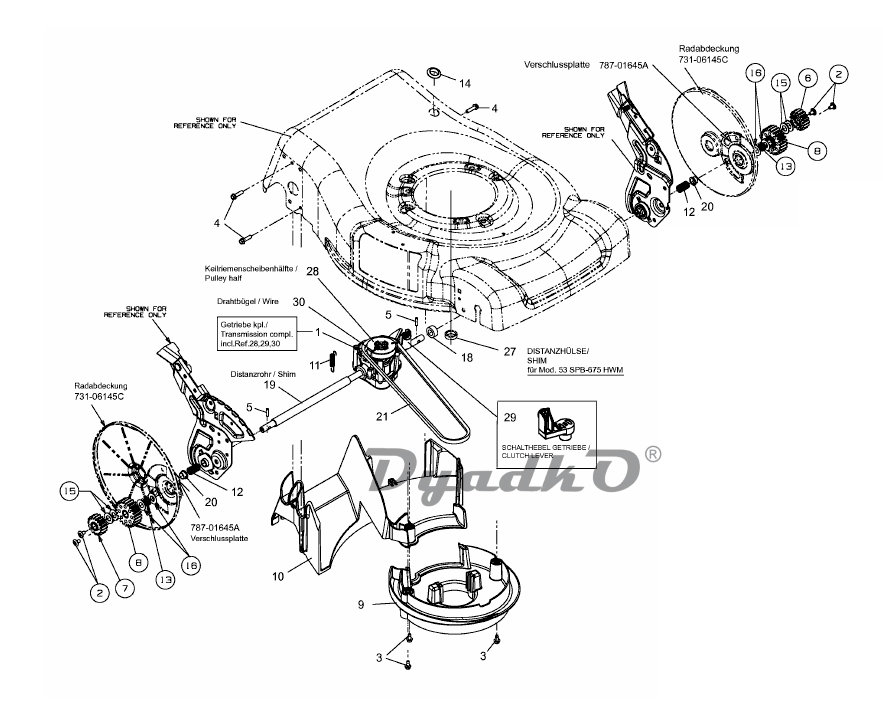

Схема YARD-MAN YM 5521 SPB HW (2010) Gearbox, Engine

1 TRANSMISSION ASMSELF PROPELLED; 618-04617A;
2 SCR:SHLDR:0.435x0.040:1/4-20; FINISH:MTD SPEC-100015;
3 SCREW:TT:1/4-20:0.500:HXINDWSH; FINISH:MTD SPEC-101617;
4 SCR:HL:1/4-15:1.00:HXINDWSH; FINISH:SPEC-100016 TYPE 1;
5 PIN:DWL:3/16X0.750:HGMD; FINISH:PLAIN;
6 GEAR:SPUR:16T:BRNZ BUSH:LH; 717-04577A;
7 GEAR:SPUR:16T:BRNZ BUSH:RH; 717-04578A;
8 GEAR:SPUR:23T; 717-04678;
9 MOTOR SUPPORT, BLACK; MATERIAL:PLASTIK SCHWARZ;
10 BAFFLE REAR: SP 800; FINISH:SCHWARZ;
11 SPR:EXTN:.375 OD x 2.2 LG; FINISH:MTD SPEC-100015;
12 SPR:COMPRS:0.63 x 1.00; FINISH:MTD-SPEC 101616;
13 SPR:WAVE; FINISH:ÖL GEDIPPT;
14 GROM:RUBR:.77 ID x.91 OD x.35; FINISH:SCHWARZ;
15 WASH:FLAT:0.505X1.015X0.060; SPEC 100015 oder SPEC-101616;
16 WASH:THRST:.508x1.000x.020; FINISH:SIEHE ZG. 936-0369;
18 SPACER:13.5mm ID x 10.7 mm LG; MATERIAL:PLASTIK SCHWARZ;
19 SPCR:SLV:14MMX17MMX227MM; 700-02006;
20 SPCR:0.5IDX0.58ODX.35LG; .5IDX0.58ODX.35LG;
21 BELT:V-TYP:3L x 32.71 POLY; POLY;
22 B-ENGINE B&S 650 SERIES; 124T02-4567-B1 READY START;
22A B-ENGINE B&S 700 SERIES 161CC; 100602-0684-B8;
22B ENGINE B&S QUANTUM; 12F802-1960-B1 190 CC;
22C B-ENGINE B&S 800 SERIES 175CC; 11P902-0809-B1;
22D B-ENGINE B&S 675 SERIES QUANTU; 126T02-6175-H1 READY START;
22E B-ENGINE B&S 800 SERIES 175CC; 122P02-0114-B1 ECO PLUS;
22F B-ENGINE B&S 850 SERIES 190CC; 12Q902-0176-B1;
22G _____; ;
22H MOTOR B&S 50 QUANTUM MODULAR; 122T02-5960-H1 190 CC;
22J B-ENGINE B&S 800 SERIES 175CC; 112P02-0110-B1;
22K MOTOR B&S 650 SERIES; 124T02-6567-H1 READY START;
23 ENGINE 173 CC OHV VERTIC SHAFT; 5P70MHB AUTOCHOKE;
24 ENGINE 173 CC OHV VERTIC SHAFT; 2P70MHB E-START;
24A ENGINE 173 CC OHV VERTIC SHAFT; 1P70RH PRIMER VERSION;
24B MOTOR 195CC OHV VERTIC SHAFT; M5P71 AUTOCHOKE;
25 B-ENGINE HONDA 25/61,9MM SHAFT; GCV190A-A4-G4-SD;
25A GCV 160E-A3-G9-SD; B-MOTOR HONDA 80 MM SHAFT;
25B GCV 160E-A4-G9-SD; B-MOTOR HONDA 61.9 MM SHAFT;
25C B-MOTOR HONDA 22,2/80,2 SHAFT; GCV190A-A1-G7-SD;
25D ; ;
26 ENGINE KAWA 6.0HP FJ 180V; FJ180V-AM50-M;
27 SPACER:7/8 x 1.125 x .305; FINISH:PLAIN;
28 PUL:HALF:2.5 OD; FINISH:PLAIN;
29 LEVER CLUTCH; 731-05100;
30 WIRE:TRANS:EURO; 732-04509;
