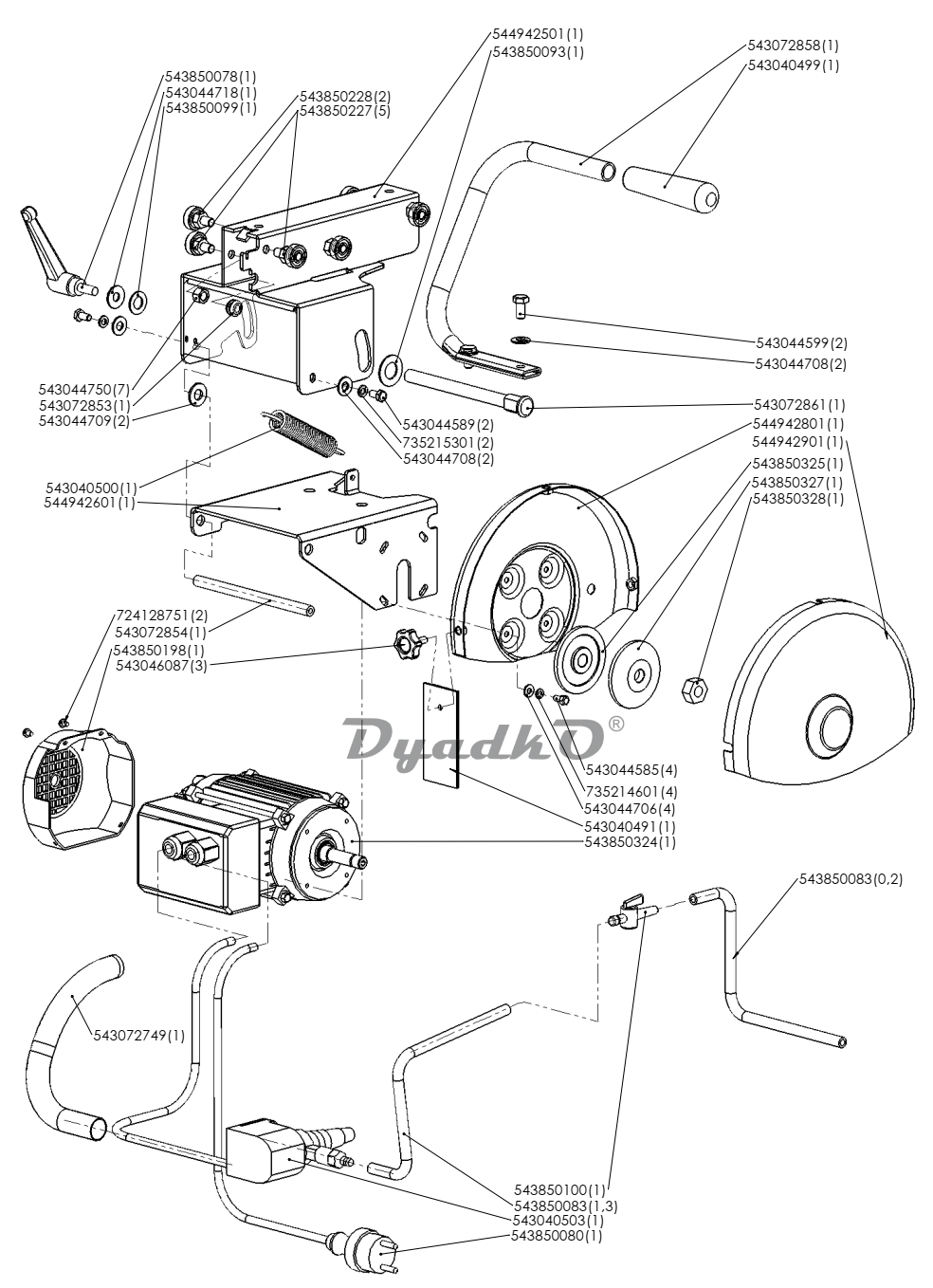

Схема HUSQVARNA TS66 R (953405103, 953405104, 965153701, 965153702, 965153703, 967185801, 953300463, 965153704, 953405102, 967303402, 967303401, 953405101, 965153705, PIM10201) 2007 Двигатель, кожух

543040485 Bearing axle
543040486 Excentric bearing axle
543040491 Small mud flap
543040499 Handle rubier
543040500 Spring
543040503 Water pump AP1200-230V
543044585 Screw TH 5x10
543044589 Screw, Hex M6X12
543044599 Screw TH 8x16
543044600 Screw TH 8x20
543044706 Washer M5
543044708 WASHER, 8
543044709 WASHER, 10
543044718 Washer Large M8
543044750 Nut HU8
543046087 Wing screw M6x16
543072749 Wire Protection
543072853 Bumper
543072854 Axle
543072858 Handle tube
543072861 Tightening rod
543850066 NUT M5
543850078 Indexable handle
543850080 Electric cord + plug
543850083 Rubber hose, o.d. 10mm x 2mm thickness
543850093 Washer 16x1,5
543850099 Washer 8x1,5
543850100 Water tap
543850198 Fan Cover
543850227 Adjustable bearing
543850228 Fixe bearing
543850229 Complete head
543850325 Internal Flange
543850327 External flange
543850328 M12 left side thread c.l 8.8
543850449 Motor 0.9 Kw-230v
544942501 Bearing support assembly
544942601 Motor support
544942801 Interior hood assy
544942901 Outside Hood
724128751 Screw M4x8 Pan head
735214601 Washer Split lock M5
735215301 Washer Split lock M6
738219804 Ball bearing 608RS
