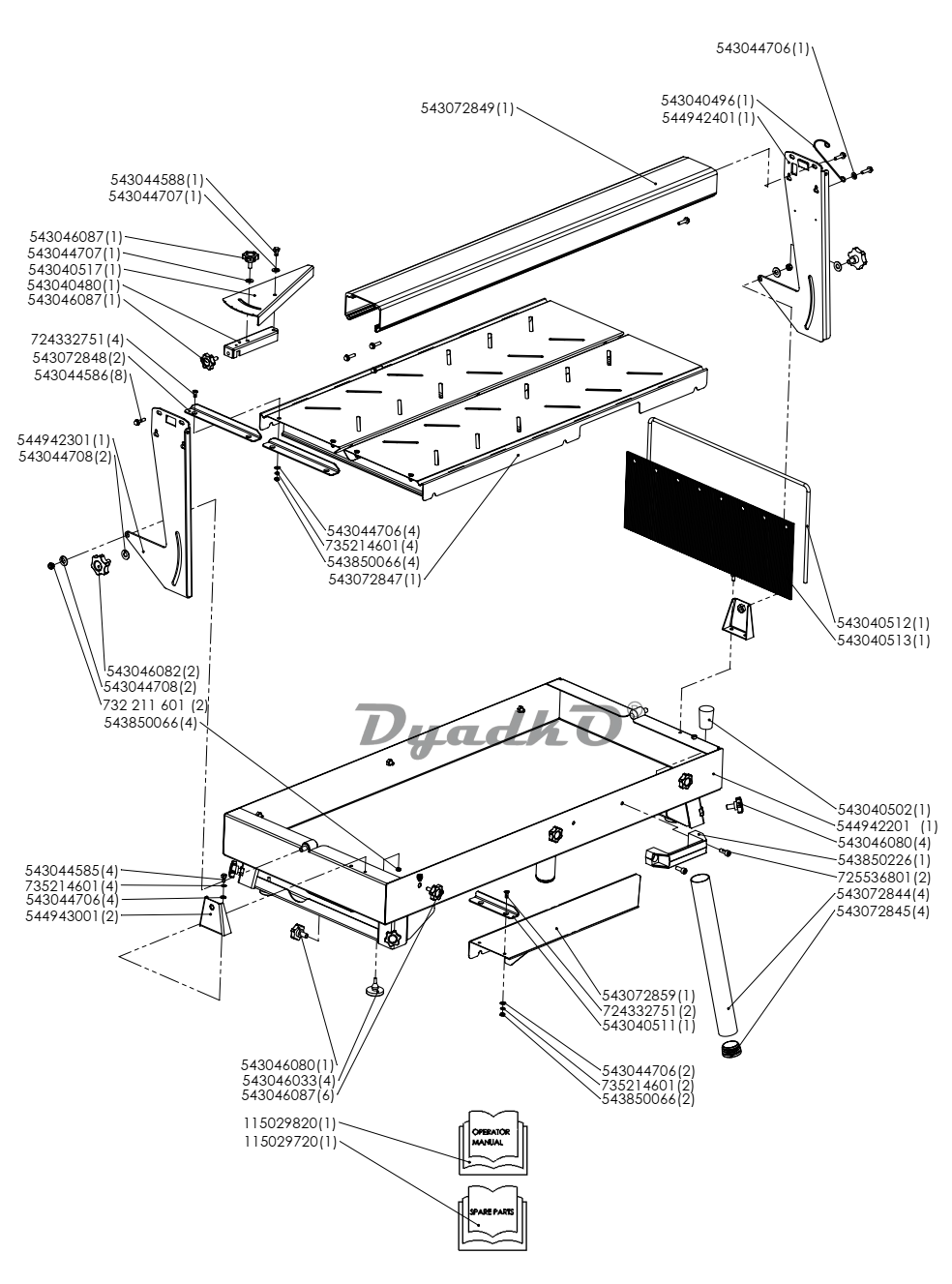

Схема HUSQVARNA TS66 R (953405103, 953405104, 965153701, 965153702, 965153703, 967185801, 953300463, 965153704, 953405102, 967303402, 967303401, 953405101, 965153705, PIM10201) 2007 Рама
| 543040480 | Right angle support |
| 543040496 | Stop wire |
| 543040502 | Plug |
| 543040511 | Short ruler |
| 543040512 | Mud flap support |
| 543040513 | Mud fla |
| 543040517 | Pivot right angle |
| 543044585 | Screw TH 5x10 |
| 543044586 | ScrewsTH 5x16 |
| 543044588 | Screw TH 6x10 |
| 543044706 | Washer M5 |
| 543044707 | Washer M6 |
| 543044708 | WASHER, 8 |
| 543044718 | Washer Large M8 |
| 543044750 | Nut HU8 |
| 543046033 | RUBBER PAD |
| 543046080 | Wing screw M8 x 20 |
| 543046082 | Wing screw M8x12 |
| 543046087 | Wing screw M6x16 |
| 543072844 | Feet d/35 |
| 543072845 | Feet pad |
| 543072847 | Table |
| 543072848 | Rule |
| 543072849 | Rail |
| 543072859 | Extension assy |
| 543850226 | Plastic handle |
| 543850447 | Spare part List |
| 543850448 | Operator’s manual |
| 544942201 | Tank assy |
| 544942301 | Right Arm |
| 544942401 | Left arm |
| 544943001 | Equiped arm support |
| 724332751 | Screw, countersink bolt M5x12 |
| 725536801 | Screw, inhex M6x16 |
| 732211801 | Nylon lock nut M8 |
| 735214601 | Washer Split lock M5 |
