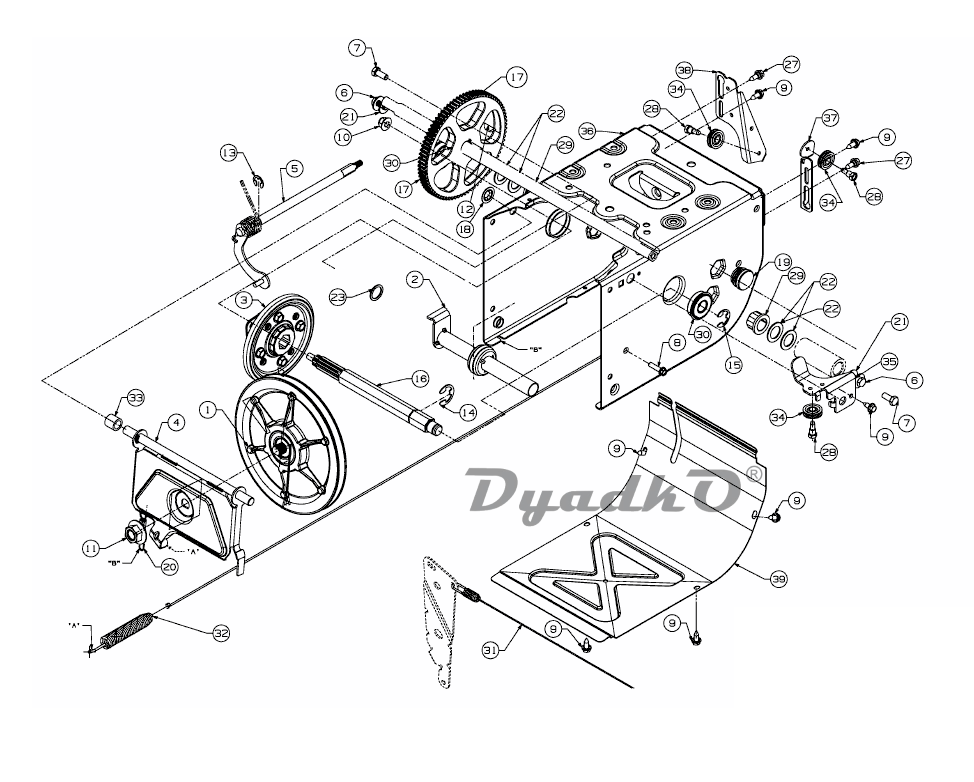

Схема MTD Optima PS 700 (2015) Control cables, Frame, Friction wheel

1 DISC ASM:WHL:FRICTION; 656-04055;
2 BRAKE AXLE LAWN SWEEPER; 681-05019;
3 WHL ASM:FRCTN WHEEL; LAGER:5.5 OD;
4 BRKT ASM:SUPT:FRCTN WHL; 684-04154B-0637;
5 SHFT ASM:ROD S/T; SCHWEISSTEIL:684-04156A-Z;
6 SCR:SEMS:5/16-24:.750:GR5; GR5 E-TEIL-SET;
7 HHCS:5/16-24:0.75:GR5:LOCK; FINISH:MTD SPEC-100015;
8 SCREW:TT:1/4-20:1.000:HXINDWSH; FINISH:MTD SPEC-100016 TYPE 1;
9 SCR:TT:1/4-20:0.62:HXINDWSH; FINISH:MTD-SPEC-100016 TYPE 1;
10 NUT:HEXFLGLK:3/8-16:GRN5:NYLON; FINISH:SPEC-100015 912-04065;
11 NUT:FLG:5/8-18; FINISH:MTD STD 701-01000;
12 KEY-HI-PRO:3/16 x 3/4 DIA; FINISH:SPEC-100015 914-0126;
13 E-RING:.500 DIA SHAFT; FINISH:ÖL BENETZT;
14 RING:RET:EXT:0.87:E-87; FINISH:PHOSPHATIERT CODE PA;
15 RING:E-TYPE:.750; FINISH:SPEC-100016 916-0231;
16 SHF:.8125 HEX - 7 TEETH; FINISH:SIEHE ZG 917-04209A;
17 GEAR:80 TOOTH; ROSTPRÄVENTION / 917-04230;
18 NUT:SPD:.500; MECHANISCH VERZINKT:SIEHE ZNG.;
19 CAP:HARDTOP:CUB 500; GPN 320 GL 32 1-2 SCHWARZ;
20 SPR:EXTN:.380 OD x 2.500 LG; FINISH:SPEC-701-01006 932-0264;
21 WASH:BLVL:0.336X0.885X0.060; FINISH:MTD SPEC-100016;
22 WASH:FLAT:.793 x 1.24 x .06:HT; FINISH:701-01001 936-0287;
23 WASH:FLAT:.75 x 1.00 x .06; FINISH:MTD 701-01000;
27 SCR:SHLDR:0.370X0.108:TT; TT:FINISH MTD SPEC-100016;
28 SCR:SHLDR:.342 X 0.330:C; 1/4-28 / FINISH: SPEC-100016;
29 BRG:HEX FLANGE x.75 ID; FINISH:SCHWARZ 941-0245;
30 BRG:BALL:17x40x12:6203:DS; 941-0563;
31 CABEL:CLUTCH:AUGER: 47.40 LG; 47.48 LG;
32 CABLE DRIVE WHEEL; 44.955 LG;
33 SPCR:.508 ID x.750 OD x.68; FINISH:ÖL IMPRÄGNIERT;
34 Guide pulley; 756-0625;
35 BRKT:GDE:AUGER CBL FRNT SUPT; VORNE:FINISH: LACKIERT;
36 HOUSING; FINISH:LACKIERT;
37 BRKT:GDE:CBL:CLU:AUGER; 790-00206B;
38 BRKT:GDE:CBL:CLU:DRIVE; 790-00207C;
39 COVER:FRM:S/T; FINISH:LACKIERT;
