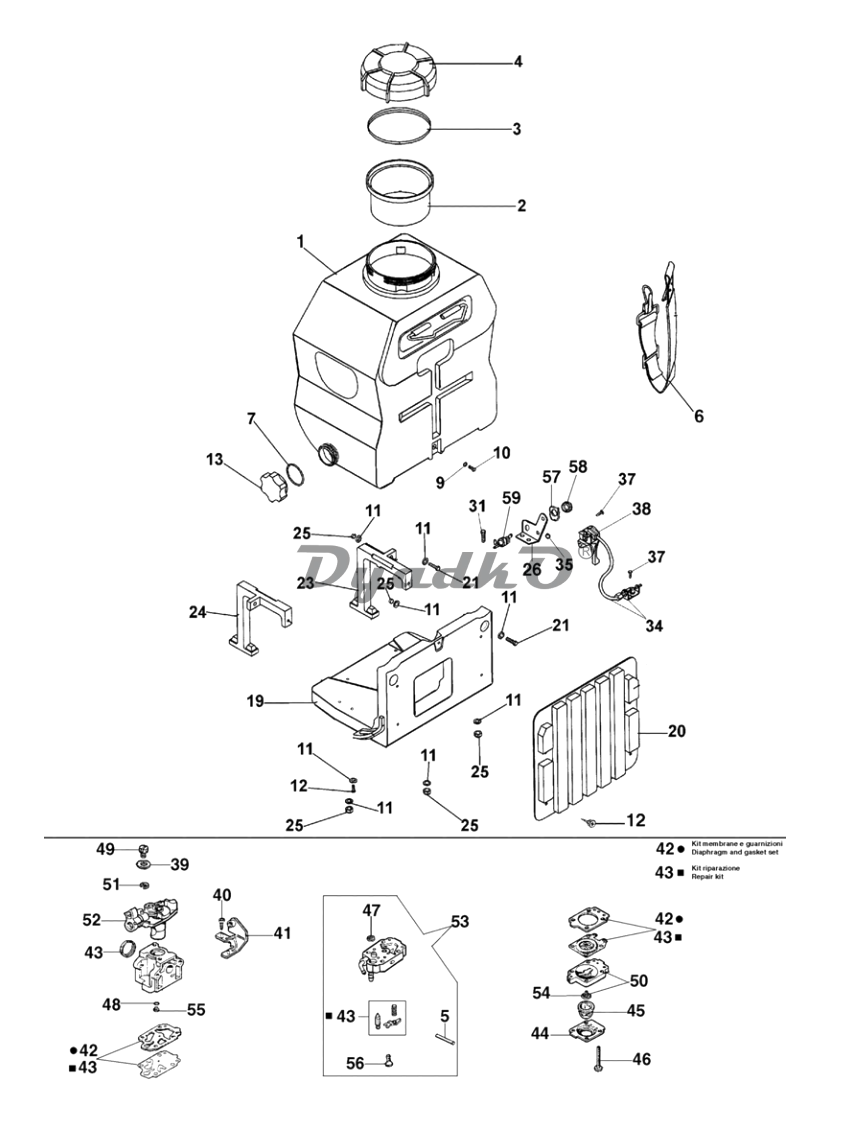

| 1 | Tank |
| 2 | Filter |
| 3 | Gasket |
| 4 | Cover |
| 5 | Spindle |
| 6 | Harness |
| 7 | Gasket |
| 9 | Washer |
| 10 | Screw |
| 11 | Washer |
| 12 | Screw |
| 13 | Cap |
| 19 | Frame |
| 20 | Padding |
| 21 | Screw |
| 23 | Support |
| 24 | Support |
| 25 | Nut |
| 26 | Bracket |
| 31 | Screw |
| 34 | Throttle cable |
| 35 | Nut |
| 37 | Screw |
| 38 | Throttle |
| 39 | Washer |
| 40 | Screw |
| 41 | Support |
| 42 | Not available for this product |
| 43 | Repair kit |
| 44 | Cover |
| 45 | Primer pump |
| 46 | Screw |
| 47 | Fuel filter |
| 48 | O-ring |
| 49 | Adjuster screw |
| 50 | Primer body |
| 51 | Ring |
| 52 | Valve |
| 53 | Pump body |
| 54 | Valve |
| 55 | Jet |
| 56 | Screw |
| 57 | Plate |
| 58 | Nut |
| 59 | Switch |
