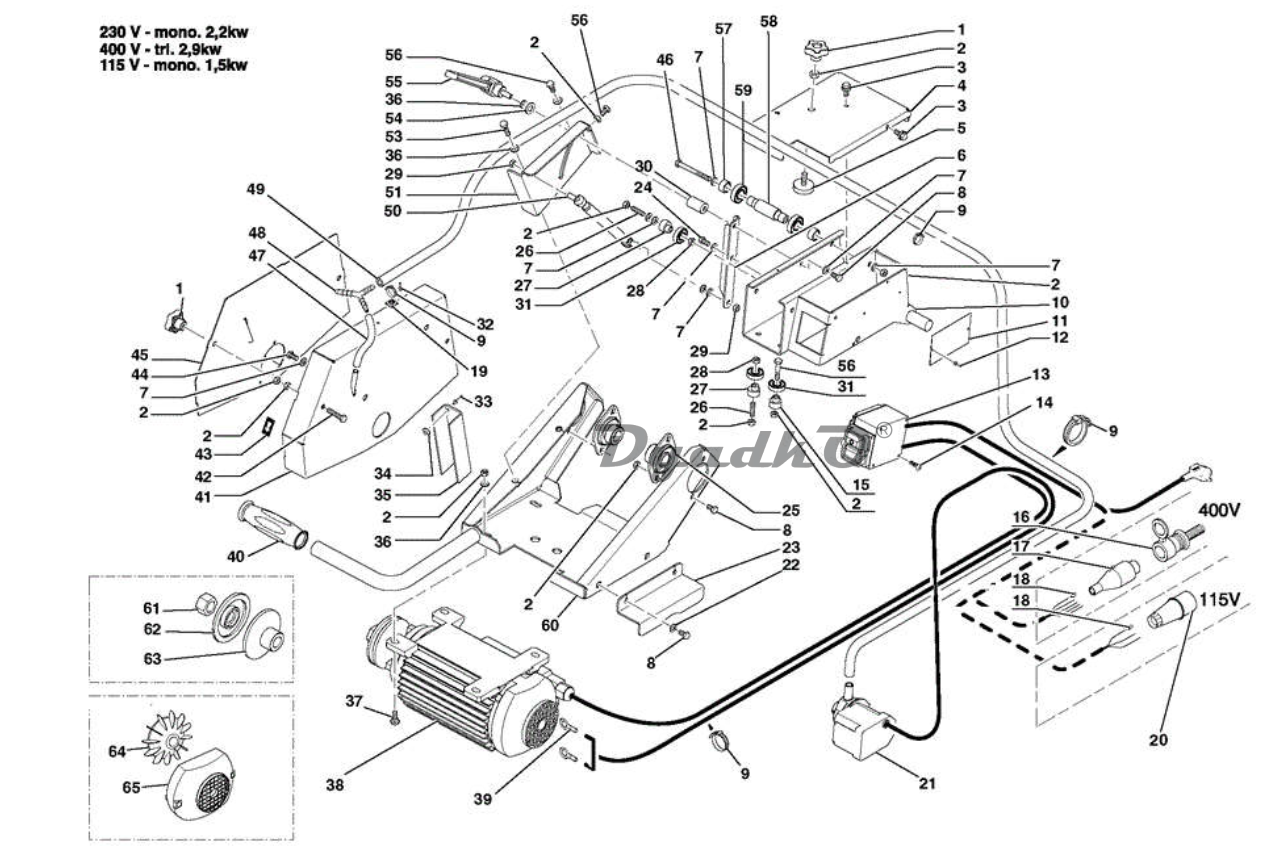

Схема HUSQVARNA TS 100 R Двигатель

1	STEERING WHEEL
2	HEXAGON NUT
3	VIS TH 8/8 5X10 BICHROM/
4	COVER
5	SUPPORT ANTIVIBRATOIRE/
6	JACK FIXATION/TS100R
7	WASHER
8	SCREW EHHM
8	SCREW EHHM
8	SCREW EHHM
9	COLLIER SES QUICK 185/46/SL-C
9	COLLIER SES QUICK 185/46/SL-C
9	COLLIER SES QUICK 185/46/SL-C
10	TROLLEY
11	NAME PLATE, EUROPE
12	RIVET
13	SWITCH
13	SWITCH
13	SWITCH 115V
14	SCREW 400V
15	BEARING SUPPORT
16	PROLONG. 3P+N+T 16A 6H/
17	FICHE 16A 380V 3P+N+T 6H/AVEC
18	COSSE EMBOUT 1.5MM/LEG 37664
18	COSSE EMBOUT 1.5MM/LEG 37664
19	COLLIER SUPPORT D/19/
20	FICHE 2P+T 32A 110V 4H/PRESSE
21	PUMP 230V 50Hz 2.5m Black TS
21	PUMP 110V 50Hz 2.5m Black TS
22	WASHER
23	PROTECTION
25	BEARING SUPPORT
26	SCREW IHSETM
27	D35
28	CIRCLIP
29	NUT
30	HEIGHT SPACER 40471/
31	BALL BEARING
32	SCREW EHHM
33	RIVET
34	RONDELLE ACIER M4 BICHRO/
35	BAVETTE TS 300E/
36	RONDELLE ACIER L8 BICHRO/
37	TBD
38	MOTOR 230v-2,2kw
38	MOTOR 400v-2,9kw
38	MOTOR 115v-1,5kw
39	COSSE BLEUE PLAG D4 BFM4/
40	HANDLE
41	BLADE GUARD
42	SCREW EHHM
43	STICKER
44	SCREW EHHM
45	BLADE GUARD
46	SCREW EHHM
47	HOSE
48	Y-COUPLING FOR HOSE
49	HOSE
50	GAS SPRING
51	ADJUSTER
53	SCREW EHHM
54	WASHER
55	HANDLE
56	SCREW EHHM
57	BEARING RING
58	BEARING SHAFT
59	BALL BEARING
60	MOTOR SUPPORT/TS350KL
61	NUT
62	FLANGE
63	FLANGE
64	FLYWHEEL
65	FAN COVER
