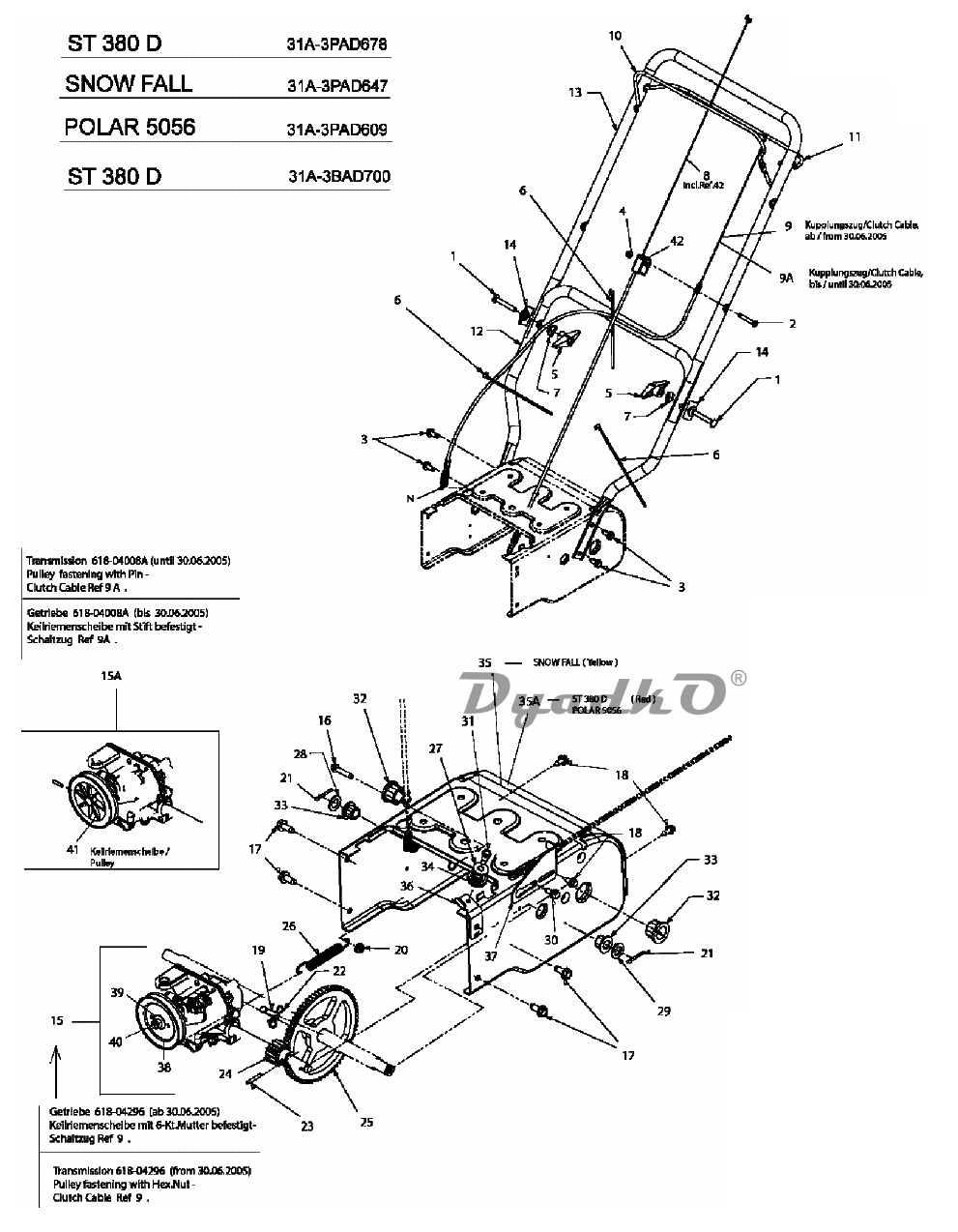

Схема MTD ST 380 D (31A-3BAD700) 2006 Gearbox, Handle

1 BOLT:CRG:5/16-18:2.50:GR1:SPEC; FINISH:MTD SPEC-100015;
2 SCR:MACH:1/4-20:1.825:OVALCSK; FINISH:701-01000;
3 SCR:TT:5/16-18:0.750:HXINDWSH; FINISH:SPEC-100016 TYPE 1;
4 NUT:HEXFLGLK:1/4-20:GRN5:NYL; FINISH:SPEC-100015 912-04064;
5 KNOB:WING:INT:5/16-18:3.00:BLK; FARBE SCHWARZ 920-0284;
6 TIE:CBL:0.05X0.18X7.56:50LB; MATERIAL:NYLON-SCHWARZ;
7 WASH:SDL:.320 x.930 x.060; FINISH:MTD SPEC-100015;
8 CABLE:CLUTCH AUGER:300 S/T; 746-04236;
9 CLUTCH CABLE 51.19" LG DR; 746-04256;
9A CABLE DRIVE CONTROL; 746-04008;
10 BAIL OPERATOR; 747-1161A-0637;
11 BAIL:DR:22" SD DIS; ;
12 HANDLE-LOWER; 749-04147;
13 Upper handle; 749-1092A;
14 CASING; 990-00053;
15 TRANSMISSION; 918-04296;
15A KIT:TRANS:SNOW 300 SERIES; 753-05146 RP 618-04008;
16 SCR:TT:1/4-20:1.25:HXINDWSH; FINISH:MTD SPEC-100016 TYPE 1;
17 SCR:TT:5/16-18:0.750:HXINDWSH; FINISH:SPEC-100016 TYPE 1;
18 SCR:TT:1/4-20:0.62:HXINDWSH; FINISH:MTD-SPEC-100016 TYPE 1;
19 PIN:CLV:0.248X1.311X0.087; FINISH:MTD SPEC-100015;
20 NUT:HEXFLGLK:1/4-20:GRN5:NYL; FINISH:SPEC-100015 912-04064;
21 PIN:COT:SPLIT:1/8 X 1.0; FINISH:MTD SPEC-100015;
22 PIN:COT:BOW-TIE:1/4" - 3/8"; FINISH:ASTM F1941 FE/ZN 3AN;
23 PIN-SPRING ROLL 5/32X1.12"; 915-0249;
24 PINION-14T; 917-04066;
25 GEAR-70T; 917-04073A;
26 SPR:EXTN:.50 DIA X 3.97 LG; FINISH:PHOSPHATE AND OIL;
27 WASH:FLAT:0.339X0.890X0.063; FINISH:MTD SPEC-100015;
28 WASH:FLAT:0.526x0.940x0.049; FINISH:MTD SPEC-100015;
29 WASH:FLAT:0.527X0.940X0.092; FINISH:MTD SPEC-100015;
30 SCR:SHLDR:0.370X0.108:TT; TT:FINISH MTD SPEC-100016;
31 HEX SCREW; 738-0924;
32 BRG:HEX FLANGE x.75 ID; FINISH:SCHWARZ 941-0245;
33 Bearing flange; .506 ID X .590 LG;
34 Guide pulley; 756-0625;
35 ________; ;
35A DRIVE WHEEL HOUSING MTD RED; 784-0419B-0638;
36 ALTERNATOR WIRE CLAMP BRACKET; 790-00223-0637;
37 BRACKET:ADJ CABLE POWDER BLACK; 790-00224-0637;
38 PULLEY; 756-04151A RP 756-04151;
39 WASH:BLVL:0.375X0.880X0.060; FINISH:MTD SPEC-100016;
40 NUT:HEXLK:5/16-24:GRN8:NYLON; FINISH:MTD SPEC-100015;
41 PULLEY-TRANS 80MM DIA PLASTIC; 956-04041;
42 WIRE CLAMP; 731-04216A;
