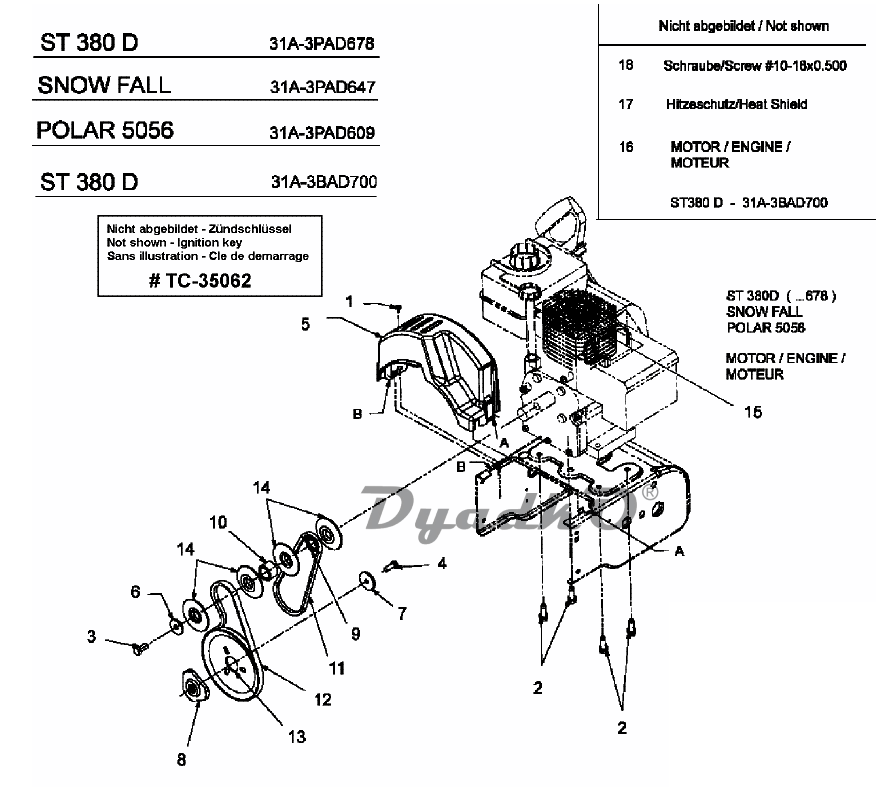

Схема (деталировка) снегоуборщики бензиновые MTD ST 380 D (31A-3BAD700) 2006 Drive system, Milling drive. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	SCR:AB:#10-16:0.50:HXINDWSH; FINISH:MTD SPEC-100016 TYPE 1;
2	SCR:TT:SEMS:3/8-16:1.00:HXLWSH; FINISH:GEOMET XL;
3	HEXAGONAL SCREW; 3/8-24X.88" *;
4	HHCS:5/16-24:0.88:GR8:LOCK; FINISH:SPEC-100015 910-1245B;
5	COVER; 931-04162A;
6	WASH:FLAT:0.401X1.280X0.157:HD; FINISH:MTD SPEC-100016;
7	WASH:FLAT:0.339X1.505X0.149:HD; FINISH:SPEC-100016;
8	ADAPTER FOR PULLEY; 948-04067;
9	DISTANCE BUSH; 950-1355;
10	DISTANCE BUSH; 950-1356;
11	BELT-V; 954-04013;
12	BELT; 954-04014 / 3/8X26.680"LG;
13	PULLEY; 956-04024;
14	DISC REVERSE; 3/8-V X 2.6;
15	ENGINE; ;
16	ENGINE; ;
17	SHLD:HEAT:SINGLE; 990-00064 SIEHE XMET;
18	SCR:BSD:#10-16:0.500:HXINDWSH; FINISH:701-01002;
