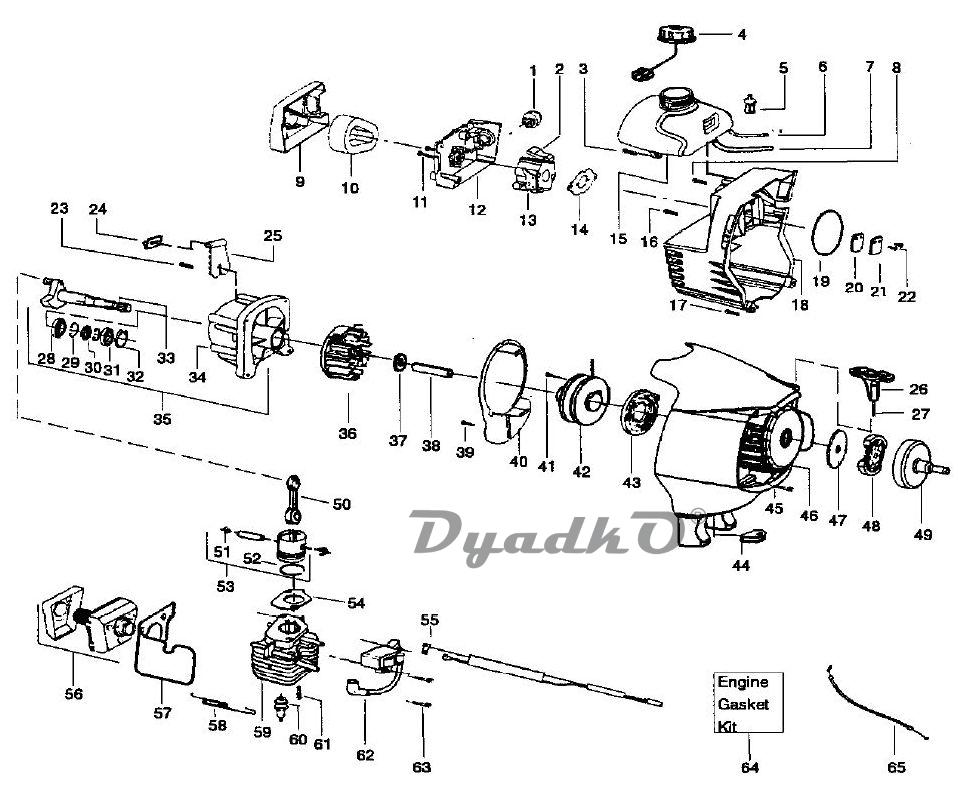

Схема (деталировка) триммеры бензиновые CRAFTSMAN 358.79580 (7958) Двигатель. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Bulb-purge
2	Kit-choke lever
3	Screw-tank
4	Cap-fuel w/ret.
5	Assembly-fuel pickup
6	Kit-fuei line
7	Kit-fuel/purge line
8	Screw
9	Cover-air box
10	Filter-air
11	Screw-carb.
12	Box-air
13	Assembly-carb (wt628)(note: repair kits are not available for this carburtor)
14	Gasket-carb.(kit)
15	Assembly-fuel tank
16	Screw-crankcase
17	Screw-shroud
18	Shroud
19	O-ring-shroud (kit)
20	Valve-reed
21	Stop-reed
22	Screw-reed stop
23	Screw-retainer
24	isolator-tank
25	Ret.-tank
26	Handle-starter
27	Kit-rope
28	Bearing-inner
29	Retainer
30	Seal
31	Bearing-outer
32	Ret.-crankshaft
33	Assembly-crankshaft
34	Assembly-crankcase
35	Assembly-crankcase/crankshaft (incl. 28-34)
36	Kit-flywheel assembly
37	Washer
38	Spacer
39	Screw-baffle
40	Plate-baffle
40	Plate-baffle
41	Screw-rope
42	Kit-pulley (incl. 41)
43	Spring-starter
44	Grommet
45	Screw-f/hsg.
46	Assembly-fan housing
47	Washer
48	Assembly-clutch
49	Drum-clutch
50	Assembly-conn. rod
51	Ret.-piston pin
52	Ring-piston
53	Kit-piston (incl. 51,52)
54	Gasket-cylinder (kit)
55	Assembly-leadwire
56	Kit-muffler
57	Shield
58	Spring-muffler
59	Kit-cylinder
60	Plug-spark (rcj-6y)(champion)
61	Bolt-cyl. 1/4-20\"
62	Module-ignition
63	Screw-module
64	Kit-gasket (incl. 14,19,54)
65	Assembly-throttle cable
Not In Dia c	Wrench-hex (5/32\")
Not In Dia g	Decal-start instruction
Not In Dia g	Decal-blade direction
Not In Dia g	Decal-shaft warning
Not In Dia g	Operator manual
