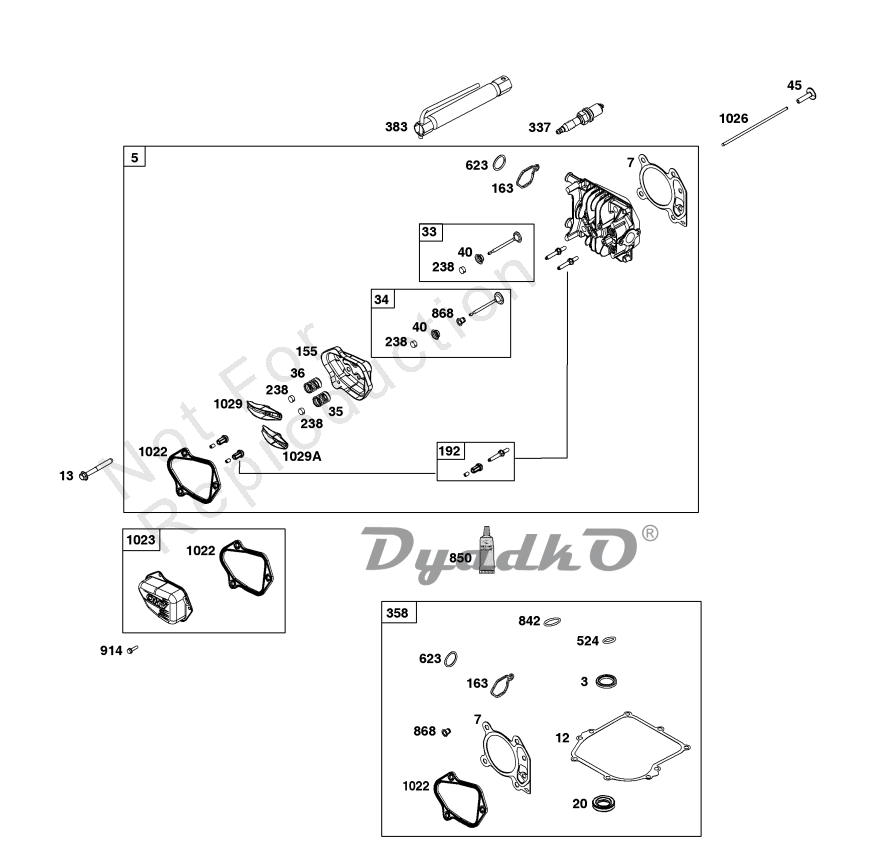

Схема (деталировка) бензиновые двигатели с вертикальным валом BRIGGS&STRATTON 09P702-0221-H5 Cylinder Head Group. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

3	SEAL, Oil-(Part information located in Cylinder Group.)
5	HEAD, Cylinder
7	GASKET, Cylinder Head
12	GASKET, Crankcase-(Part information located in Crankcase Cover/Sump and Lubrication Group.)
13	SCREW-(Cylinder Head)
20	SEAL, Oil-(Part information located in Crankcase Cover/Sump and Lubrication Group.)
33	VALVE, Exhaust
34	VALVE, Intake
35	SPRING, Valve(Intake)
36	SPRING, Valve-(Exhaust)
40	RETAINER, Valve
45	TAPPET, Valve
155	PLATE, Cylinder Head
163	GASKET, Air Cleaner-(Part information located in Carburetor Group.)
192	ADJUSTER. Rocker Arm
238	CAP, Valve
337	PLUG, Spark
358	GASKET SET, Engine-(Part information located in Crankcase Cover/Sump and Lubrication Group.)
383	WRENCH, Spark Plug
524	SEAL, O-Ring-(Part information located in Crankcase Cover/Sump and Lubrication Group.)
623	SEAL, O-Ring-(Part information located in Carburetor Group.)
842	SEAL, O-Ring-(Part information located in Crankcase Cover/Sump and Lubrication Group.)
850	SEALANT, Liquid-(Part information located in Cylinder Group.)
868	SEAL, Valve
914	SCREW-(Rocker Cover)
1022	GASKET, Rocker Cover
1023	COVER, Rocker
1026	ROD, Push
1029	ARM, Rocker
1029A	ARM, Rocker
