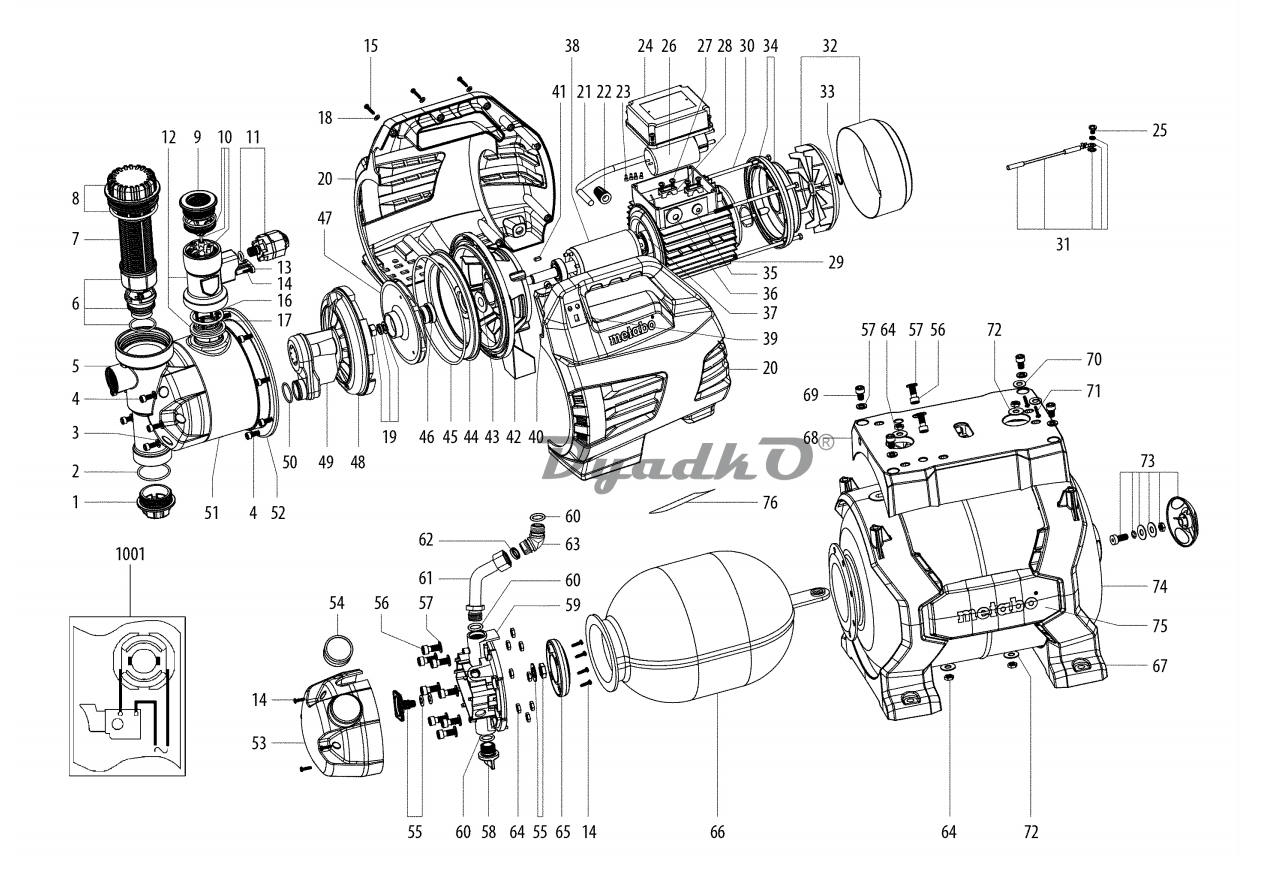

Схема METABO HWWI 3500/25 Inox (00970000)

1	Cover
2	O-ring
3	Washer
4	Screw
5	PUMP HEAD
6	CHECK VALV compl.
7	Filter
8	Filtre cover compl.
9	Connector
10	FLOW PROTECTION cpl.
11	pressure sensor cpl.
12	Clamping piece cpl.
13	sensor
14	Screw
15	Screw
16	O-ring
17	Screw
18	Washer
19	clamp kit cpl. (impeller)
20	Housing compl.
21	Cable
22	Cable sleeve
23	Cable binder
24	LID, TERMINAL BOX
25	Screw
26	Condenser compl. 16µF/450 V
27	Screw self-tapping
28	Cable clip
29	Stator compl.
30	Screw
31	Cable compl.
32	Fan with fan cover
33	Circlip
34	Motor flange compl.
35	Cable sleeve
36	Cable sleeve
37	Ball bearing
38	ARMATURE
39	Switch
40	Printed circuit
41	Slide block
42	Motor flange
43	Sealing washer
44	Flange
45	O-ring
46	Gasket
47	Wheel
48	DIFFUSOR
49	Tube (f. valve)
50	O-ring
51	Pump housing
52	O-ring
53	Cover, outer
54	Manometer
55	Sealing set compl.
56	Hexagon head screw
57	Washer
58	THREADED PLUG
59	Cover f. flange
60	O-ring
61	PRESSURE HOSE
62	Gasket
63	Angle
64	Nut
65	Filter (flange)
66	RUBBER BAG
67	Connector (f. tank)
68	PUMP BASE
69	Screw
70	Washer
71	Screw
72	Washer
73	VALVE SET compl.
74	Tank
75	Connector (f. frame)
76	Rating plate
77	FILTER WRENCH
1001	Wiring diagram
