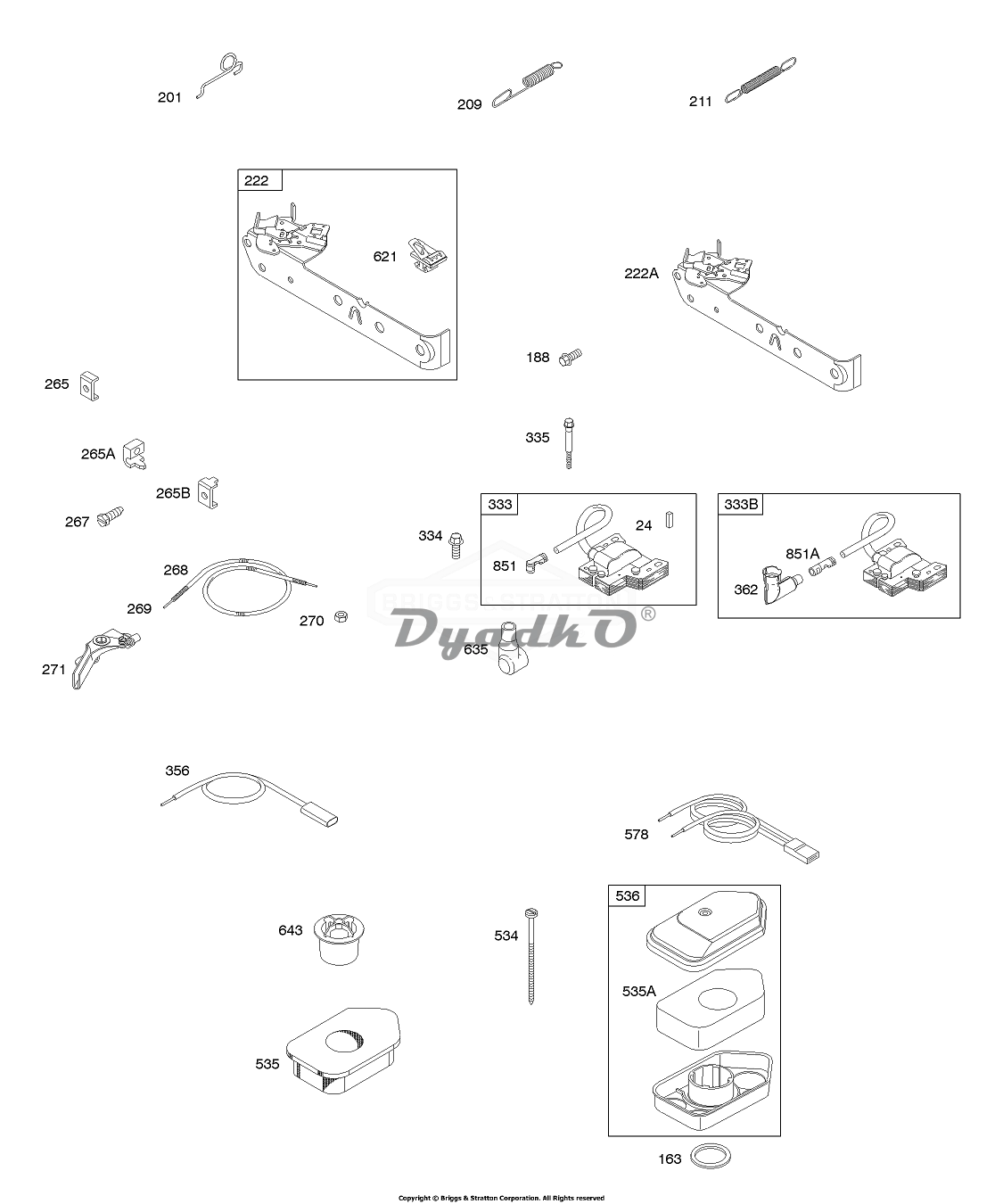

Схема (деталировка) бензиновые двигатели с вертикальным валом BRIGGS&STRATTON 10D902-0180-B1 Air Cleaner, Controls, Governor Spring, Ignition. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

24	KEY, Flywheel; ;
163	GASKET, Air Cleaner; (Air Cleaner);
188	SCREW; (Control Bracket);
201	LINK, Air Vane; ;
209	SPRING, Governor; (Light Blue);
211	SPRING, Governed Idle; ;
222A	BRACKET, Control; ;
265A	CLAMP, Casing; ;
267	SCREW; (Casing Clamp);
268	CASING, Control Wire; (72" Long)(Cut To Required Length);
269	WIRE, Control; (78" Long)(Cut To Required Length);
270	NUT; (Control Wire Casing);
271	LEVER, Control; ;
333B	ARMATURE, Magneto; ;
334	SCREW; (Magneto Armature) (1" Long);
335	SCREW; (Magneto Armature With Air Vane) (1 15/16 );
356	WIRE, Stop; ;
362	SHIELD, Spark Plug; ;
534	SCREW; (Air Cleaner);
535	FILTER, Air Cleaner Foam; Used Before Code Date 02110600;
535A	FILTER, Air Cleaner Foam; Used After Code Date 02110500;
536	CLEANER, Air; ;
621	SWITCH, Stop; ;
635	BOOT, Spark Plug; ;
643	RETAINER, Air Filter; Used Before Code Date 02110600;
851	TERMINAL, Spark Plug; ;
851A	TERMINAL, Spark Plug; ;
