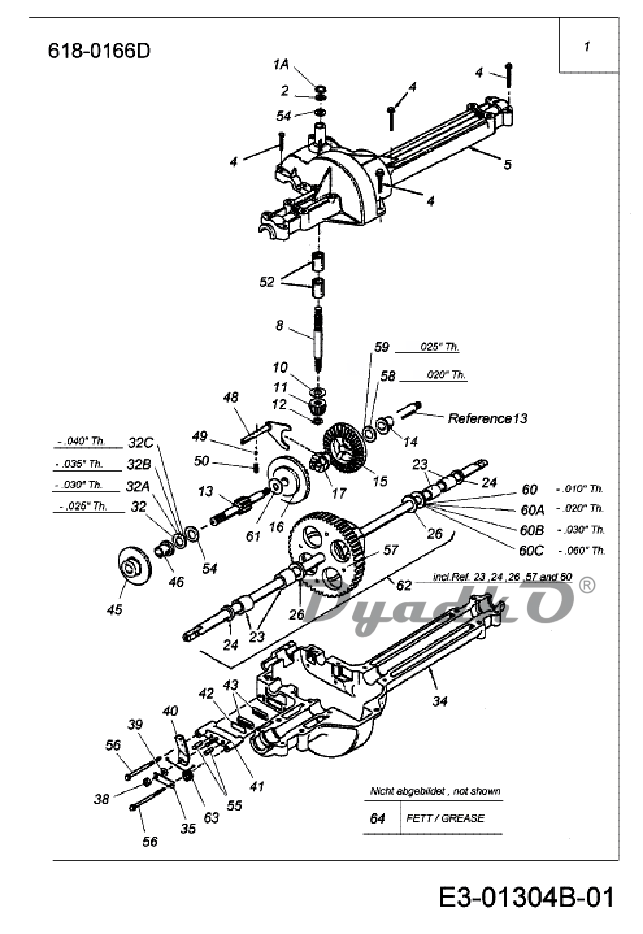

Схема MTD TA 4120 (2005) Gearbox 618-0166D

1 TRANSMISSION CPL.; HINTERACHSE;
1A Circlip; FINISH:ZINC PHOSPHATE;
2 RING:E-TYPE:.750; FINISH:SPEC-100016 916-0231;
4 SCR:TT:1/4-20:1.63:HXINDWSH; FINISH:SPEC-100016 TYPE 1;
5 HOUSING HALF; OBEN;
8 INPUT SHAFT; FINISH:SIEHE ZG.;
10 WASH:THRST:0.630X1.255X0.062; FINISH:SIEHE ZG.;
11 PINION INPUT 14T; FINISH:HITZEBEHANDELT;
12 RING:RET:EXT:0.43:SH-43; FINISH:PHOSPATIERT 916-0108;
13 DRIVE SHAFT - LH BRAKE; 711-1016/911-1016;
14 FLANGE BEARING; FINISH:SIEHE ZG. 941-0336;
15 PINION 42 T., SM. BORE HOLE; 717-1362 / 917-1362 *;
16 PINION 42 T., BIG BORE HOLE; 717-1363/917-1363 *;
17 HINGE PIN; 718-0228;
23 BRG:SLEEVE:.75 x 1.00 x 1.00; ÖLIMRÄGNIERT EXXON 941-0340;
24 OIL SEAL:.75x1.00x.125; .75 x 1.00 x .125:FINISH STD;
26 WASH:THRST:.760 x 1.500 x.060; FINISH:MTD SPEC-100016;
32 WASH:SHIM:0.627X1.010X0.025:HD; FINISH:SIEHE ZG. 936-0495;
32A WASH:FLAT:16x22x1 DIN 988; 24.6273.68;
32B WASH:SHIM:0.627X1.010X0.036:HD; FINISH:MTD SPEC-100016;
32C WASH:SHIM:.634x1.000x.040:HD; MTD STD 701-01001 936-0337;
34 LOWER HOUSING HALF; UNTEN;
35 BRACKET-ANTI ROTATION; FINISH:SPEC-100015;
38 NUT:HEXLK:5/16-24:GRN2:NYLON; FINISH:MTD SPEC-100015;
39 WASH:THRST:0.338X0.885X0.062; FINISH:MTD SPEC-100016;
40 LEVER, PARK BRAKE ENGAGEMENT; FINISH:PHOSPHATE & OIL;
41 BRAKE YOKE; FINISH:NONE 961-0198A;
42 PLATE-PUCK; FINISH:NONE 917-0682;
43 BRAKE CORK; FINISH:;
45 BRAKE DISC; FINISH:ÖL UND FETTFREI;
46 FLANGE BEARING; 941-0337;
48 SHF ASM:DETENT; FINISH: 911-0011;
49 BALL:DETENT:.250 DIA; FINISH: SIEHE ZG.;
50 COMPRESSION SPRING; FINISH: PHOS & OIL 932-0863;
52 BEARING-NEEDLE:.625X.813X.495; FINISH:SIEHE ZG. 941-0335;
54 WASH:SHIM:0.627X1.005X0.020:HD; FINISH:SIEHE ZG.;
55 ACTUATING PIN 5/16 DIA; FINISH:SIEHE ZG. 941-0343;
56 SCR:TT:1/4-20:2.38:HXINDWSH; FINISH:MTD SPEC-100016 TYPE 1;
57 GEAR-DIFFERENTIAL 58 TEETH; 717-1364 / E-TEIL-SET;
58 WASH:SHIM:0.627X1.005X0.020:HD; FINISH:SIEHE ZG.;
59 WASH:SHIM:0.627X1.010X0.025:HD; FINISH:SIEHE ZG. 936-0495;
60 WASH:SHIM:0.755X1.505X0.010:HD; FINISH:MTD SPEC-100016;
60A WASH:SHIM:0.755X1.505X0.022:HD; FINISH:MTD SPEC-100016;
60B WASH:SHIM:0.755X1.505X0.030:HD; FINISH:MTD SPEC-100016;
60C WASH:THRST:.760 x 1.500 x.060; FINISH:MTD SPEC-100016;
61 WASH:THRST:0.697X1.130X0.031; FINISH:WET TUMBLE 936-0519;
62 DIFFERENTIAL ASSEMBLY; 918-04093A;
63 SPR:TORSION .75 OD X3 COILS-LH; FINISH:ZINC PHOS&OIL 932-0743;
64 GREASE; DURAPLEX EP00;
