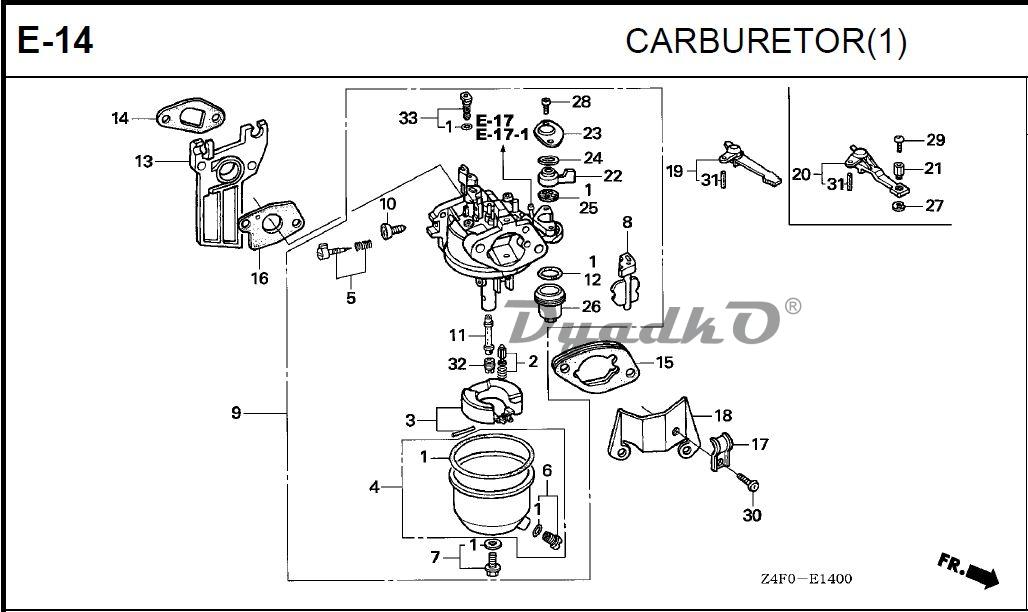

Схема HONDA GX120 U1 КАРБЮРАТОР 1
1
GASKET SET
2
VALVE SET, FLOAT
3
FLOAT SET
4
CHAMBER SET, FLOAT
5
SCREW SET, PILOT
6
SCREW SET, DRAIN
7
SCREW SET
8
CHOKE SET
9
CARBURETOR ASSY. (BE60F B)
10
SCREW, THROTTLE STOP
11
NOZZLE, MAIN
12
PACKING, FUEL STRAINER CUP
13
INSULATOR, CARBURETOR
14
PACKING, INSULATOR
15
SPACER COMP., CARBURETOR
16
PACKING, CARBURETOR
17
HOLDER, CONTROL CABLE
18
STAY, CHOKE CONTROL
19
LEVER COMP., CHOKE (STD.)
20
LEVER COMP., CHOKE (REMOTE)
21
HOLDER, CABLE
22
LEVER, COCK
23
PLATE, LEVER SETTING
24
SPRING, COCK LEVER
25
PACKING, FUEL COCK
26
CUP, FUEL STRAINER
27
CIRCLIP, 5MM
28
SCREW, PAN, 3X6
29
SCREW, PAN, 4X8
31
PIN, SPRING, 2X12
32
JET, MAIN, #55
33
JET SET, PILOT, #35
40
SCREW, PAN, 5X8
JET SET, PILOT, #38
CARBURETOR ASSY. (BE61G A)
CARBURETOR ASSY. (BE61D B)
CARBURETOR ASSY. (BE60C B)
CARBURETOR ASSY. (BE60B B)
GASKET SET
JET, MAIN, #58
JET, MAIN, #60
(1) JET, MAIN, #62
NOZZLE, MAIN
