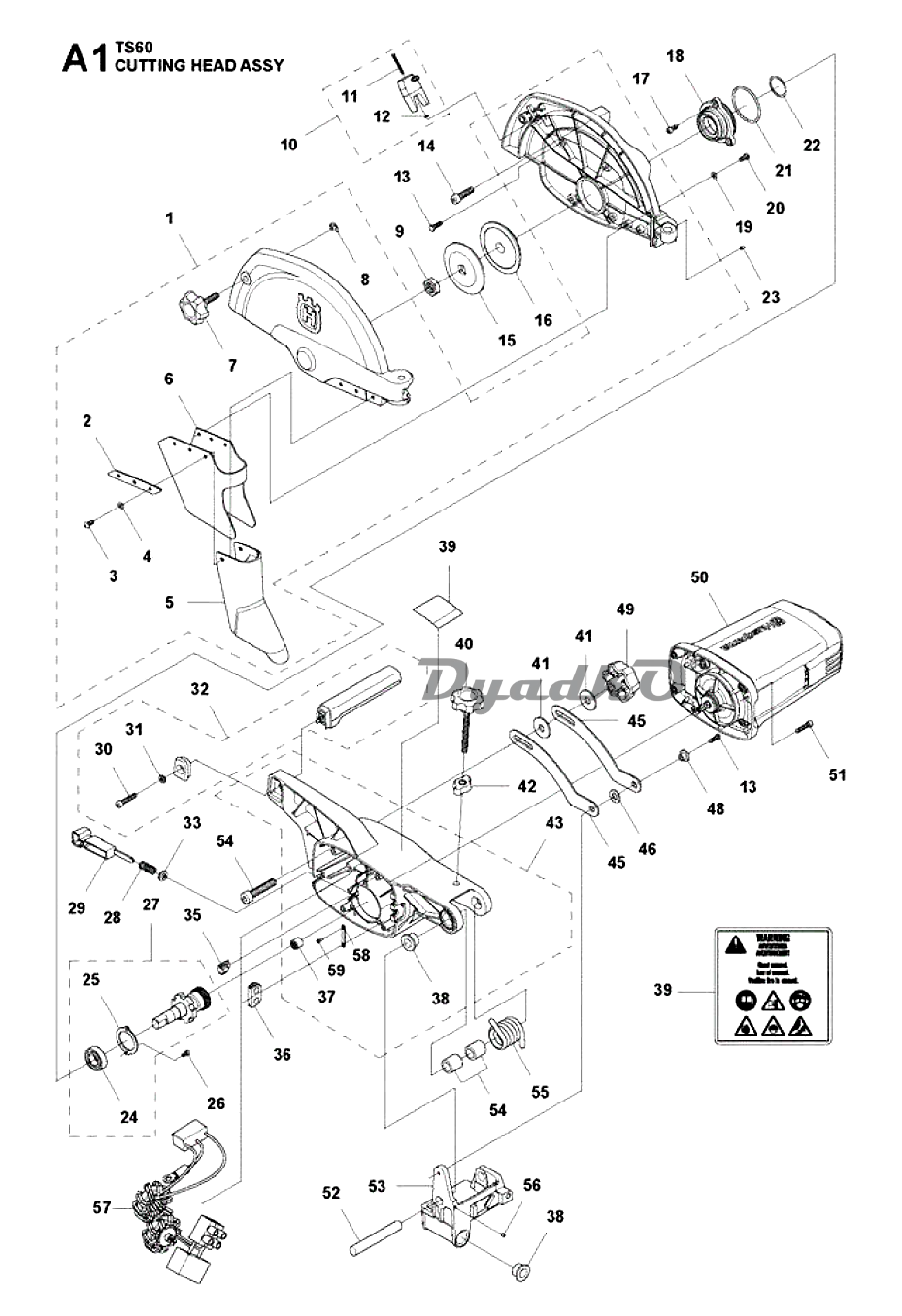

| 1 | BLADE GUARD KIT |
| 2 | PLATE |
| 3 | SCREW IHPANM |
| 4 | WASHER |
| 5 | SPLASH GUARD REAR |
| 6 | SPLASH GUARD SIDE |
| 7 | KNOB |
| 8 | E-CLIP |
| 9 | NUT |
| 10 | NOZZLE KIT |
| 11 | CHAIN |
| 12 | HEXAGON NUT |
| 13 | SCREW EHHM |
| 14 | SCREW IHSCM |
| 15 | FLANGE |
| 16 | FLANGE US, arbor size 5/8 inch / 16 mm |
| 16 | FLANGE Non US, arbor size 25.4 mm |
| 17 | SCREW IHSCM |
| 18 | BEARING HOUSING |
| 19 | WASHER |
| 20 | SCREW IHPANM |
| 21 | O-RING |
| 22 | GASKET |
| 23 | SCREW IHSETM |
| 24 | BALL BEARING |
| 25 | LOCKING PLATE |
| 26 | SCREW IHSCM |
| 27 | SHAFT OUTPUT ASSY |
| 28 | SPRING |
| 29 | BUTTON |
| 30 | SCREW IHSCM |
| 31 | WASHER |
| 32 | HANDLE KIT KIT |
| 33 | WASHER |
| 35 | SEAL |
| 36 | SEAL 120V |
| 36 | SEAL 230V |
| 37 | NEEDLE BEARING |
| 38 | BUSHING |
| 39 | DECAL |
| 39 | DECAL Only for Canada |
| 40 | KNOB |
| 41 | WASHER |
| 42 | KNOB |
| 43 | ARM |
| 45 | BRACKET |
| 46 | WASHER |
| 48 | BUSHING |
| 49 | KNOB |
| 50 | MOTOR ASSY 230V |
| 50 | MOTOR ASSY 120V |
| 51 | SCREW IHSCM |
| 52 | BRACKET |
| 53 | BRACKET |
| 54 | SPACER |
| 55 | SPRING |
| 56 | SCREW IHSETM |
| 57 | FILTER KIT (NOT US) |
| 58 | CABLE CLAMP |
| 59 | SCREW IHSCM |
