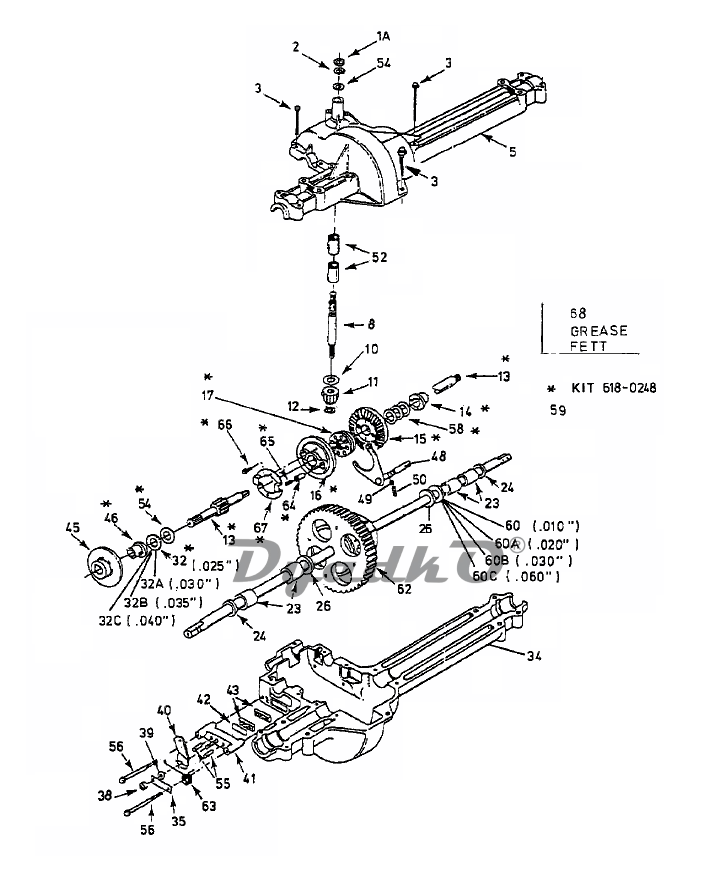

Схема YARD-MAN DX 70 (2006) Gearbox

1 KIT-CHAIN CASE 618-0251A/918-0251A
1A Circlip FINISH:ZINC PHOSPHATE
2 RING:E-TYPE:.750 FINISH:SPEC-100016 916-0231
3 SCR:TT:1/4-20:1.63:HXINDWSH FINISH:SPEC-100016 TYPE 1
5 UPPER HOUSING HALF 618-0072B/918-0072B incl. Ref. 1, 2, 8, 10-12, 32, 52, 54
8 INPUT SHAFT FINISH:SIEHE ZG.
10 WASH:THRST:0.630X1.255X0.062 FINISH:SIEHE ZG.
11 PINION INPUT 14T FINISH:HITZEBEHANDELT
12 RING:RET:EXT:0.43:SH-43 FINISH:PHOSPATIERT 916-0108
13 DRIVE SHAFT L.H. (BRAKE) 711-1110
14 FLANGE BEARING FINISH:SIEHE ZG. 941-0336
15 GEAR BEVEL 42T 717-1460
16 GEAR BEVEL 42T 717-1467
17 CLUTCH DISK ASSY 718-0314
23 BRG:SLEEVE:.75 x 1.00 x 1.00 ÖLIMRÄGNIERT EXXON 941-0340
24 OIL SEAL:.75x1.00x.125 .75 x 1.00 x .125:FINISH STD
26 WASH:THRST:.760 x 1.500 x.060 FINISH:MTD SPEC-100016
32 WASH:SHIM:0.627X1.010X0.025:HD FINISH:SIEHE ZG. 936-0495
32A WASH:SHIM:.625x1.000x.030:HD ZINC SIEHE ZG.
32B WASH:SHIM:0.627X1.010X0.036:HD FINISH:MTD SPEC-100016
32C WASH:SHIM:.634x1.000x.040:HD MTD STD 701-01001 936-0337
34 LOWER HOUSING HALF UNTEN
35 BRACKET-ANTI ROTATION FINISH:SPEC-100015
38 NUT:HEXLK:5/16-24:GRN2:NYLON FINISH:MTD SPEC-100015
39 WASH:THRST:0.338X0.885X0.062 FINISH:MTD SPEC-100016
40 LEVER, PARK BRAKE ENGAGEMENT 717-0772A
41 BRAKE ASM:YOKE:LH FINISH: incl. Ref. 35,38-40,42,43,55,63
42 PLATE-PUCK FINISH:NONE 917-0682
43 BRAKE CORK FINISH:
45 BRAKE DISC FINISH:ÖL UND FETTFREI
46 FLANGE BEARING 941-0337
48 SHAFT ASSY. 611-0114
49 BALL:DETENT:.250 DIA FINISH: SIEHE ZG.
50 COMPRESSION SPRING FINISH: PHOS & OIL 932-0863
52 BEARING-NEEDLE:.625X.813X.495 FINISH:SIEHE ZG. 941-0335
54 WASH:SHIM:0.627X1.005X0.020:HD FINISH:SIEHE ZG.
55 ACTUATING PIN 5/16 DIA FINISH:SIEHE ZG. 941-0343
56 SCR:TT:1/4-20:2.38:HXINDWSH FINISH:MTD SPEC-100016 TYPE 1
58 WASH:SHIM:0.627X1.005X0.020:HD FINISH:SIEHE ZG.
58A WASH:SHIM:0.627X1.010X0.025:HD FINISH:SIEHE ZG. 936-0495
59 SHAFT ASSY. LEFT - BRAKE DRIVE 618-0248 MIT 718-0321+718-0311
60 WASH:SHIM:0.755X1.505X0.010:HD FINISH:MTD SPEC-100016
60A WASH:SHIM:0.755X1.505X0.022:HD FINISH:MTD SPEC-100016
60B WASH:SHIM:0.755X1.505X0.030:HD FINISH:MTD SPEC-100016
60C WASH:THRST:.760 x 1.500 x.060 FINISH:MTD SPEC-100016
62 DIFFERENTIAL ASSY 618-0232/918-0232 incl. Ref. 23,24,26,60
63 SPR:TORSION .75 OD X3 COILS-LH FINISH:ZINC PHOS&OIL 932-0743
64 PIN 6X40 718-0311
65 BUTTON SPRING 732-0590A
66 SCREW:TT:1/4-20:0.375:HXINDWSH FINISH:MTD SPEC-100016
67 нет описания
68 GRES:DARINA:TRANS
