LME 3816

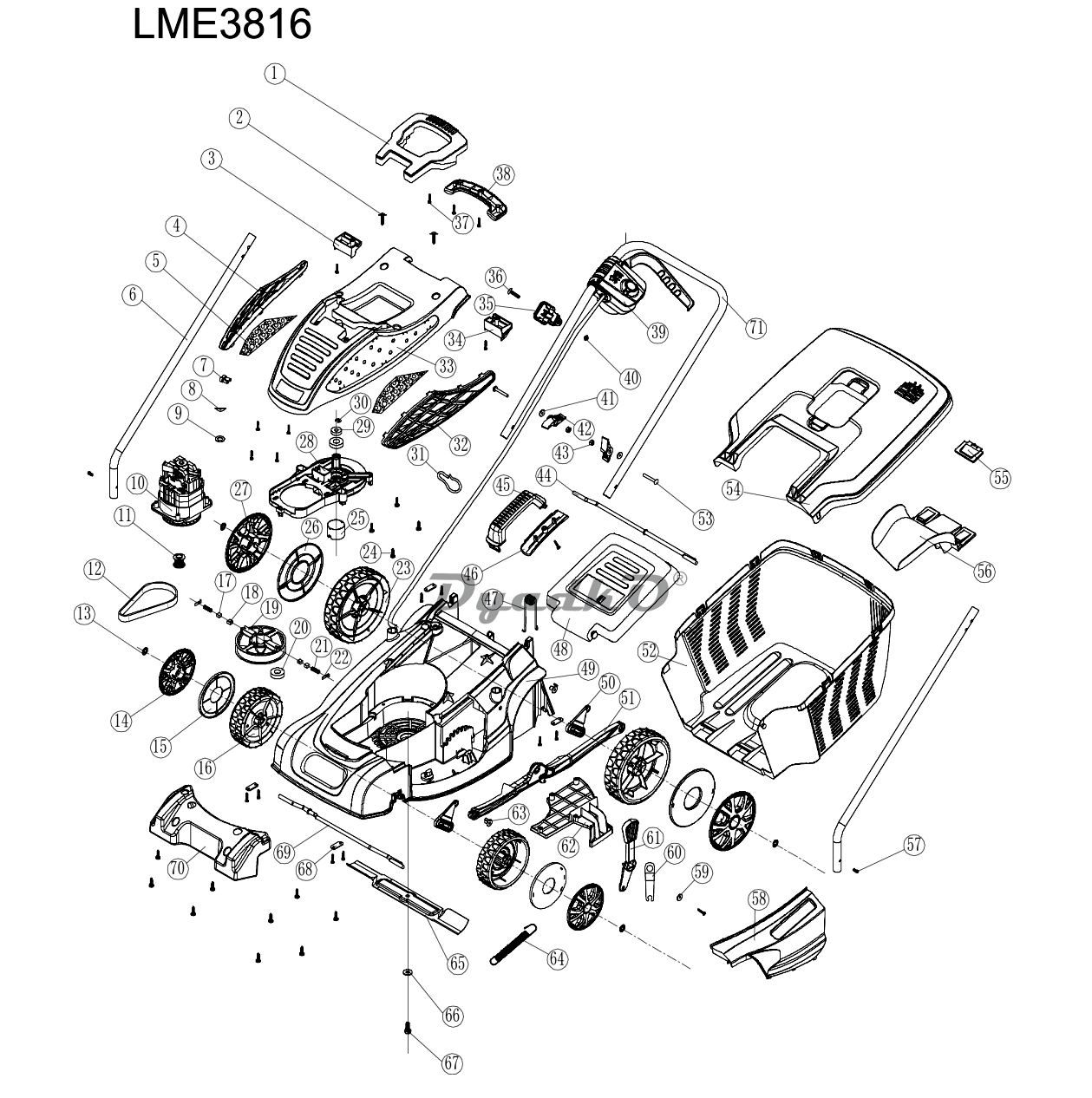

Схема DDE LME 3816
1
safety flap PP
2
bolt ST4X16
3
Right cover washer PP
4
Right decorate cover ABS
5
filter
6
lower handle Q195
7
impaction cup
8
star lock 04.5
9
washer
10
motor 0048GCa
11
motor pulley 45 U
12
belt 7PJ451
13
star lock domed 65Mn/®Ј
14
wheel cover PP
15
wheel cover beset PP
16
wheel PP
17
block brake 08F
18
cork brake
19
pulley insert mould
20
bearing 6002
21
spring brake 70C
22
patch brake 40Mn
23
wheel PP
24
bolt ST5X20
25
ring brake Q195
26
Back wheel cover beset
27
wheel cover PP
28
motor plate PA66-GP5C
29
bearing 609 Z
30
circlip 08
31
cable hook PA6-GF30
32
Left decorate cover ABS
33
cover PP
34
Left cover washer PP
35
hook ABS
36
bolt M5X16
37
bolt ST4X16
38
cover handle PP
39
switchbox components
40
nut M5
41
washer 015X06
42
knob module PP
43
nut M6
44
rear wheel axes Q235
45
grassbox handle PP
46
grassbox handle cover PP
47
spring flap 700
48
cover handle cover PP
49
deck PP(AI191)
50
set square PA6-GF30
51
move pole ABS
52
grassbox PP(AW191)
53
bolt M6X45
54
grassbox cover PP(AW191)
55
grass show PP
56
tongue PP(AW191)
57
bolt M4X10
58
move cover PP
59
washer
60
move spring
61
move flap POM
62
deck cover PP(AW191
63
move axes POM
64
move spring 70C
65
blade 40Mn
66
washer 65Mn
67
bolt M8X20
68
washer 40Mn
69
front wheel axes Q235
71
upper handle Q195
block
