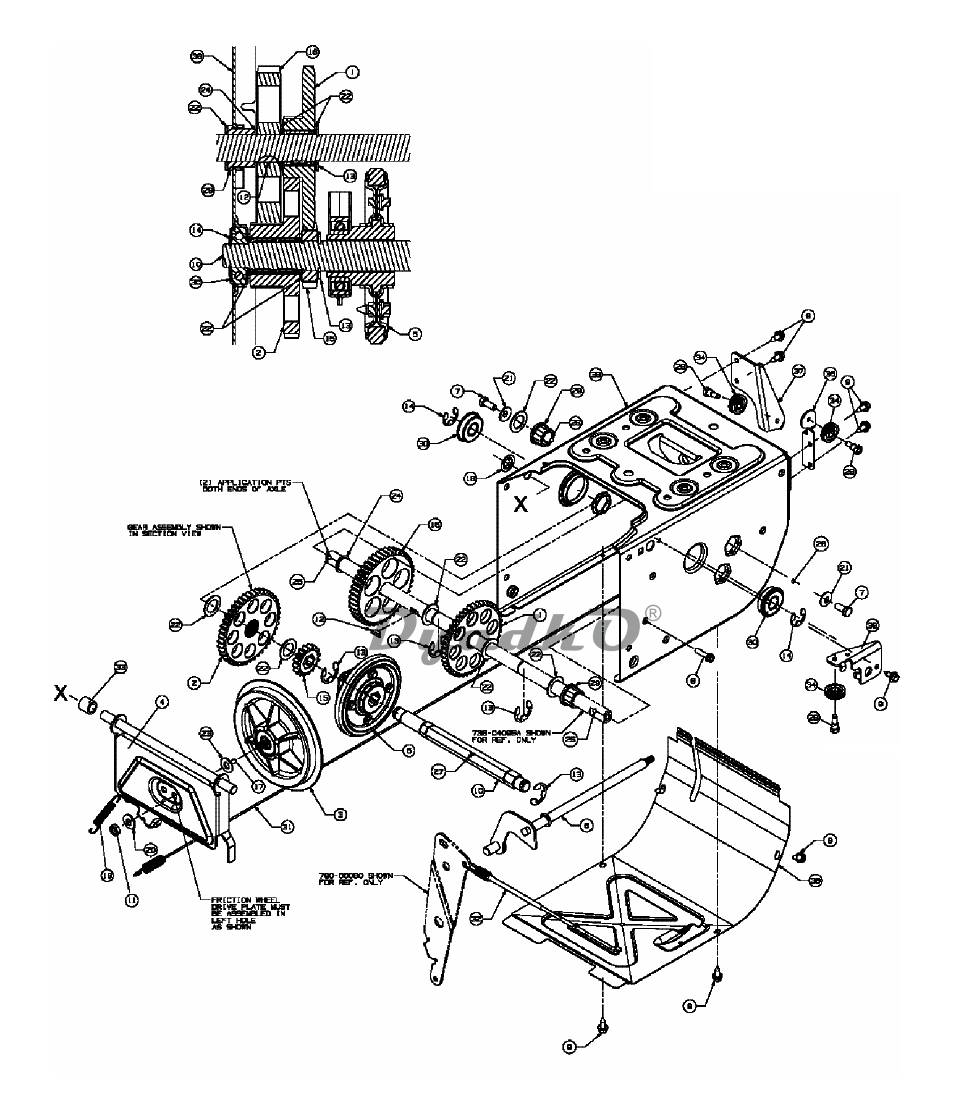

Схема MTD E 660 G (31AV6LHG678) (2007) Drive system

1 GEAR ASM 16/44 T 917-04025
2 GEAR ASM 16/44 T 917-04026
3 DISC-ASSY FRICTION 656-04024
4 нет описания
5 DRIVEN DISC 984-04066
6 SHIFT ASSY, ROD 684-04139A
7 HHCS:5/16-24:0.75:GR5:LOCK FINISH:MTD SPEC-100015
8 SCREW:TT:1/4-20:1.000:HXINDWSH FINISH:MTD STD 701-01002
9 SCR:TT:1/4-20:0.62:HXINDWSH FINISH:MTD-SPEC-100016 TYPE 1
10 AXLE 911-04246A
11 NUT:JAM:3/8-24:GR5 MTD SPEC-100015 912-0711
12 KEY:HI-PRO:3/16 x 5/8 714-0161/914-0161
13 RING:RET:TYPE-E .875 DIA FINISH:PHOSPHATIERT / WELLE
14 RING:E-TYPE:.750 FINISH:SPEC-100016 916-0231
15 GEAR-PINION 16 T SNOWTHROWER 717-04129A
16 GEAR 44T 717-04137A
17 LOCTITE #271
18 NUT:SPD:.500 FINISH:ASTM F1137 GRADE D
19 SPR:EXTN:.380 OD x 2.500 LG FINISH:SPEC-701-01006 932-0264
20 WASH:BLVL:0.375X0.880X0.060 FINISH:MTD SPEC-100016
21 WASH:BLVL:0.336X0.885X0.060 FINISH:MTD SPEC-100016
22 WASH:FLAT:.793 x 1.24 x .06:HT FINISH:701-01001 936-0287
23 WASH:FLAT:0.396X0.885X0.060 FINISH:MTD SPEC-100015
24 WASH:FLAT:.75 x 1.00 x .06 FINISH:MTD 701-01000
25 GREASE-NEVER SEIZE (ANTI-SEIZE Dose 500 G
26 GREASE-ARCTIC:EP NLGI 1-58F 737-0318
27 нет описания
28 SCR:SHLDR:.340x.355xC:1/4-28 1/4-28 / FINISH: VERZINKT
29 BRG:HEX FLANGE x.75 ID FINISH:SCHWARZ 941-0245
30 BRG:BALL:17x40x12:6203:DS 941-0563
31 CABLE-DRIVE 746-04086
32 CBL:CLU:X 44.75 AUGER 946-0897 SCHLEUDERRAD
33 SPCR:.508 ID x.750 OD x.68 FINISH:ÖL IMPRÄGNIERT
34 Guide pulley 756-0625
35 BRACKET HOOD/DASH LH 784-5687A-0637
