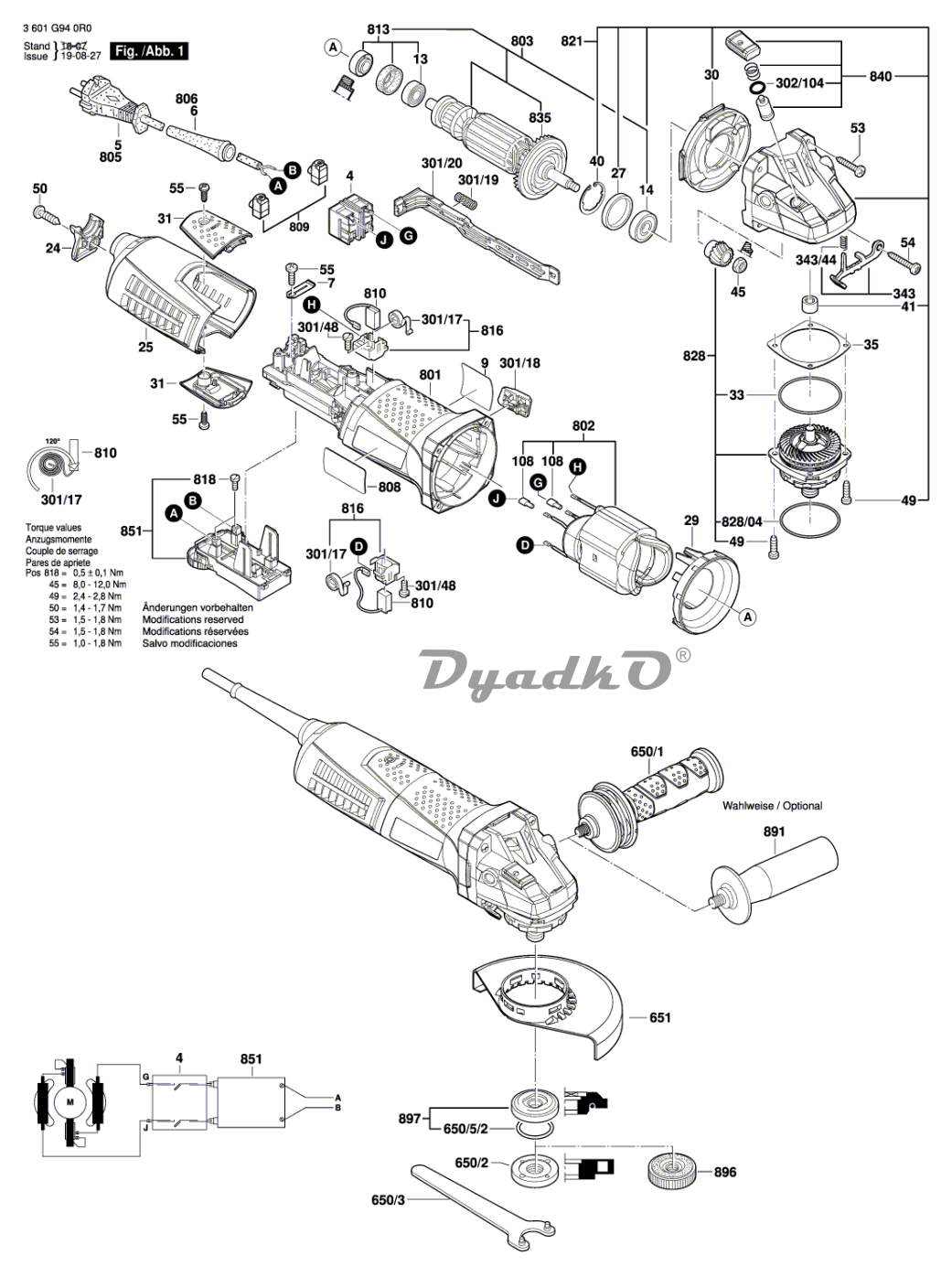

Схема (деталировка) углошлифовальные машины сетевые BOSCH GWS 13-125 CIE GWS 13-125 CIE (3601G940R0). Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

4	Switch
7	Fastening Clamp
9	Manufacturer\'s nameplate 12-125 CIE
13	Ball Bearing 7x19x6
14	groove ball bearing 8x22x7
24	Cover
25	Housing Cover
27	Rubber Ring
29	Air-Deﬂector Ring
30	Air Distributor
31	Brush-Cover
32	Grinding Spindle
33	O-Ring 46,0x1,1 MM
35	Shim 0,1 MM THICK
35	Shim 0,2 MM THICK
35	Shim 0,3 MM THICK
35	Shim 0,15 MM THICK
40	Retaining clip
41	Plain bearing
45	Hex Nut M7, SW10
49	Thread-forming tap. Screw M4x16
50	Torx Oval-Head Screw 4x20
53	Torx Oval-Head Screw
54	Torx Oval-Head Screw 4x30
55	Torx Oval-Head Screw 4x12
80	Sealing disk
81	Shim
108	Insulating Part
301/18	Switch Handle
301/17	Spiral Spring
301/48	Torx Oval-Head Screw 3x10
301/20	Adjusting Slide
301/19	Compression Spring
302/104	O-Ring 4,5x1,0 MM BLUE
343/44	Compression Spring
343	Catch Lever
650/5/2	O-Ring 20,35x1,78 MM
650/2	Round Nut M14
650/1	Auxiliary Handle M10 ANTI-VIBRATION
650/3	Pin-Type Face-Wrench
651	Protective Cover
801	Motor Housing
802	Field assembly 230V
803	Armature With Fan 230V
805	Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
806	Grommet
808	Nameplate
809	Seal
810	Carbon-Brush Set
813	groove ball bearing
816	Brush Holder
818	Pan head screw
821	Gear Housing
828/04	O-Ring 47,0x1,5 MM
828	Bearing Flange
835	Fan
838	Set Of Gearwheels
840	Push-Button
851	Speed governor
891	Auxiliary Handle M10, Ø32,5x105 MM
896	Fast Locking Flange M14, SDS-CLIC
897	Clamping Flange Ø22,3xØ42 MM
