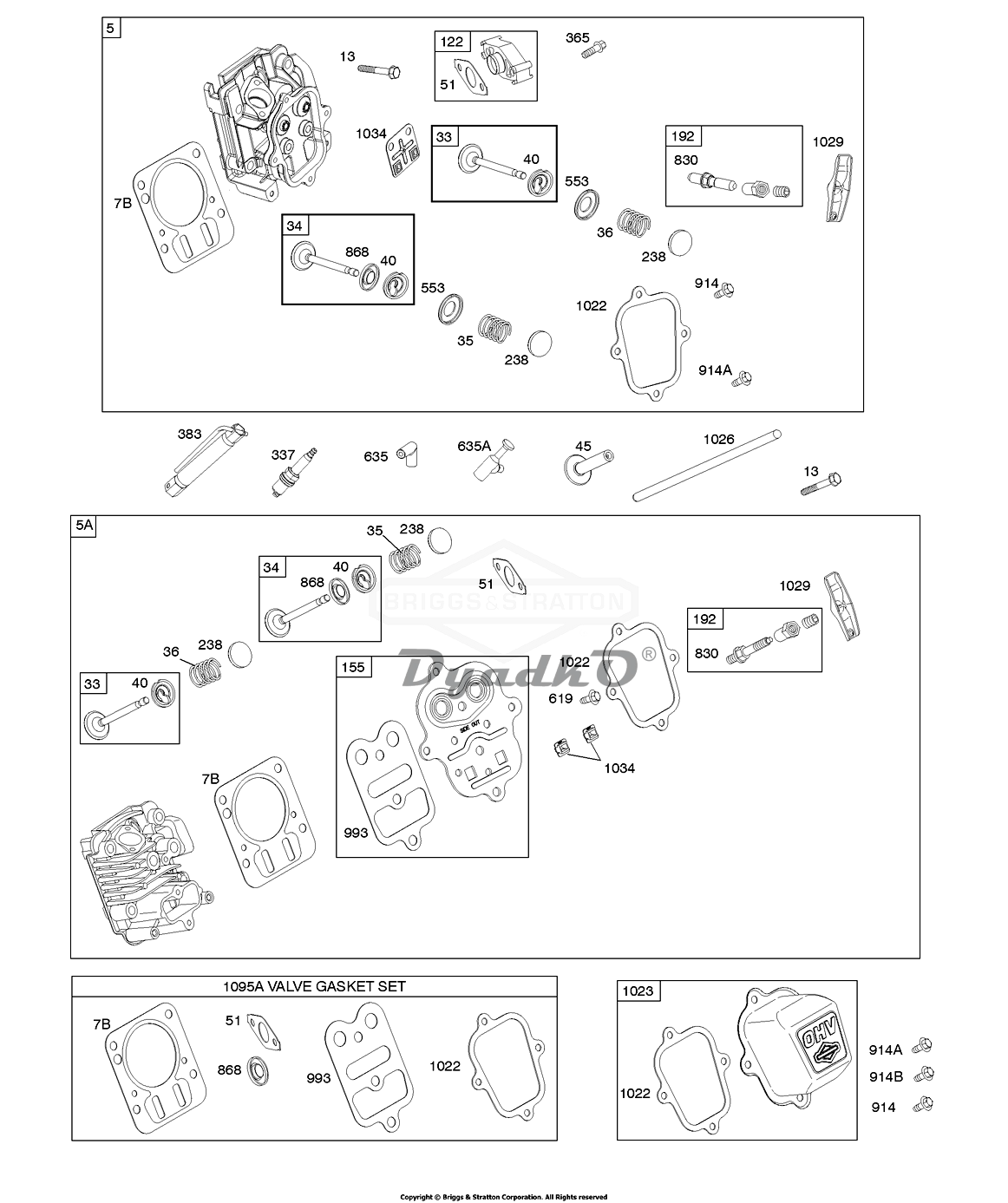

Схема BRIGGS&STRATTON 15C114-1468-H8 Cylinder Head

5 HEAD, Cylinder Used After Code Date 14090400
5A HEAD, Cylinder Used Before Code Date 14090500
7B GASKET, Cylinder Head
13 SCREW (Cylinder Head) Used After Code Date 14090400
13 SCREW (Cylinder Head) Used Before Code Date 14090500
33 VALVE, Exhaust
34 VALVE, Intake
35 SPRING, Valve (Intake)
36 SPRING, Valve (Exhaust)
40 RETAINER, Valve
45 TAPPET, Valve
51 GASKET, Intake (2 Required)
122 SPACER, Carburetor
155 PLATE, Cylinder Head (SAE) Used Before Code Date 09061800
155 PLATE, Cylinder Head (Metric) Used After Code Date 09061700
192 ADJUSTER. Rocker Arm (SAE) Used Before Code Date 09061800
192 ADJUSTER. Rocker Arm (Metric) Used After Code Date 09061700
238 CAP, Valve
337 PLUG, Spark
365 SCREW (Carburetor/Throttle Body)
383 WRENCH, Spark Plug
553 RETAINER, Valve
619 SCREW (Cylinder Head Plate)
635 BOOT, Spark Plug
635A BOOT, Spark Plug
830 STUD, Rocker Arm (Rocker Arm) (Metric) Used After Code Date 09061700 Used Before Code Date 14090400
830 STUD, Rocker Arm (Rocker Arm) (SAE) Used Before Code Date 09061800
830 STUD, Rocker Arm (Rocker Arm) Used After Code Date 14090300
868 SEAL, Valve
914 SCREW (Rocker Cover) (Bottom)
914A SCREW (Rocker Cover) (Quantity 1 Top Or Center) Used After Code Date 15090400
914A SCREW (Rocker Cover) (Top) Used Before Code Date 09061800
914A SCREW (Rocker Cover) (Quantity 1 Top Or Center) Used After Code Date 09061700 Used Before Code Date 14090500
914B SCREW (Rocker Cover) (Center) Used Before Code Date 09061800
993 GASKET, Cylinder Head Plate
1022 GASKET, Rocker Cover
1023 COVER, Rocker
1026 ROD, Push
1029 ARM, Rocker (SAE) Used Before Code Date 09061800
1029 ARM, Rocker (Metric) Used After Code Date 09061700
1034 GUIDE, Push Rod Used After Code Date 14090300
1034 GUIDE, Push Rod Used Before Code Date 14090400
1095A GASKET SET, Valve
