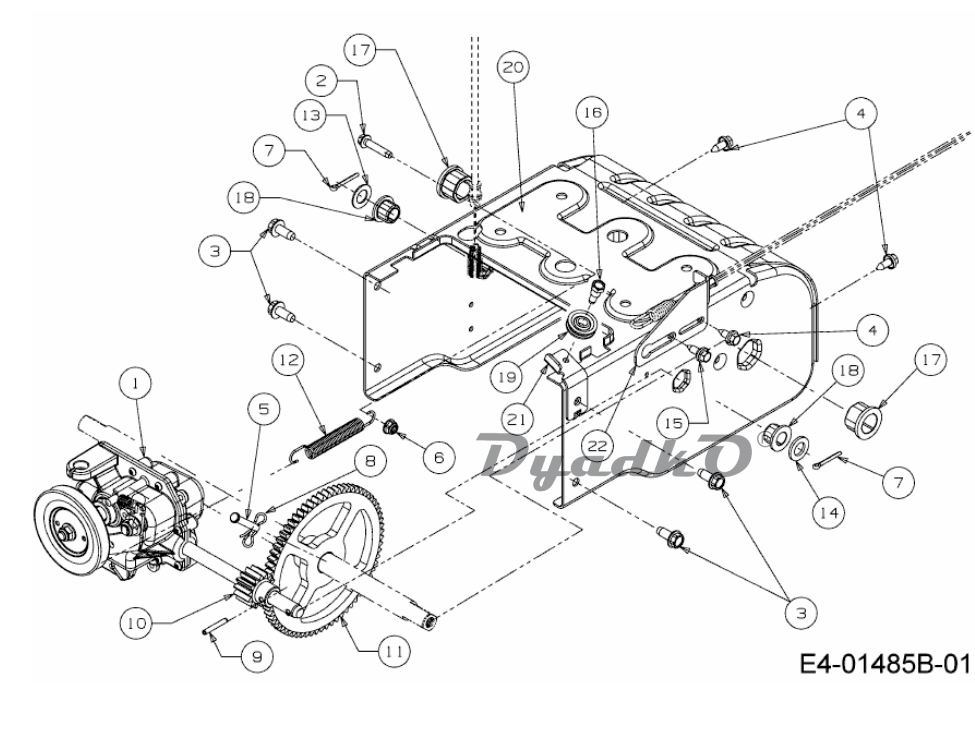

Схема (деталировка) снегоуборщики бензиновые MTD M 56 (31B-32AD678) (2015) Gearbox. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	TRANS ASM:SP SNOW 918-04296B
2	SCR:TT:1/4-20:1.25:HXINDWSH FINISH:MTD SPEC-100016 TYPE 1
3	SCR:TT:5/16-9:0.75:HXINDWSH FINISH:MTD SPEC-100016 TYPE 1
4	SCR:TT:1/4-20:0.62:HXINDWSH FINISH:MTD-SPEC-100016 TYPE 1
5	CLEVIS PIN 1/4 X 1.3725
6	NUT:FLGLK:1/4-20:GRN5:NYLON FINISH:SPEC-100015 912-04064
7	PIN:COT:SPLIT:1/8 X 1.0 FINISH:MTD SPEC-100015
8	PIN-COTTER FINISH:ASTM F1941 FE/ZN 3AN
9	PIN-SPRING ROLL 5/32X1.12\" 915-0249
10	Pinion 14 ZÄHNE
11	GEAR-70T 917-04073A
12	SPR:EXTN:.50 DIA X 3.97 LG FINISH:PHOSPHATE AND OIL
13	WASH:FLAT:.530x.930x.050 FINISH:MTD SPEC-100015
14	WASH:FL:.535 X .93 X .090 FINISH:701-01000
15	SCR:SHLDR:.368x.113:TT:1/4-20 :1/4-20 / FINISH:701-01002
16	SCR:SHLDR:.340x.355xC:1/4-28 1/4-28 / FINISH: VERZINKT
17	BRG:HEX FLANGE x.75 ID FINISH:SCHWARZ 941-0245
18	Bearing flange .506 ID X .590 LG
19	Guide pulley 756-0625
20	HOUSING-FRAME WHL 784-0419C-0638 / MTD ROT
21	BRACKET CABLE TRANSMISSIO 790-00223A-0637
22	BRACKET:ADJ CABLE POWDER BLACK 790-00224-0637
