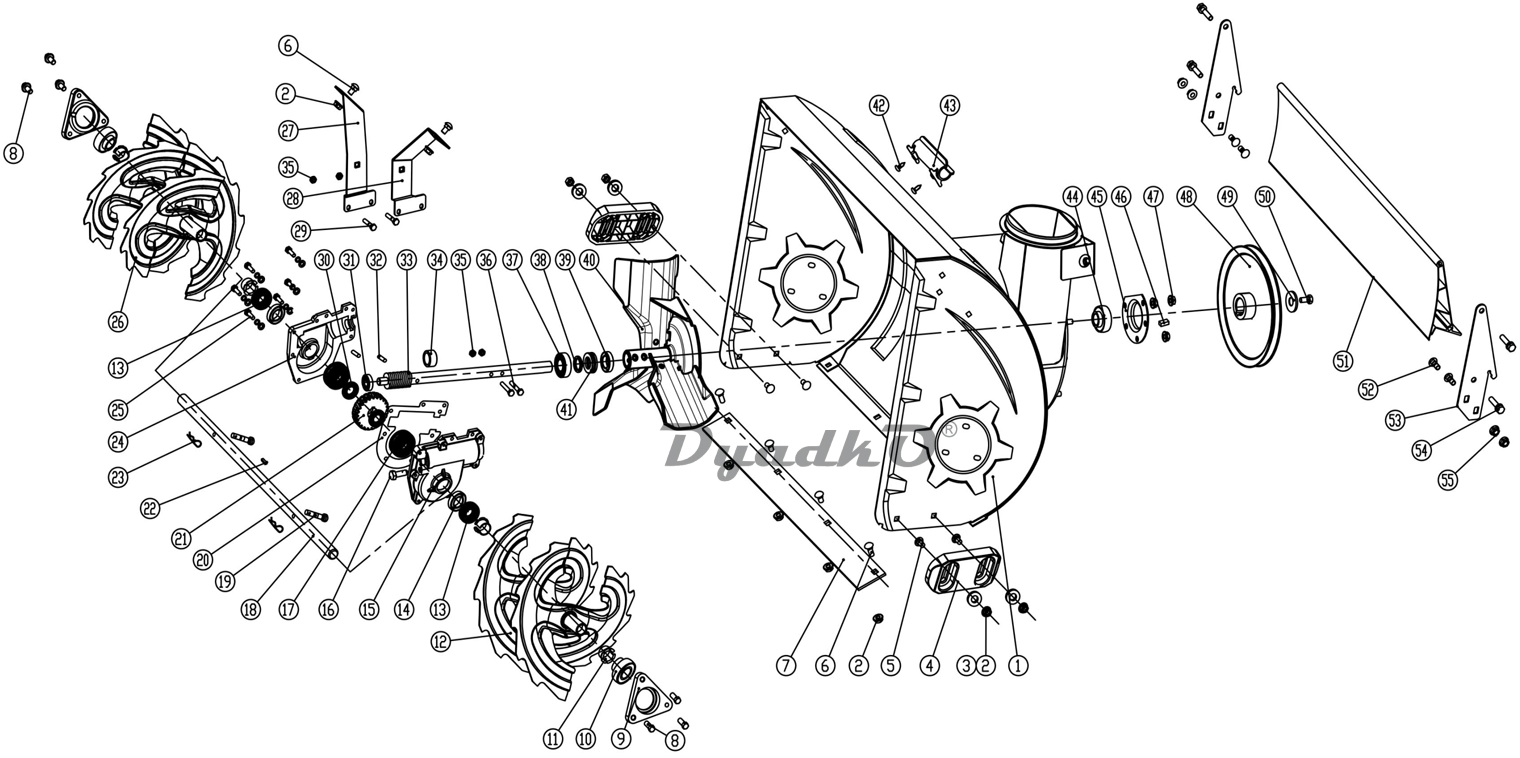

| 1 | housing |
| 2 | jam nut M8 |
| 3 | washer 8 |
| 4 | skid shoe |
| 5 | bolt M8x20 |
| 6 | bolt M8x16 |
| 7 | shave plate |
| 8 | bolt M8x16 |
| 9 | bearing cover |
| 10 | nonstandard bearing |
| 11 | sleeve |
| 12 | right auger |
| 13 | plastic washer |
| 14 | sealing ring 22x30x7 |
| 15 | worm case right |
| 16 | bolt M10x16 |
| 17 | gear box bearing |
| 18 | output shaft 720 |
| 19 | safety bolt |
| 20 | paper washer |
| 21 | worm gear |
| 22 | flat key B6x6x18 |
| 23 | B pin |
| 24 | worm case left |
| 25 | screw M6x25 |
| 26 | left auger |
| 27 | right support |
| 28 | left support |
| 29 | bolt M6x30 |
| 30 | washer22 |
| 31 | bearing 6001 |
| 32 | cylindrical pin 6*14 |
| 33 | worm shaft |
| 34 | sleeve |
| 35 | jam nut M6 |
| 36 | bolt M6x35 |
| 37 | bearing 6004 |
| 38 | shaft sleeve |
| 39 | sealing ring B20 35 |
| 40 | fan |
| 41 | bearing 51104 |
| 42 | screw ST4.2x9.5-F |
| 43 | shovel seat |
| 44 | bearing SB204 |
| 45 | round cover |
| 46 | flat key A6x6x20 |
| 47 | jam nut M8 |
| 48 | pulley wheel |
| 49 | super washer 10 |
| 50 | bolt M10x25 |
| 51 | higher panel 28inch (optional) |
| 52 | bolt M8x20 (optional) |
| 53 | side plate (optional) |
| 54 | bolt M8x20 (optional) |
| 55 | jam nut M8 (optional) |
