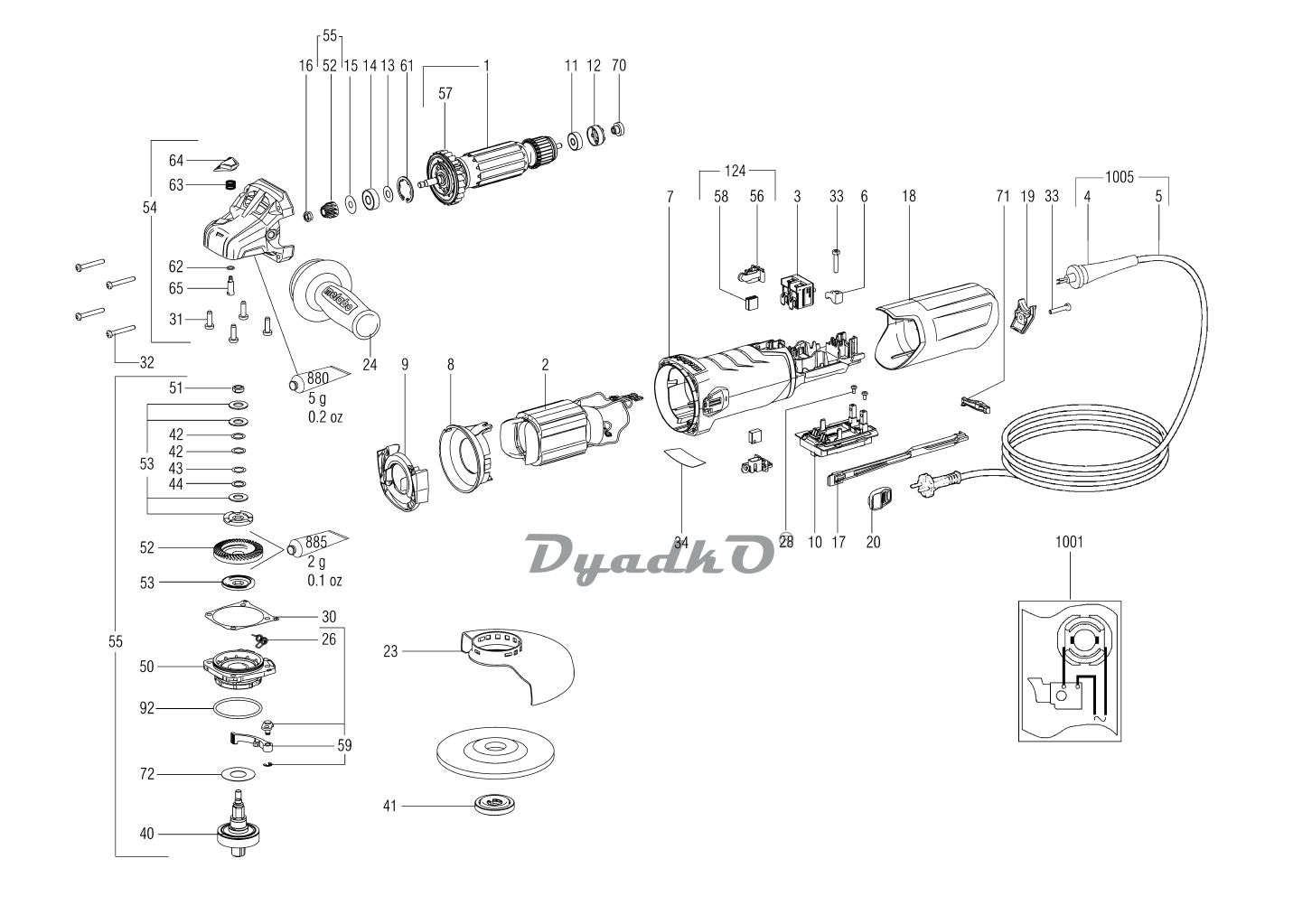

Схема (деталировка) углошлифовальные машины сетевые METABO WEVA 15-125 QUICK WEVA 15-125 QUICK (00496001). Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Armature compl., 230V
2	Field coil w.field coil,230 V
3	Switch 2-pole
4	Part not needed
5	Part not needed
6	Cable clip
7	Motor housing 2 part
8	Baffle
9	Baffle
10	Electronic compl.
11	Ball bearing,6x19x6
12	Rubber bushing
13	Washer,8,05x17x0,4
14	Ball bearing,8x22x7
15	Washer,7,05x19,5x0,2
16	Hexagon nut w.recess
17	Switch rod
18	Cap
19	End cap
20	Switch slide
23	Wheel guard,D125
24	Anti-vibration handle,M 8
26	Spring clip
28	Fill. head screw(DIN 7985)
30	Gasket
31	Fill. head screw(DIN 7985)
32	Self-tap. fill. h. screw
33	Self-tap. fill. h. screw
34	Rating plate
36	Part not needed
40	Spindle compl.,WA M14
41	Clamping nut compl.,M14
42	Washer 10,2 X 14,8X 0,2
43	Washer 10,2 X 14,8X 0,1
44	Washer 10,2 X 14,8X 0,5
50	Flange compl.
51	Nut
52	Bevel gear w.pinion
53	Friction washer set compl.
54	Gear housing compl.
55	Safety clutch w.pinion
56	Brush holder set
57	Fan w. dust guard
58	Carbon brush set cut-off
59	Clamping lever compl.
61	Retaining ring
62	O-ring
63	Pressure spring
64	Push button
65	Bolt
70	Tacho disc
71	Pivoting switch
72	Washer
92	O-ring
124	carbonbrush with brusholder Set 230V
880	Grease 100G
885	Grease SF 011 50Gr 1,8oz
1001	Diagram
1005	Cable with sleeve
