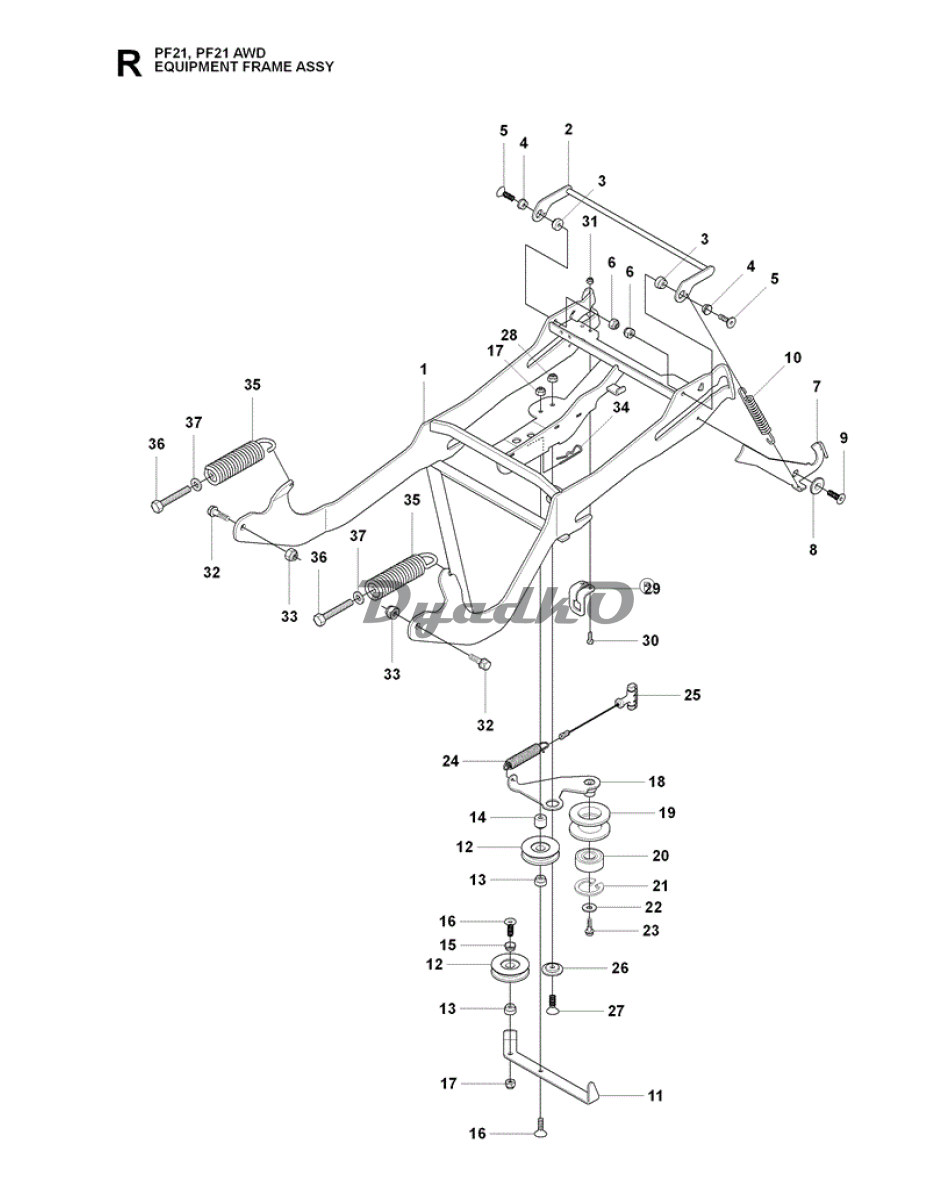

| 1 | EQUIPMENT FRAME |
| 2 | HOOK |
| 3 | BUSHING |
| 4 | SLEEVE |
| 5 | SCREW IHCSFM |
| 6 | LOCK NUT |
| 7 | LEVER |
| 8 | WASHER |
| 9 | SCREW IHCSFM |
| 10 | DRAW SPRING |
| 11 | BELT GUIDE |
| 12 | PULLEY ASSY |
| 13 | BUSHING |
| 14 | BUSHING |
| 15 | SLEEVE |
| 16 | SCREW EHHM |
| 17 | LOCK NUT |
| 18 | BELT TENSIONER |
| 19 | PULLEY |
| 20 | BALL BEARING |
| 21 | CIRCLIP |
| 22 | WASHER |
| 23 | SCREW EHHFT |
| 24 | SPRING |
| 25 | HANDLE ASSY |
| 26 | WASHER |
| 27 | SCREW IHCSFM |
| 28 | LOCK NUT |
| 29 | GUIDE |
| 30 | SCREW EHHM |
| 31 | LOCK NUT |
| 32 | COLLAR SCREW |
| 33 | HEXAGON LOCKING NUT |
| 34 | HAIR PIN COTTER |
| 35 | SPRING |
| 36 | SCREW EHHM |
| 37 | WASHER |
