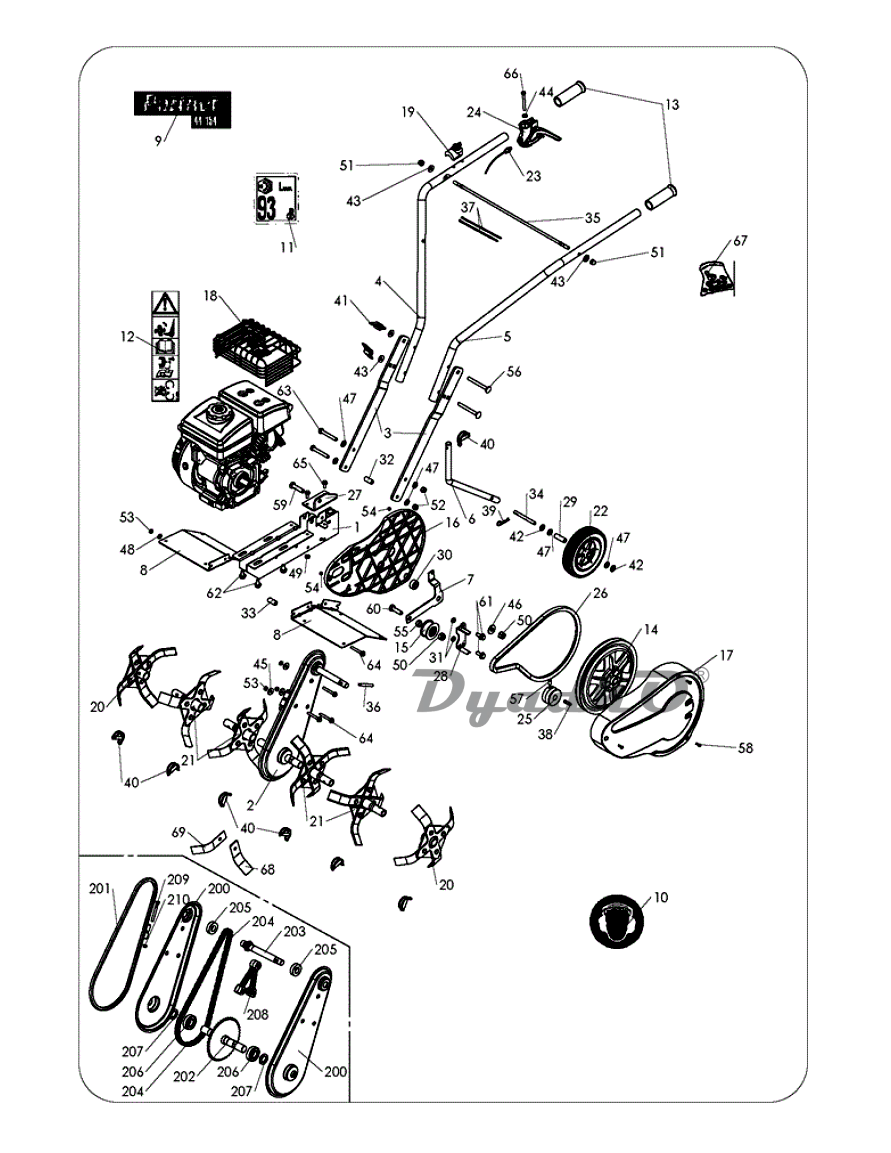

| 1 | FRAME |
| 2 | TRANSMISSION |
| 3 | HANDLEBAR |
| 4 | HANDLEBAR |
| 5 | HANDLEBAR |
| 6 | SPUR SPROCKET |
| 7 | PLATE |
| 8 | GUARD |
| 9 | STICKER |
| 10 | STICKER |
| 11 | LABEL |
| 12 | DECAL |
| 13 | GRIP |
| 14 | PULLEY |
| 15 | PULLEY |
| 16 | COVER |
| 17 | BELT COVER |
| 18 | GRILLE |
| 19 | SWITCH |
| 20 | BLADE |
| 21 | BLADE |
| 22 | WHEEL |
| 23 | CABLE |
| 24 | LEVER |
| 25 | PULLEY |
| 26 | BELT |
| 27 | SUPPORT |
| 28 | DRIVE BELT |
| 29 | SPACER |
| 30 | SPACER |
| 31 | SPACER |
| 32 | SPACER |
| 33 | SPACER |
| 34 | AXLE |
| 35 | TIE STRAP |
| 36 | SHAFT |
| 37 | COLLAR |
| 38 | PINION |
| 39 | PIN RETAINING SCREW |
| 40 | PIN RETAINING SCREW |
| 41 | WING NUT |
| 42 | WASHER |
| 43 | WASHER |
| 44 | WASHER |
| 45 | WASHER |
| 46 | WASHER |
| 47 | WASHER |
| 48 | WASHER |
| 49 | NUT |
| 50 | NUT |
| 51 | CAP NUT |
| 52 | NUT |
| 53 | NUT |
| 54 | NUT |
| 55 | NUT |
| 56 | SCREW |
| 57 | SCREW |
| 58 | SCREW |
| 59 | SCREW |
| 60 | SCREW |
| 61 | NUT |
| 62 | BOLT |
| 63 | SCREW |
| 64 | SCREW |
| 65 | SCREW |
| 66 | SCREW |
| 67 | KIT |
| 68 | BLADE |
| 69 | BLADE |
| 200 | GEAR HOUSING |
| 201 | FLANGE |
| 202 | SHAFT |
| 203 | SHAFT |
| 204 | CHAIN |
| 205 | BEARING |
| 206 | BEARING |
| 207 | BUSHING |
| 208 | SPACER |
| 209 | SCREW |
| 210 | NUT |
