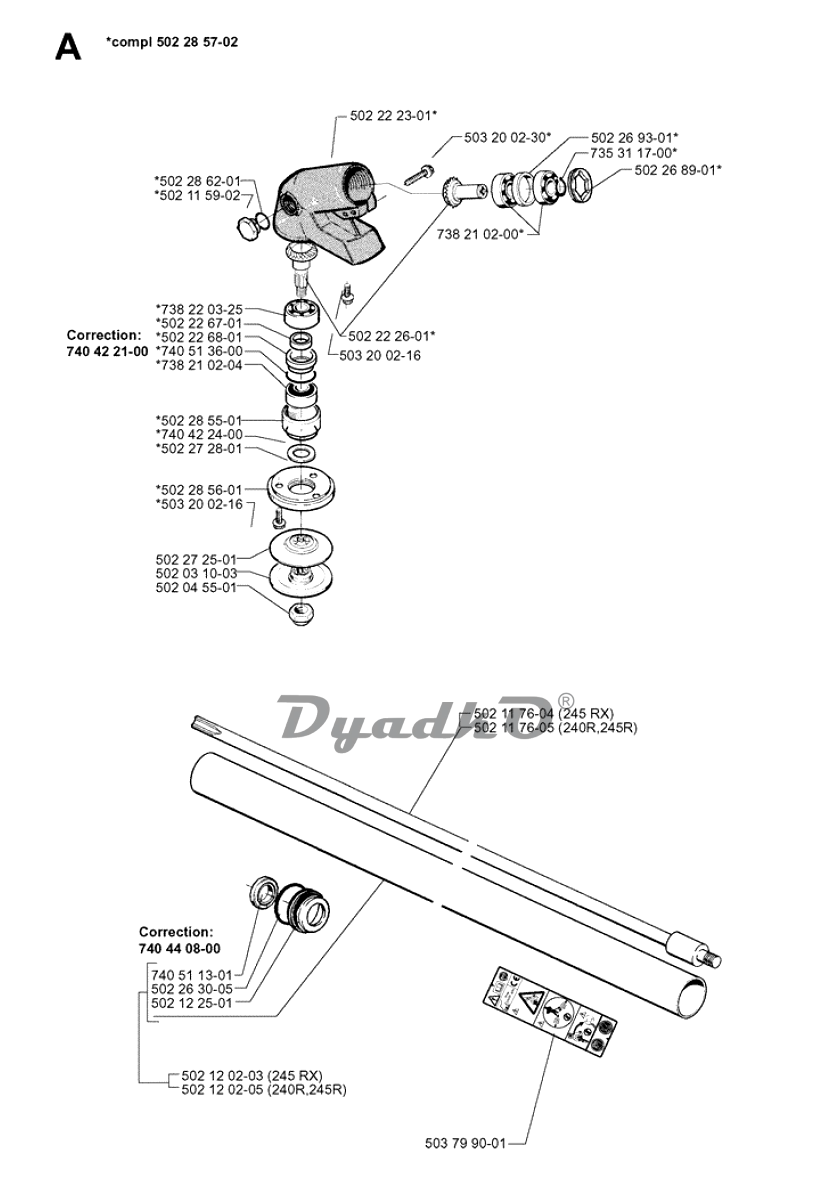

Схема HUSQVARNA 245 RX (1998) BEVEL GEAR & SHAFT


5020310-03 SUPPORT FLANGE
5020455-01 NUT
5021159-02 PLUG
5021176-04 DRIVE SHAFT ASSY 245 RX
5021176-05 DRIVE SHAFT ASSY 240R,245R
5021202-03 TUBE ASSY 245 RX
5021202-05 TUBE ASSY 240R,245R
5021225-01 SEALING HOLDER
5022223-01 GEAR HOUSING
5022226-01 GEAR WHEEL
5022267-01 SPACER RING
5022268-01 SEALING COLLAR
5022689-01 CIRCLIP
5022693-01 SPACER RING
5022725-01 DRIVER
5022728-01 WASHER
5022855-01 BEARING HOUSING
5022856-01 CUP
5022857-02 GEAR
5022862-01 WASHER
5032002-16 SCREW IHSCFM
5032002-16 SCREW IHSCFM
5032002-30 SCREW IHSCFM
5037990-01 LABEL
7353117-00 CIRCLIP
7382102-00 BALL BEARING
7382102-04 BALL BEARING
7382203-25 BALL BEARING
7404221-00 O-RING
7404224-00 O-RING
7404408-00 O-RING
7405113-01 SEALING RING
