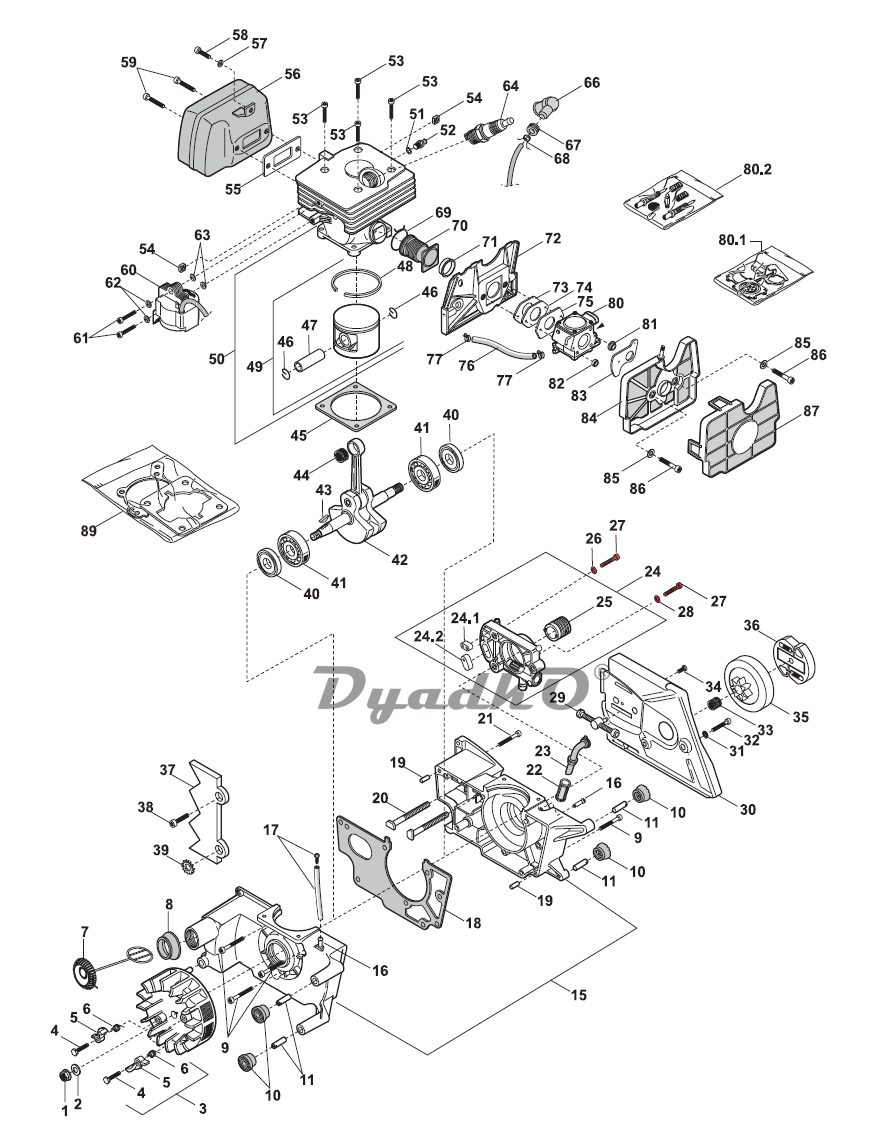

Схема (деталировка) пилы цепные бензиновые ALPINA P 610 / P 660 (2006) 126220000 ENGINE. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Nut
2	Washer
3	Flywheel Assy
4	Flywheel Pin
5	Flywheel Starter Hook
6	Flywheel Spring
7	Oil Cap
8	Grommet
9	Screw
10	Shock Absorber
11	Screw
15	Crankcase R. And L. Assy
16	Tube
17	Valve Assy
18	Crankcase Gasket
19	Centring Pin
20	Screw
21	Screw
22	Oil Filter
23	Pickup Oil
24.1	Gasket
24	Oil Pump Assy
24.2	Intake Gasket
25	Female Screw
26	Washer
27	Screw
28	Washer
29	Chain Tensioner
30	Pump Plate
31	Washer
32	Screw
33	Needle Bearing
34	Screw
35	Sprocket Assy 3/8”
36	Clutch Assy
37	Spike
38	Screw
39	Washer
40	Seal Ring
41	Ball Bearing
42	Crankshaft
43	Flywheed Key
44	Needle Bearing
45	Cylinder Gasket
46	C Irclip
47	Piston Pin
48	Piston Ring Ø 47
49	Piston Assy Ø 47
50	Cylinder-Piston Assy Ø 47
51	Washer
52	Decompressor
53	Screw
54	Nut
55	Mufﬂer Gasket
56	Mufﬂer
57	Washer
58	Screw
59	Screw
60	Electronic Coil
61	Screw
62	Washer
63	Washer
64	Spark Plug
66	Spark Plug Cover
67	Wire Sleeve
68	Spark Plug Spring
69	Clamp
70	Intake Manifold Assy
71	Bushing
72	Support Carburettor
73	Carburettor Flange Gasket
74	Flange
75	Carburetor Gasket
76	Caub. Pulse Pipe Assy
77	Clamp
80,1	Diaph.-Gasket Set
80	Carburettor Assy Tillotson HU 117 B
80,2	Kit Repair
81	Bushing
82	Bushing
83	Throttle Shutter
84	Air Filter Holder
85	Washer
86	Screw
87	Air Filter
89	Gasket Set
