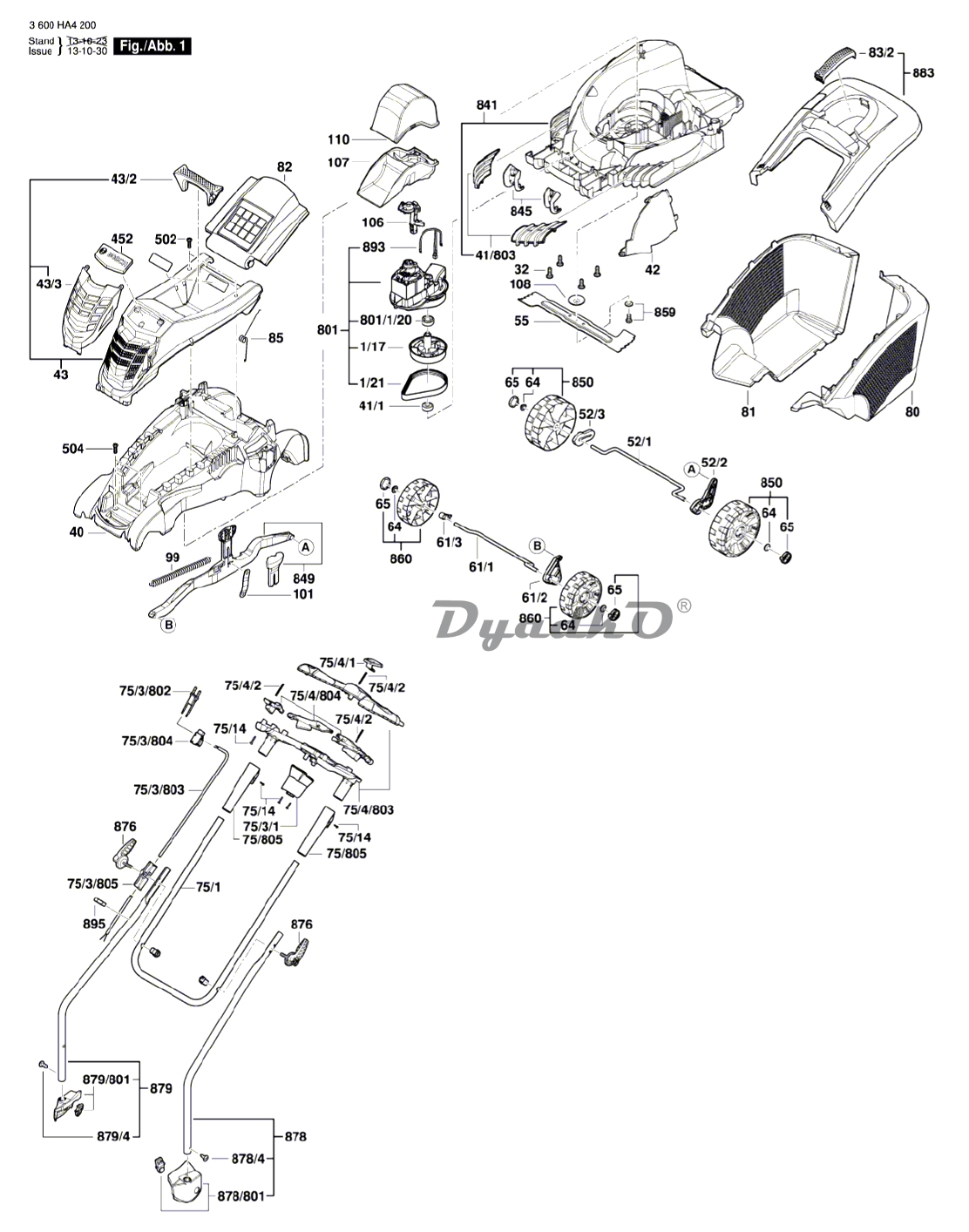

Схема BOSCH Rotak 43 Rotak 43 (3600HA4300)

1/17	Drive Shaft
1/21	Drive Belt
32	Self-Cutting Screw
40	Mower deck
41/1	Bearing 6003
41/803	Cover Panel
42	Cover Panel
43	Motor Hood
43/2	Carrying Handle
43/3	grille SILVER
52/1	Axle
52/2	Lever
52/3	Spacer
55	Cutter Blade
61/1	Axle
61/2	Lever
61/3	Spacer
64	Ratchet Cap
65	Cover
75/1	Handle
75.3.1	Switch Housing
75/3/802	Connecting Cable EU
75/3/803	Connecting Cable
75/3/804	Switch Kit
75/3/805	Cable Guide
75.4.1	Push-Button
75.4.2	Button Spring
75/4/803	Housing Set
75/4/804	Switch Segment
75/14	Self-Cutting Screw 4x19 MM
75/805	Sleeve
80	Collector Box Bottom L/H
81	Collector Box Bottom R/H
82	Guard Flap
83/2	Handle BLACK
85	Spring
99	Spring
101	Leaf Spring
106	Wire Guide
107	Baffle
108	Bearing cover
110	Baffle
452	Company Logo Rotak 43
502	Torx head screw
504	Self-Cutting Screw 4x19 MM
801	Motor
801/1/20	Bearing
841	Housing
845	Cover Panel
849	Linkage part
850	Wheel
859	Screw and washer assembly
860	Wheel
876	Clamping Lever
878	bottom handle GREEN
878/4	Screw M5x8 Csk Hd.
878/801	Mounting Bracket GREEN
879	bottom handle
879/4	Screw M5x8 Csk Hd.
879/801	Mounting Bracket GREEN
883	Cover
893	Thermal protector
895	Cable Clip
