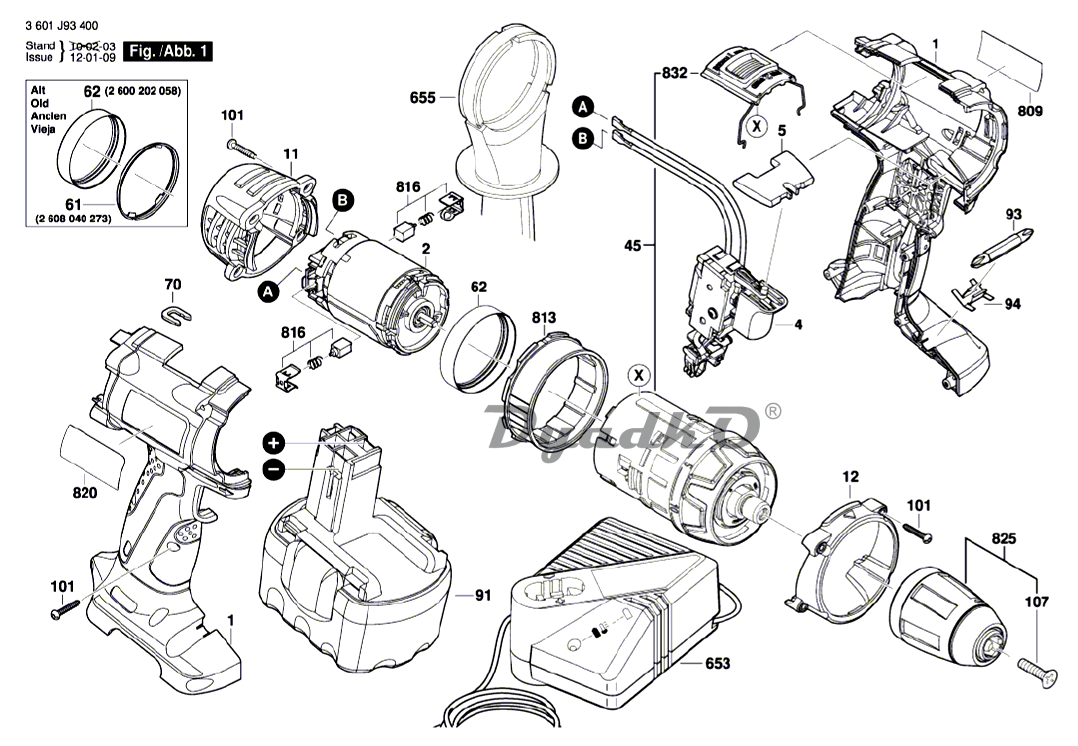

Схема (деталировка) шуруповёрты BOSCH GSR 14.4 VE-2 (3601J93400). Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Housing Section BLUE
2	DC motor 14,4V
4	Electronics Module
5	Adjusting lever RED
11	End cap BLACK
12	Front Cap
45	Planetary Gear Train
62	Retaining snap ring
70	Pickup Clip
91	Slide-In Accu Package 14,4V, 2,6Ah, NiMH
91	Slide-In Accu Package 14,4V,3,0Ah,NiMh
93	Screwdriver Blade 6 MM
94	Spring Element
101	Torx Oval-Head Screw 3x18
107	Countersunk-Head Screw M6x23
653	Fast Charger EU 230/7,2-14,4V, 30 MIN.
653	Fast Charger GB 230/7,2-14,4V, 30 MIN.
653	Fast Charger AUS 240/7,2-14,4V, 30 MIN.
653	Fast Charger ROK 220/7,2-14,4V, 30 MIN.
655	Auxiliary Handle
809	Manufacturer\'s nameplate GSR 14,4 VE-2
813	Locating ring
816	Carbon-Brush Set
816	Carbon-Brush Set 10 x 2 607 034 904
820	Nameplate
825	Keyless Chuck
832	Adjusting lever
