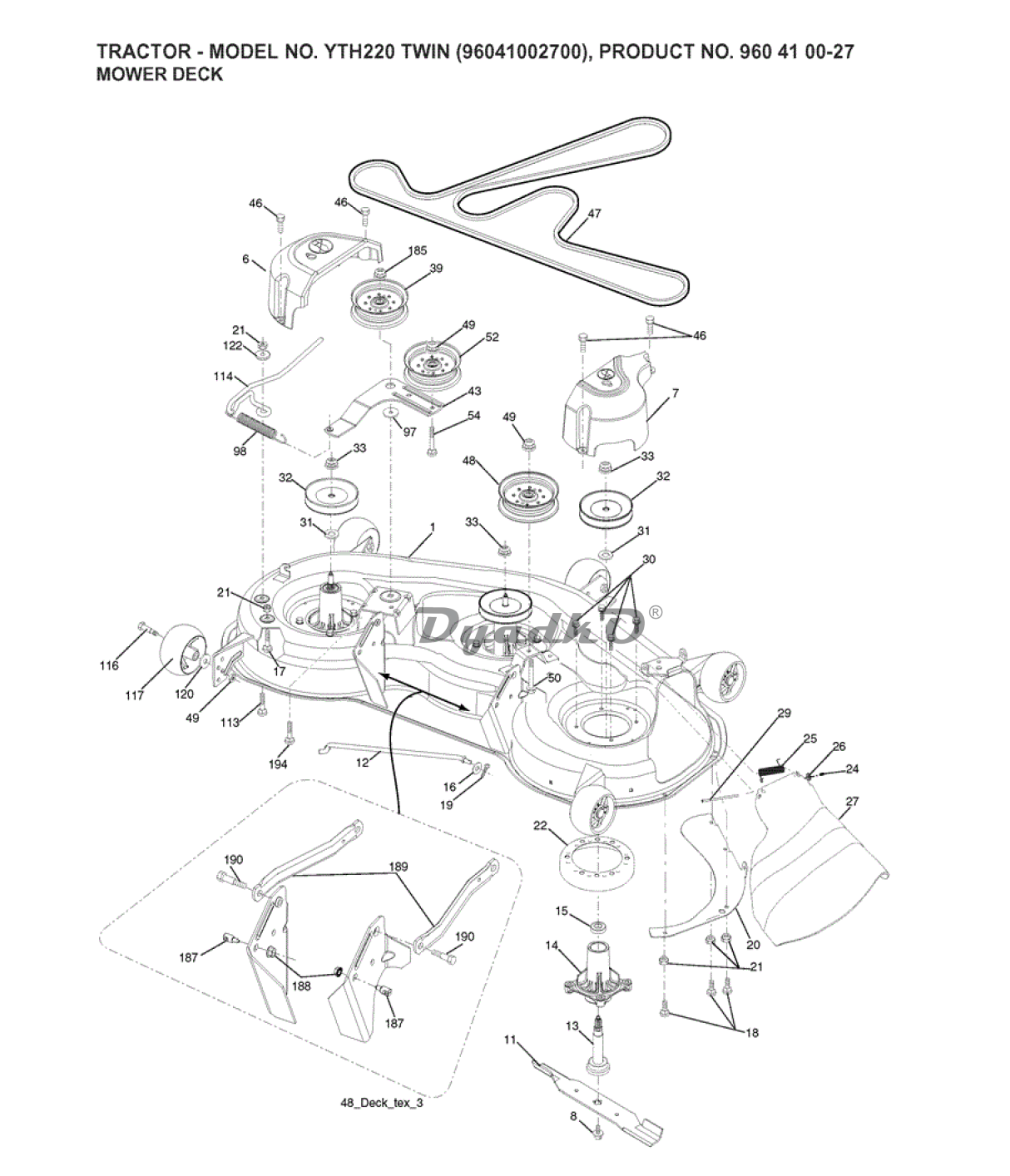

| 1 | DECK |
| 6 | MANDREL COVER(L.H.) |
| 7 | MANDREL COVER(R.H.) |
| 8 | BOLT |
| 11 | BLADE |
| 12 | TIGE ANTI-ROULIS |
| 13 | SHAFT |
| 14 | BEARING HOUSING |
| 15 | BEARING |
| 16 | WASHER |
| 17 | BOLT |
| 18 | BOLT |
| 19 | PIN |
| 20 | BAFFLE |
| 21 | NUT |
| 22 | STRIPPER. MANDREL.BLACK |
| 24 | HUB CAP |
| 25 | SPRING |
| 26 | NUT |
| 27 | SHIELD |
| 29 | SHAFT |
| 30 | SCREW |
| 31 | WASHER |
| 32 | PULLEY |
| 33 | NUT |
| 39 | PULLEY |
| 43 | ARM |
| 46 | SCREW |
| 47 | BELT |
| 48 | PULLEY |
| 49 | NUT |
| 50 | SCREW |
| 52 | PULLEY |
| 54 | BOLT |
| 97 | WASHER |
| 98 | SPRING |
| 113 | BOLT |
| 114 | TIGE DE TENSION |
| 116 | BOLT |
| 117 | WHEEL |
| 120 | WASHER |
| 122 | BUSHING |
| 185 | NUT |
| 187 | STUD |
| 188 | NUT |
| 189 | ARM |
| 190 | BOLT |
| 194 | BOLT |
| - | MANDREL |
| - | CUTTING DECK |
