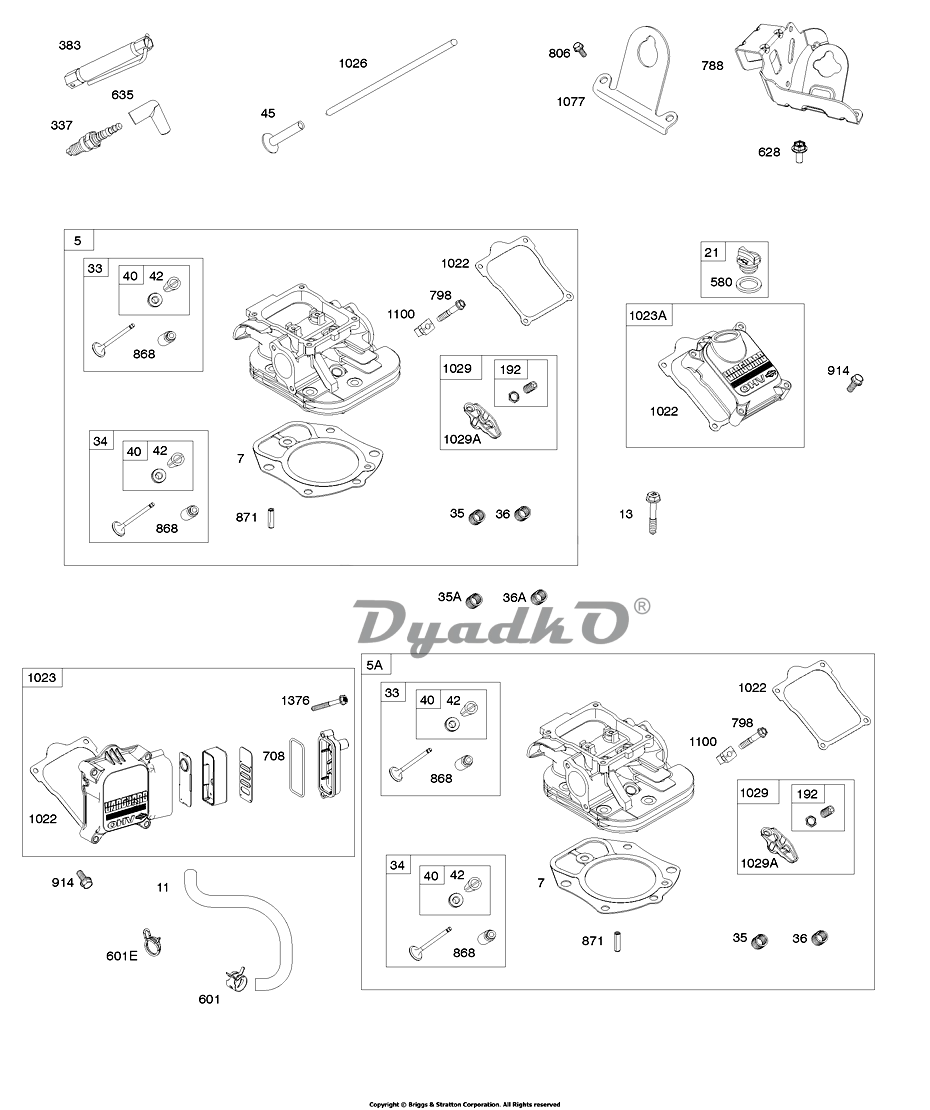

Схема (деталировка) бензиновые двигатели с горизонтальным валом BRIGGS&STRATTON 543477-0142-E1 Cylinder Heads, Rocker Covers. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

5	HEAD, Cylinder (Cylinder 1)
5A	HEAD, Cylinder (Cylinder 2)
7	GASKET, Cylinder Head
11	TUBE, Breather
13	SCREW (Cylinder Head) (M9x70mm)
21	CAP, Oil Fill
33	VALVE, Exhaust
34	VALVE, Intake
35	SPRING, Valve (Intake) (Intake) (Pink)
35A	SPRING, Valve (Intake) (Intake) (White)
36	SPRING, Valve (Exhaust) (Exhaust) (Pink)
36A	SPRING, Valve (Exhaust) (Exhaust) (White)
40	RETAINER, Valve
42	RETAINER, Valve
45	TAPPET, Valve
192	ADJUSTER. Rocker Arm
337	PLUG, Spark (RC12YC - RESISTOR)
337	PLUG, Spark (XC92YC - RESISTOR - EMS)
383	WRENCH, Spark Plug
580	SEAL, O-Ring (Oil Fill Cap)
601	CLAMP, Hose (Breather Tube) Used After Code Date 07121300
601E	CLAMP, Hose (Breather Tube) Used Before Code Date 07121400
635	BOOT, Spark Plug
708	SEAL, O-Ring (Breather Reed)
798	SCREW (Rocker Arm) (M6x18mm)
806	SCREW (Lifting Bracket) (M6x40mm)
868	SEAL, Valve
871	BUSHING, Valve Guide
914	SCREW (Rocker Cover)
1022	GASKET, Rocker Cover
1023	COVER, Rocker (Rocker Cover #2)
1023A	COVER, Rocker (Rocker Cover #1)
1026	ROD, Push (Intake and Exhaust)
1029	ARM, Rocker
1029A	ARM, Rocker
1077	BRACKET, Lifting
1100	PIVOT, Rocker Arm
1376	SCREW (Breather Reed Cover)
