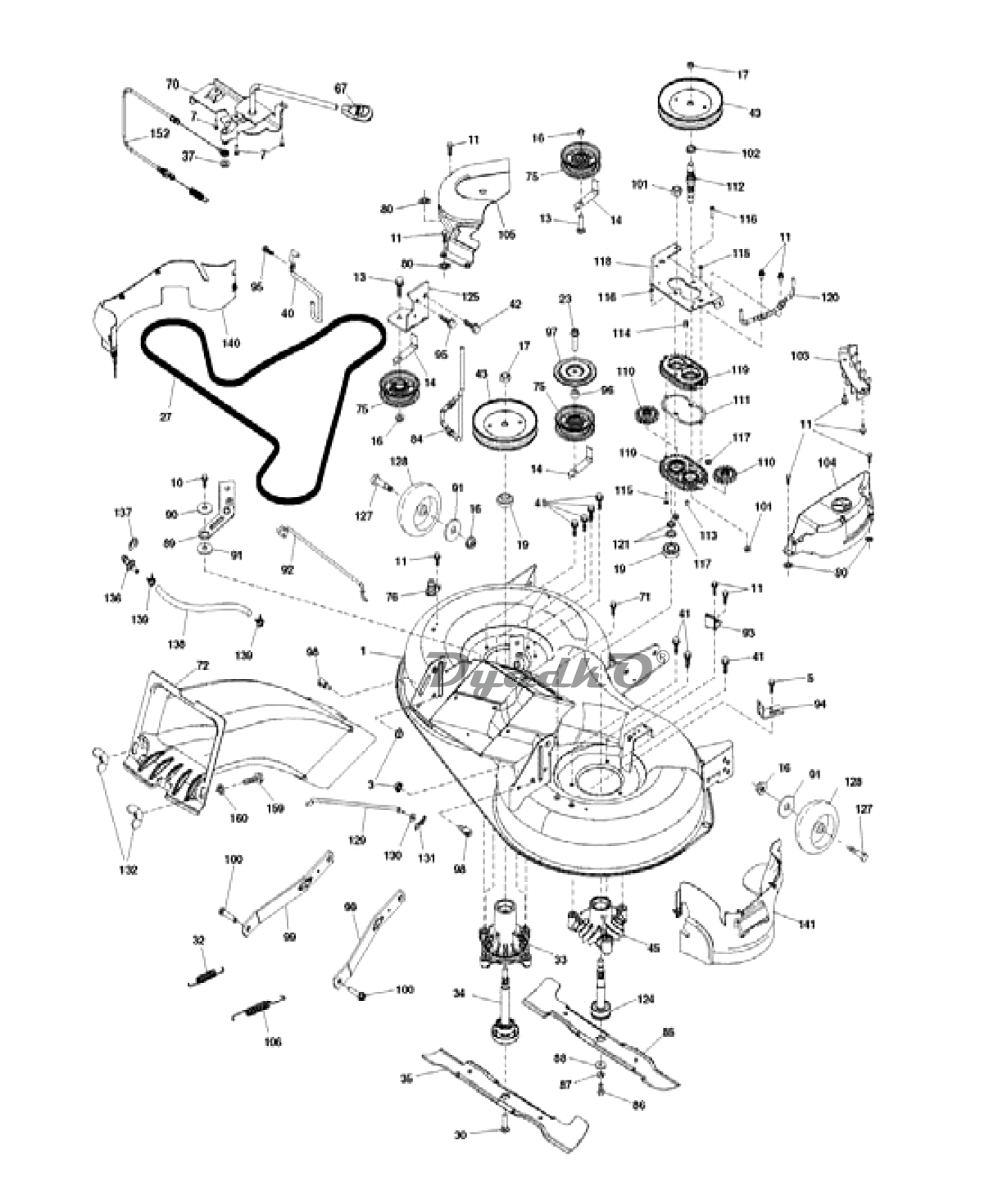

Схема (деталировка) тракторы садовые и райдеры HUSQVARNA TC 38 (96051013902) 2016 MOWER DECK / CUTTING DECK. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	DECK
3	NUT
5	BOLT
7	SCREW
10	SCREW
11	SCREW
13	BOLT
14	BELT GUIDE
16	NUT
17	NUT
19	BEARING
23	SCREW
27	BELT
30	SCREW
32	SPRING
33	BEARING HOUSING
34	SHAFT
35	RIDE ON BLADE
37	WASHER
40	BELT GUIDE
41	BOLT
42	SCREW
43	PULLEY
45	BEARING HOUSING
67	HANDLE
70	CLUTCH
71	SCREW
72	CHUTE
75	PULLEY
76	PORT
80	NUT
84	KEEPER
85	BLADE
86	BOLT
87	WASHER
88	WASHER
89	ARM
90	SPACER
91	WASHER
92	ROD
93	ARM
94	BRACKET
95	SCREW
96	SPACER
97	PROTECTOR
98	STUD
99	ARM
100	BOLT
101	NUT
102	SPACER
103	GUARD
104	MANDREL
105	MANDREL
106	RESSORT RETOUR FREIN DE LAME
110	GEAR
111	GASKET
112	SHAFT
113	PLUG
114	BREATHER
115	SCREW
116	BOLT
117	NUT
118	ARM
119	GEARCASE
120	BRACKET
121	WASHER
124	SHAFT
125	BRACKET
127	BOLT
128	WHEEL
129	ROD
130	WASHER
131	PIN
132	KNOB
136	PLUG
137	RETAINER RING
138	HOSE
139	CLAMP
140	GUARD
141	GUARD
152	CABLE
159	BOLT
160	WASHER
_	MANDREL ASSEMBLY (Includes assembly (key# 33), shaft assembly (key# 34) and bearing (key# 19) only - pulley/nut/washer and blade bolt/washers not included.
_	SERVICE TOOLS
_	Gear Case Kit. Use .75 oz. Shell 460 Oil. (Include Gear Output (key #110), Gasket Gearcase (key #111), Shaft Gearcase (key #112), Plug Oil (key #113), Vent Breather 1/8 NPT (key #114), Screw Torx (key #115), Gearcase Subasm (key #119).
