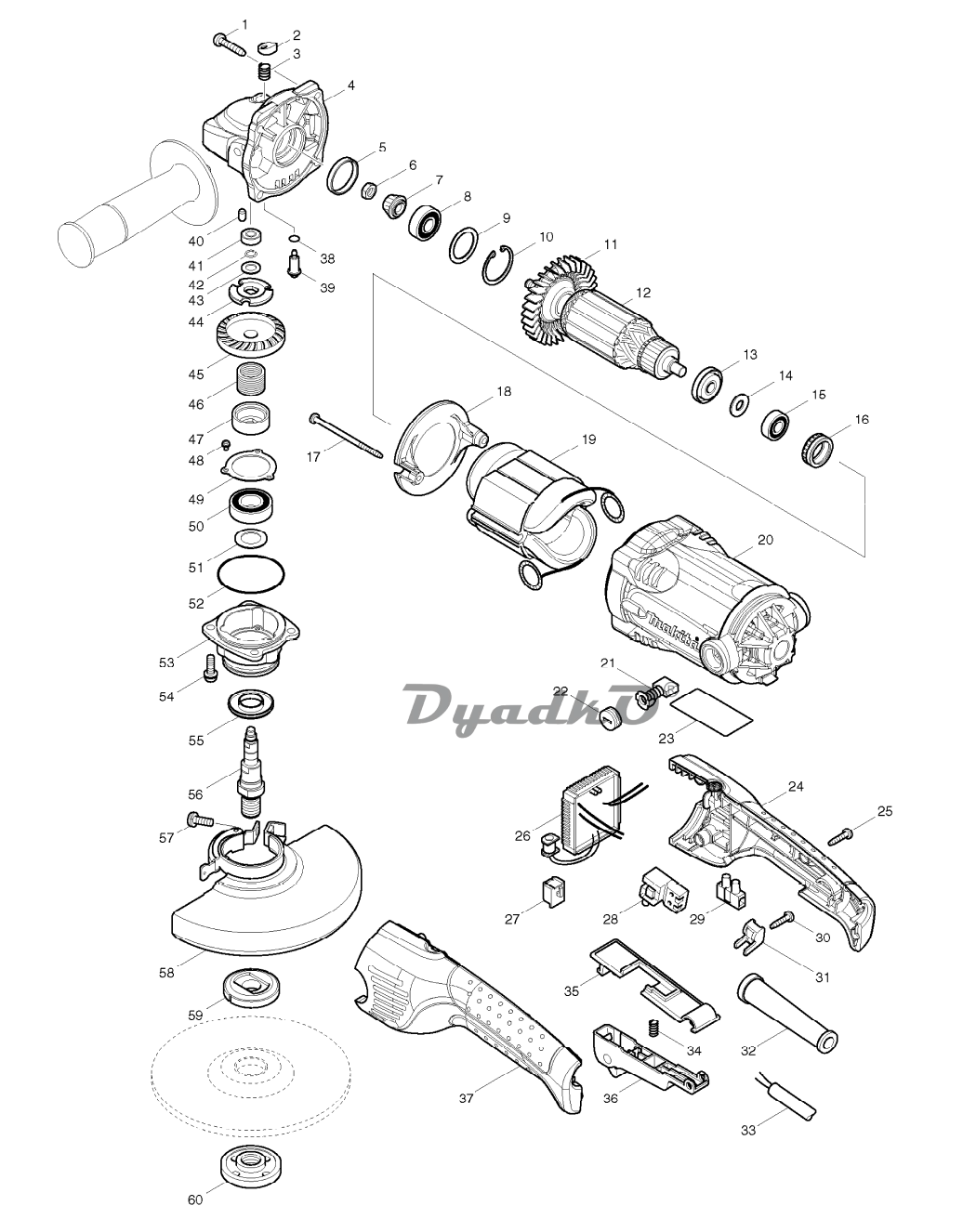

Схема (деталировка) углошлифовальные машины сетевые MAKITA GA 6021 C. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	TAPPING SCREW 5X25
2	PIN CAP
3	COMPRESSION SPRING 8
4	GEAR HOUSING
5	RUBBER RING 26
6	HEX.NUT M7
7	SPIRAL BEVEL GEAR 11A
8	BALL BEARING 6000DDW
9	FLAT WASHER 22
10	RETAINING RING (INT) R-30
11	FAN 70
12	ARMATURE ASS\'Y 240V INC. 11,13-15
13	INSULATION WASHER
14	FLAT WASHER 8
15	BALL BEARING 608DDW
16	RUBBER RING 22
17	TAPPING SCREW 4X70
18	BAFFLE PLATE
19	FIELD ASS\'Y 240V
20	MOTOR HOUSING COMPLETE
21	CARBON BRUSH CB-253
22	BRUSH HOLDER CAP 7-11
23	NAME PLATE GA6021C
24	HANDLE SET INC. 37
25	TAPPING SCREW 4X18
26	CONTROLLER
27	SLEEVE
28	SWITCH TG71B
29	TERMINAL BLOCK
30	TAPPING SCREW 4X18
31	STRAIN RELIEF
32	CORD GUARD 10-90
33	POWER SUPPLY CORD 1.0-2-2.5
34	COMPRESSION SPRING 6
35	SWITCH BASE
36	SWITCH LEVER A COMPLETE
37	HANDLE SET INC. 24
38	O RING 7
39	SHOULDER PIN 5
40	RUBBER PIN 4
41	BALL BEARING 696ZZ
42	RING SPRING 7
43	FLAT WASHER 8
44	LOCK WASHER
45	SPIRAL BEVEL GEAR 38
46	LOCK SPRING 16
47	LOCK SLEEVE
48	PAN HEAD SCREW M3X6
49	BEARING RETAINER 39
50	BALL BEARING 6002DDW
51	FLAT WASHER 15
52	O RING 48
53	BEARING BOX
54	PAN HEAD SCREW M5X18
55	LABYRINTH RING
56	SPINDLE
57	PAN HEAD SCREW M5X16
58	TOOLLESS WHEELCOVER 150AK ASSY INC. 57
59	INNER FLANGE 42
60	LOCK NUT 14-45
61	FLAT WASHER 10
A01	GRIP 36 COMPLETE
A02	LOCK NUT WRENCH 35
A03	UPC/MODEL GA6021C 230-240V
