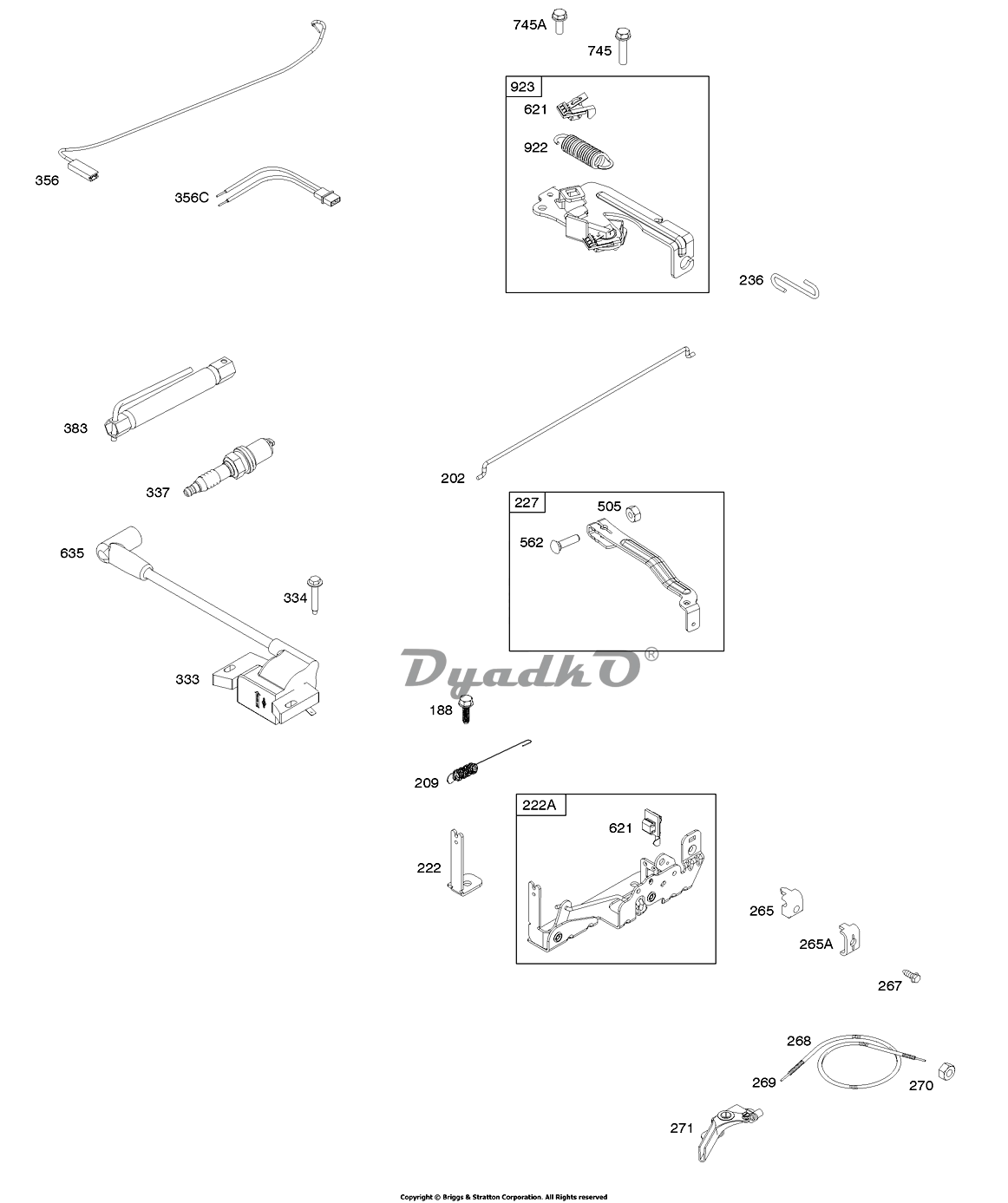

Схема (деталировка) бензиновые двигатели с вертикальным валом BRIGGS&STRATTON 08P502-0087-H1 Armature, Controls, Electrical System, Governor Spring, Ignition, Spark Plug. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

188	SCREW (Control Bracket)
202	LINK, Mechanical Governor
209	SPRING, Governor Used Before Code Date 16071100
209	SPRING, Governor Used After Code Date 16071000
222	BRACKET, Control
222A	BRACKET, Control Used After Code Date 17010100
222A	BRACKET, Control Used Before Code Date 17010200
227	LEVER, Governor Control
236	LINK, Lockout
265	CLAMP, Casing
265A	CLAMP, Casing
267	SCREW (Casing Clamp)
268	CASING, Control Wire (Cut To Required Length)
269	WIRE, Control (Cut To Required Length)
270	NUT (Control Wire Casing)
271	LEVER, Control
333	ARMATURE, Magneto
334	SCREW (Magneto Armature)
337	PLUG, Spark (EMS)
356	WIRE, Stop
356C	WIRE, Stop
383	WRENCH, Spark Plug
505	NUT (Governor Control Lever)
562	BOLT (Governor Lever)
621	SWITCH, Stop
635	BOOT, Spark Plug
745	SCREW (Brake)
745A	SCREW (Brake)
922	SPRING, Brake
923	BRAKE
