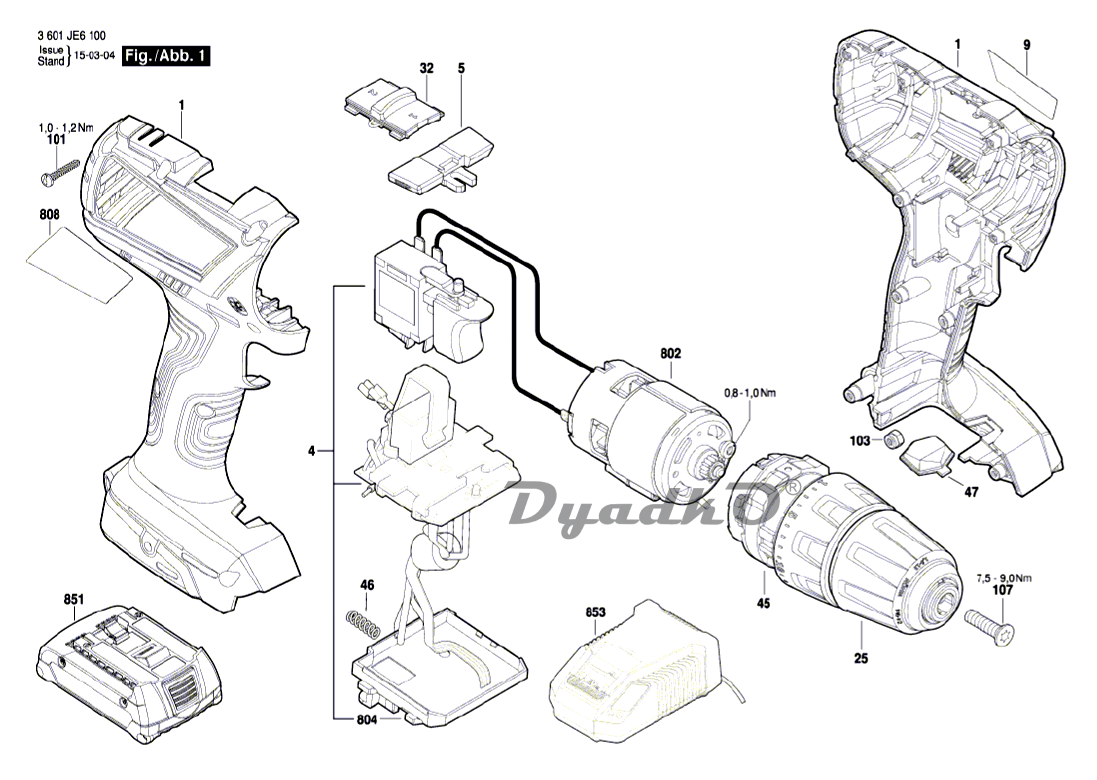

Схема (деталировка) шуруповёрты BOSCH GSR 18-2-LI Plus GSR 18-2-LI Plus (3601JE6100). Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Housing
4	Electronics Module
5	Adjusting lever
9	Manufacturer\'s nameplate GSR 18-2-LI Plus
25	Keyless Chuck
32	Switchover Unit
45	Gear Box
46	Compression Spring
47	Lens
101	Torx Oval-Head Screw
103	Nut
107	Countersunk-Head Screw M6x23
802	DC motor
804	Contact retainer
808	Nameplate
851	Slide-In Accu Package 18V, 2,0Ah, LI BBS MR-L
851	Slide-In Accu Package BBS MR 18V, 3,0Ah, LI
851	Slide-In Accu Package 18V, 1,5Ah LI, MS
851	Battery Pack BBS MR, 18V, 5,0 Ah 48 S
853	Charger EU 230/14,4-18V, 30 40 S
853	Fast Charger EU AL 1820 CV 220V
853	Fast Charger GB 230/10,8-18V, 1h
853	Charger EU GAX 18V-30 230/10,8-18V 1h
853	Charger EU GAL 1880 CV 230/14,4-18V
