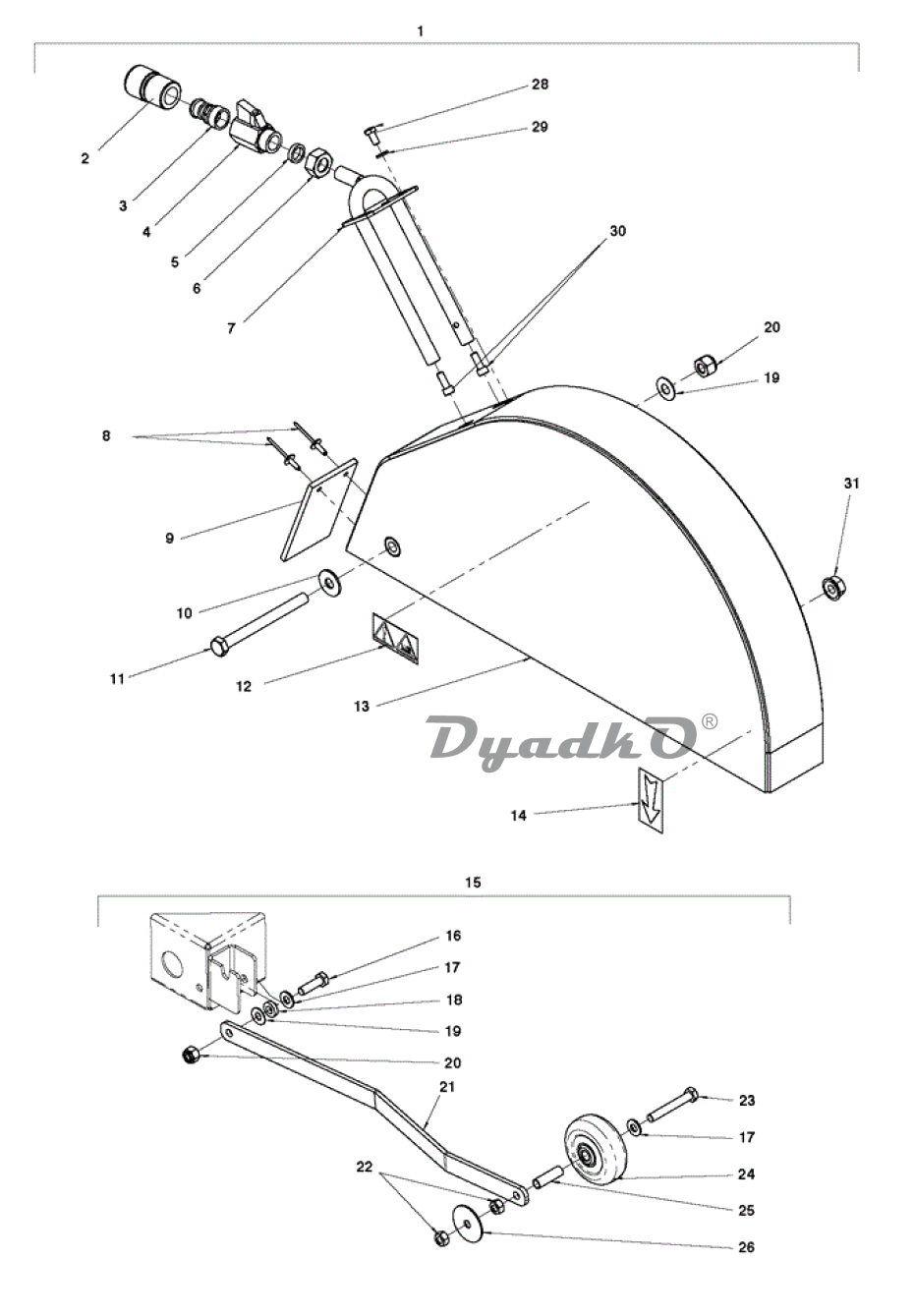

| 1 | BLADE GUARD 450mm |
| 1 | BLADE GUARD 500mm |
| 2 | QUICK COUPLING |
| 3 | ADAPTER |
| 4 | TAP |
| 5 | COLLET |
| 6 | NUT |
| 7 | COLLECTOR |
| 8 | RIVET |
| 9 | DEFLECTOR |
| 10 | WASHER |
| 11 | SCREW EHHM |
| 12 | DECAL |
| 13 | BLADE GUARD 450mm |
| 13 | BLADE GUARD 500mm |
| 14 | STICKER |
| 15 | KIT |
| 16 | SCREW EHHM |
| 17 | WASHER |
| 18 | WASHER |
| 19 | WASHER |
| 20 | HEXAGON LOCKING NUT |
| 21 | POINTER |
| 22 | HEXAGON NUT |
| 23 | SCREW EHHM |
| 24 | WHEEL |
| 25 | BUSHING |
| 26 | WASHER |
| 28 | SCREW EHHM |
| 29 | WASHER |
| 30 | SCREW IHSCM |
| 31 | HEXAGON NUT FLANGE |
