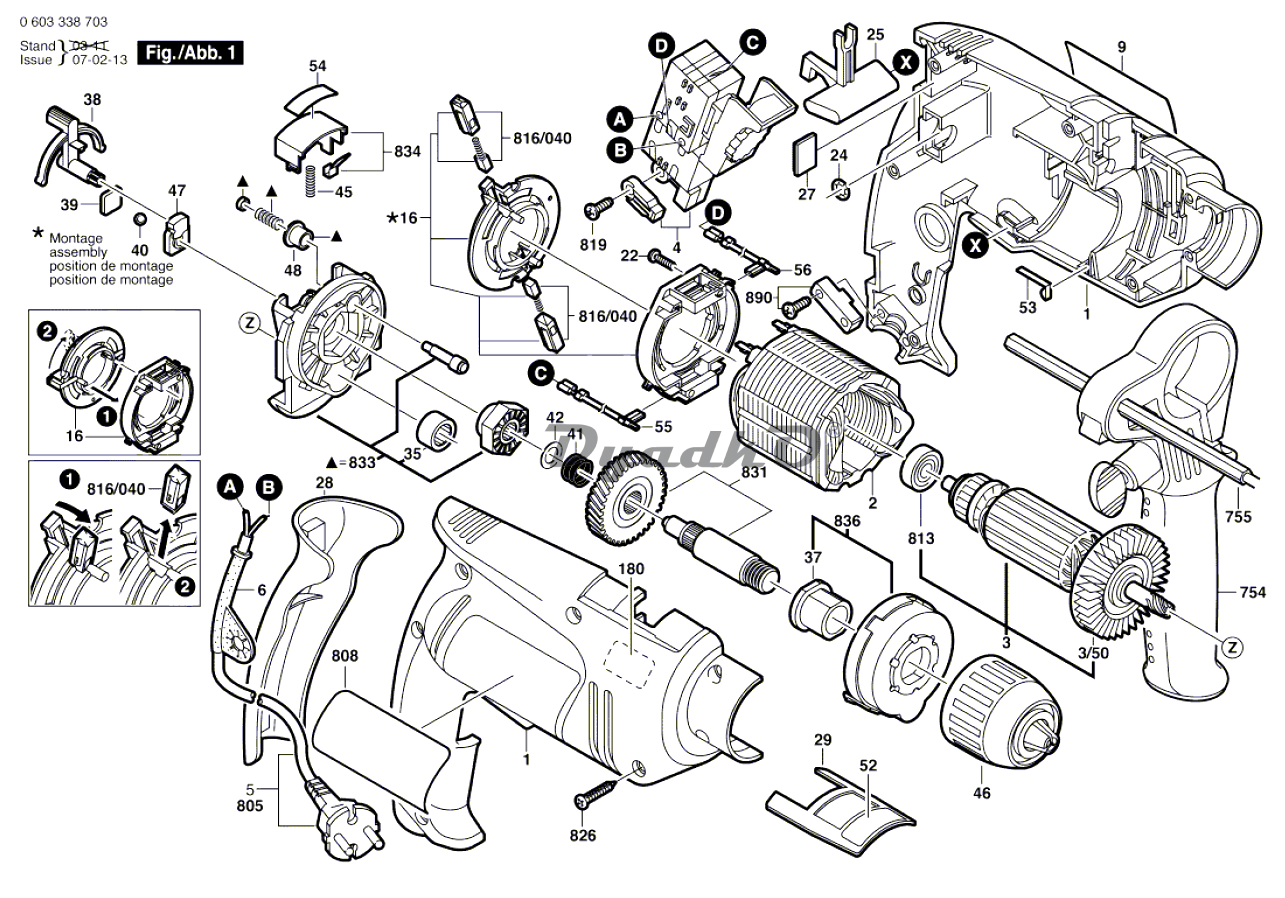

Схема (деталировка) дрели BOSCH PSB 600 RE PSB 600 RE (0603338703). Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Housing Section GREEN
2	Field 220-240V
3	Armature 220-240V
3/50	Fan
4	Switch
6	Grommet Ø6,2-Ø6,9x90 MM
9	Manufacturer\'s nameplate PSB 600 RE
16	Brush Plate
22	Tapping Screw DIN 7981-ST2,2x9,5-C-H
24	O-Ring 5,0x1,5 MM
25	Change-Over Switch RED
27	Damping Element
28	Handle Cover BLACK
29	Insert Piece
35	Needle bearing
37	Porous Bearing
38	Indexing Disk BLACK
39	Pressure Plate
40	Ball DIN 5401-5 G28
41	Compression Spring
42	Shim 0,3 MM
45	Compression Spring
46	Keyless Chuck
47	Frame
48	Sleeve
52	Reference Plate
53	Contact Strap
54	Reference Plate RED
55	Pvc-Insulated Cable L=95 MM
754	Auxiliary Handle 1/2\"
755	Depth-Gauge
805	Power supply cord EU 2,65m 2 x 1,0mm H05 RN-F
808	Nameplate
813	Ball Bearing 7x19x6
816/040	Brush Holder
819	Tapping Screw DIN 7981-ST2,9x13-C-H
826	Tapping Screw DIN 7981-ST3,9x19-C-H
831	Drilling Spindle 1/2\"
833	Bearing Bracket
834	Push-Button BLACK
836	Gear Cover GREEN
890	Fastening parts kit
