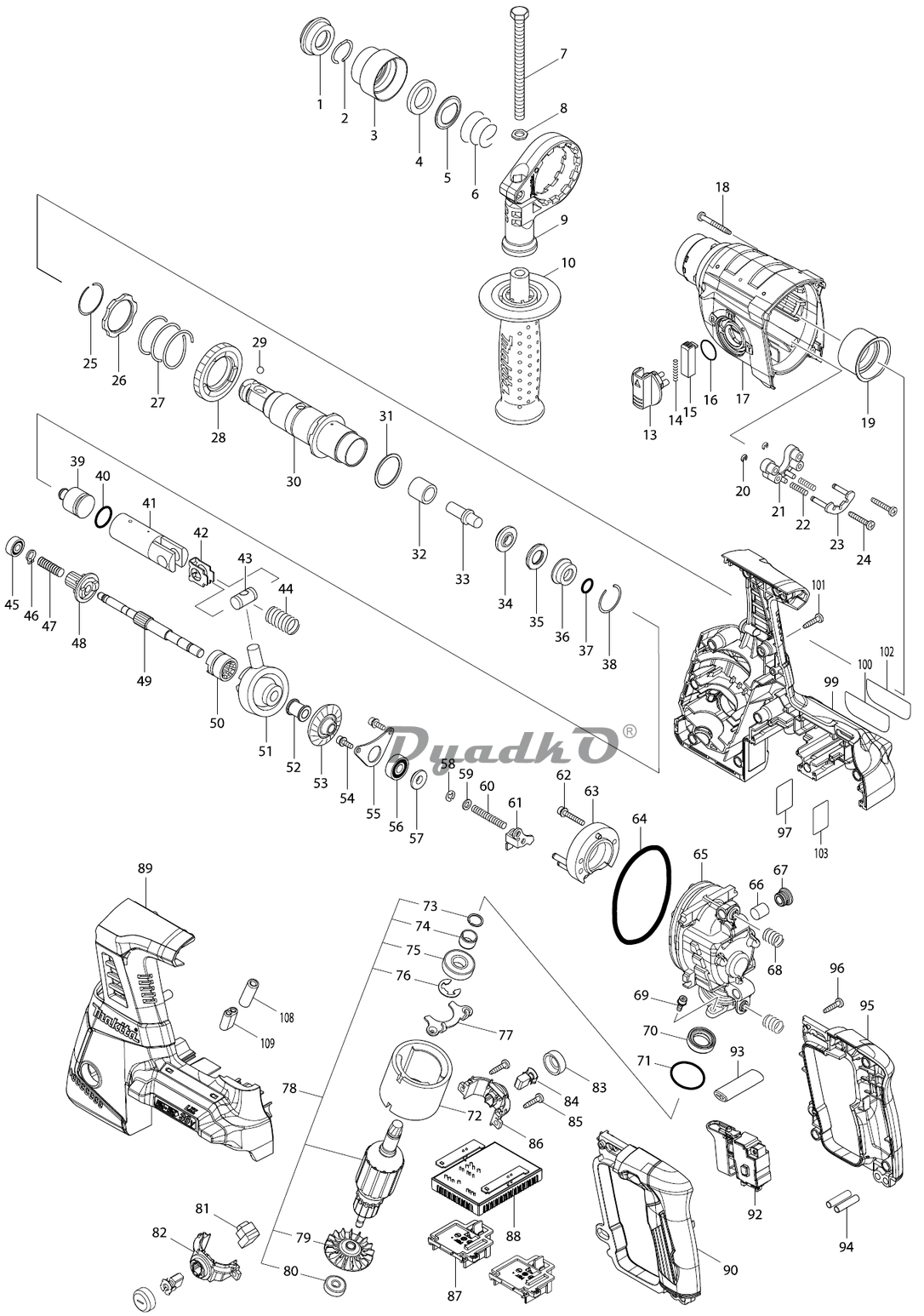

Схема MAKITA DHR263

001 CAP 35
002 RING SPRING 19
003 CHUCK COVER
004 RING 21
005 GUIDE WASHER
006 CONICAL COMP. SPRING 21-29
007 HEX. BOLT M8X120
008 HEX. WASHER
009 GRIP BASE
10 GRIP 36 COMPLETE
13 CHANGE LEVER
14 COMPRESSION SPRING 4
15 LOCK BUTTON
16 O RING 17
17 GEAR HOUSING COMPLETE
18 TAPPING SCREW 4X40
19 NEEDLE BEARING COMPLETE
20 STOP RING E-3
21 GUIDE BASE
22 COMPRESSION SPRING 4
23 LOCK PLATE COMPLETE
24 TAPPING SCREW 4X25
25 RING SPRING 29
26 WASHER 31
27 COMPRESSION SPRING 32
28 SPUR GEAR 51
29 STEEL BALL 7.0
30 TOOL HOLDER COMPLETE
31 FLAT WASHER 28
32 SLEEVE 9
33 IMPACT BOLT
34 RING 10
35 CUSHION RING 13
36 O RING CASE
37 O RING 9
38 RING SPRING 28
39 STRIKER
40 O RING 16
41 PISTON CYLINDER
42 GUIDE PLATE
43 PISTON JOINT
44 COMPRESSION SPRING 14
45 BALL BEARING 606ZZ
46 RETAINING RING S-7
47 COMPRESSION SPRING 7
48 SPUR GEAR 10
49 CAM SHAFT
50 CLUTCH CAM
51 SWASH BEARING 10
52 SLEEVE 9
53 SPIRAL BEVEL GEAR 26
54 HEX. SOCKET HEAD BOLT M4X12
55 BEARING RETAINER B
56 BALL BEARING 608ZZ
57 RING 8
58 STOP RING E-4
59 FLAT WASHER 5
60 COMPRESSION SPRING 6
61 CHANGE PLATE
62 HEX. SOCKET HEAD BOLT M4X25
63 INNER SUPPORT COMPLETE
64 O-RING 68
65 INNER HOUSING
66 FILTER
67 CAP
68 COMPRESSION SPRING 10
69 HEX. SOCKET HEAD BOLT M4X12
70 OIL SEAL 15
71 O RING 28
72 YOKE UNIT
73 RETAINING RING WR12
74 SLEEVE 12
75 BALL BEARING 6001DDW
76 STOP RING E-10
77 BEARING RETAINER A
78 ARMATURE ASS\'Y 36V
79 FAN 44
80 BALL BEARING 626DDW
81 LIGHT CIRCUIT
82 BRUSH HOLDER
83 HOLDER CAP
84 CARBON BRUSH CB-442
85 TAPPING SCREW 4X18
86 BRUSH HOLDER
87 TERMINAL
88 CONTROLLER
89 HOUSING SET
90 HANDLE SET
92 SWITCH
93 F/R CHANGE LEVER
94 PIN 6
95 HANDLE SET
96 TAPPING SCREW 4X18
97 DHR263 SERIAL NO. LABEL
99 HOUSING SET
100 DHR263 NAME PLATE
101 TAPPING SCREW 4X18
102 CLEAR LABEL
103 CLEAR LABEL
108 LINE FILTER
109 LINE FILTER
C20 RUBBER PIN 4
C30 PLATE
C40 INDICATION LABEL
D10 INC. 89
A01 GREASE VESSEL SET
A02 DEPTH GAUGE
A03 CLOTH
A04 CONNECTOR P.CASE(TYPE4) COMP.
C10 LATCH
A05 DHR263ZJ INDICATION LABEL
A06 DHR263ZJ PLASTIC CASE LABEL
D10 INC. 99
A07 INNER TRAY
C40 INDICATION LABEL
D10 INC. 95
C30 PLATE
C20 RUBBER PIN 4
C10 RUBBER PIN 6
C10 OIL SEAL 25
D10 INC. 90
C10 RUBBER PIN 6
