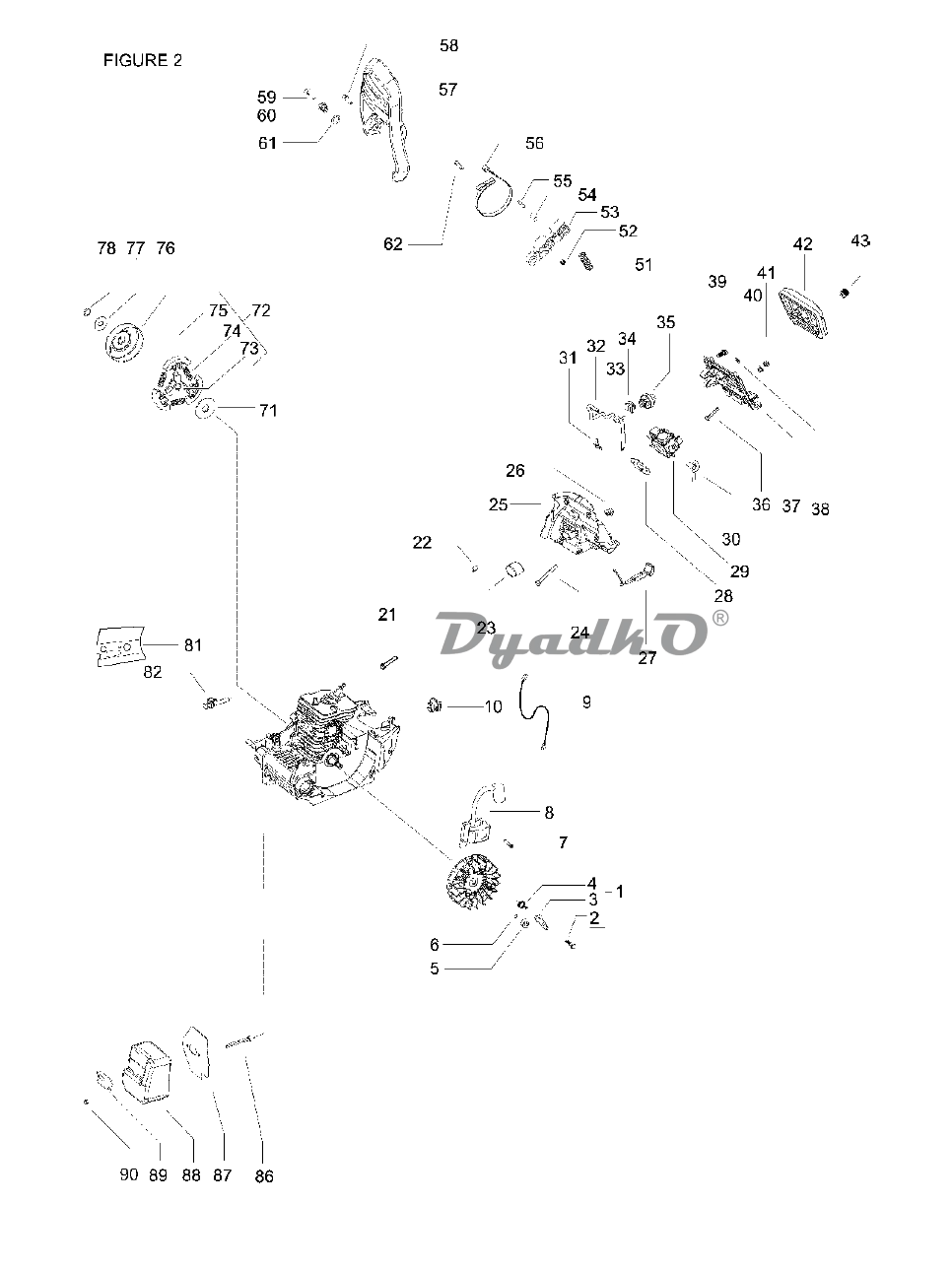

Схема PARTNER P4700, P5000, P5300 (965193401, 965193402, 965193403, 965193421, 965193422, 965193423, 965193431, 965193432, 965193433) 2007-01 Сцепление, Карбюратор, Зажигание
| 1 | FLYWHEEL |
| 2 | RIVET |
| 3 | PAWL |
| 4 | SPRING |
| 5 | HEXAGON NUT |
| 6 | WASHER |
| 7 | SCREW IHSCM |
| 8 | IGNITION MODULE |
| 9 | CABLE IGNITION COIL - S |
| 10 | STOP SWITCH |
| 21 | SCREW |
| 22 | IMPULSE HOSE |
| 23 | INLET PIPE |
| 24 | SCREW |
| 25 | SPACER |
| 26 | GROMMET |
| 27 | ARM |
| 28 | GASKET |
| 30 | FUEL HOSE |
| 31 | JOINT |
| 32 | UPPER HOSE |
| 33 | HOSE |
| 34 | GROMMET |
| 35 | PRIMER |
| 36 | SCREW |
| 37 | HOUSING |
| 38 | WASHER |
| 39 | SCREW IHSCT |
| 40 | BUSHING |
| 41 | NUT |
| 42 | AIR FILTER |
| 43 | KNOB |
| 51 | SPRING |
| 52 | NUT |
| 53 | LEVER |
| 54 | SLEEVE |
| 55 | PIN RETAINING SCREW |
| 56 | BRAKE BAND |
| 57 | BRAKE LEVER |
| 58 | SCREW |
| 59 | SCREW |
| 60 | SLEEVE |
| 61 | WASHER |
| 62 | SCREW |
| 71 | WASHER |
| 72 | CLUTCH KIT |
| 73 | HUB |
| 74 | SPRING |
| 75 | CLUTCH LINING |
| 76 | CLUTCH DRUM |
| 77 | WASHER |
| 78 | RING |
| 81 | PLATE |
| 82 | CHAIN TENSIONER |
| 86 | SCREW |
| 87 | PLATE |
| 88 | MUFFLER ASSY |
| 89 | EXHAUST DUCT |
| 90 | LOCK NUT |
| CLUTCH DRUM |
