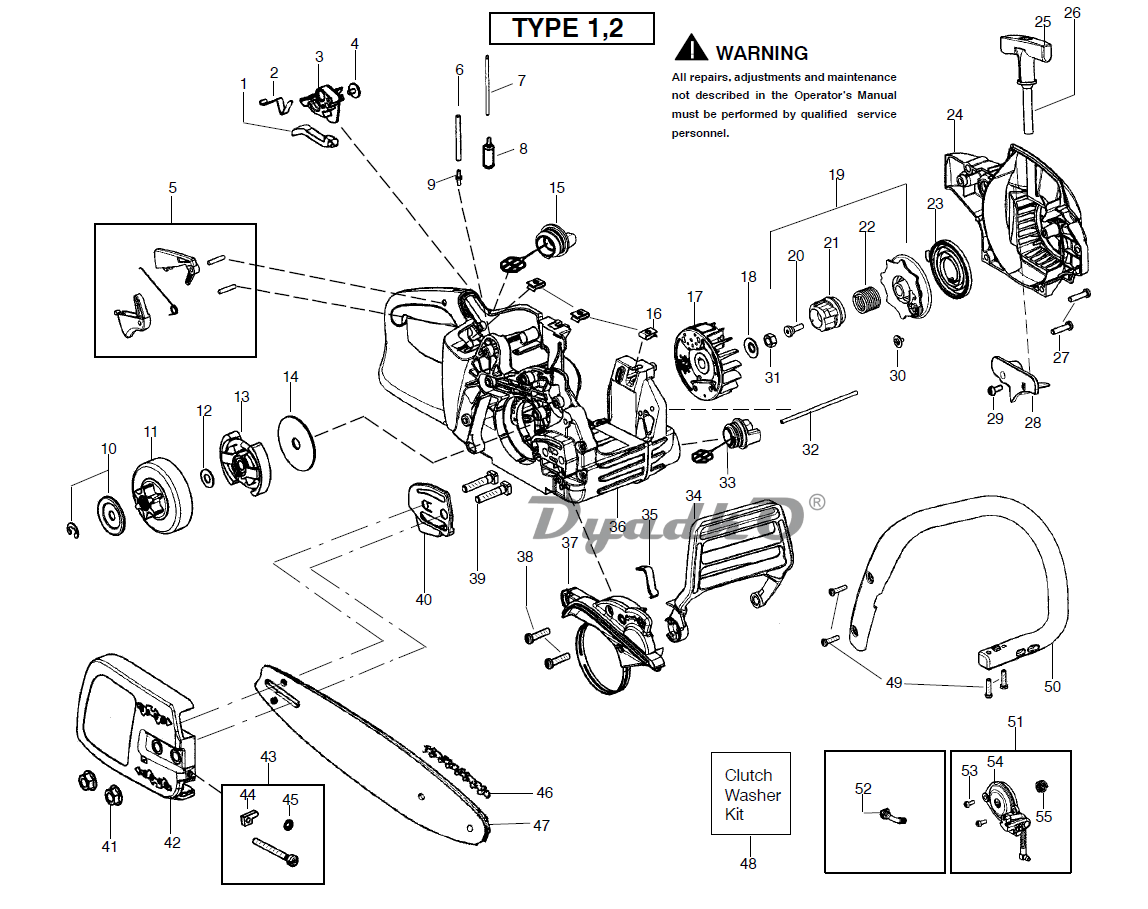

Схема MCCULLOCH MC3516 (966625201) 2012-01 Корпус

1.	Knob-Choke
2.	Spring-Ign. Switch
3.	Lever-Ign. Switch
4.	Screw
5.	Kit-T rigger/Lockout
6.	Kit-Fuel Line (Large)
7.	Kit-Fuel Line (Small)
8.	Assy-Fuel Pick Up
9.	Fitting-Fuel line
10.	Kit-Clutch Washer
11.	Assy-Clutch Drum 3/8”
12.	Kit-Clutch Washer
13.	Assy-Clutch
14.	Washer-Large Clutch
15.	Assy-Fuel Cap w/ret
16.	Nut-”U” type speed
17.	Assy-Flywheel
18.	Washer- Flywheel
19.	Kit-EPS Starter Pulley (Incl. 20,21,22,30)
20.	Screw-Shoulder
21.	Hub-EPS
22.	Spring-EPS
23.	Spring-Starter
24.	Kit - Fan Housing (Incl. 28, 29)
25.	Handle-Starter
26.	Kit-Rope
27.	Screw
28.	Guide - Rope
29.	Screw
30.	Screw
31.	Nut-Flywheel
32.	Assy-Oil Vent
33.	Assy-Oil Cap w/ret.
34.	Handguard
35.	Spring-Handguard
36.	Assy-Chassis (Incl. 5,6,7,8,9,15,16,33,35,39)
37.	Kit-Chainbrake
38.	Screw
39.	Bolt-Bar
40.	Plate-Bar
41.	Nut-Bar
42.	Assy-Clutch Cover (Incl. # 43)
43.	Kit-Bar Adjust (Incl. 44,45)
44.	Pin-Bar Adjust
45.	Retainer-Bar Adjust
46.	16” Chain
47.	16” Bar
48.	Kit-Clutch Washer (Incl. 10,12)
49.	Screw
50.	Handle-Front
51.	Kit-Oil Pump (Incl. 53,54,55)
52.	Assy-Oil Pick Up
53.	Screw
54.	Assy-Oil Pump
55.	Gear-Worm
