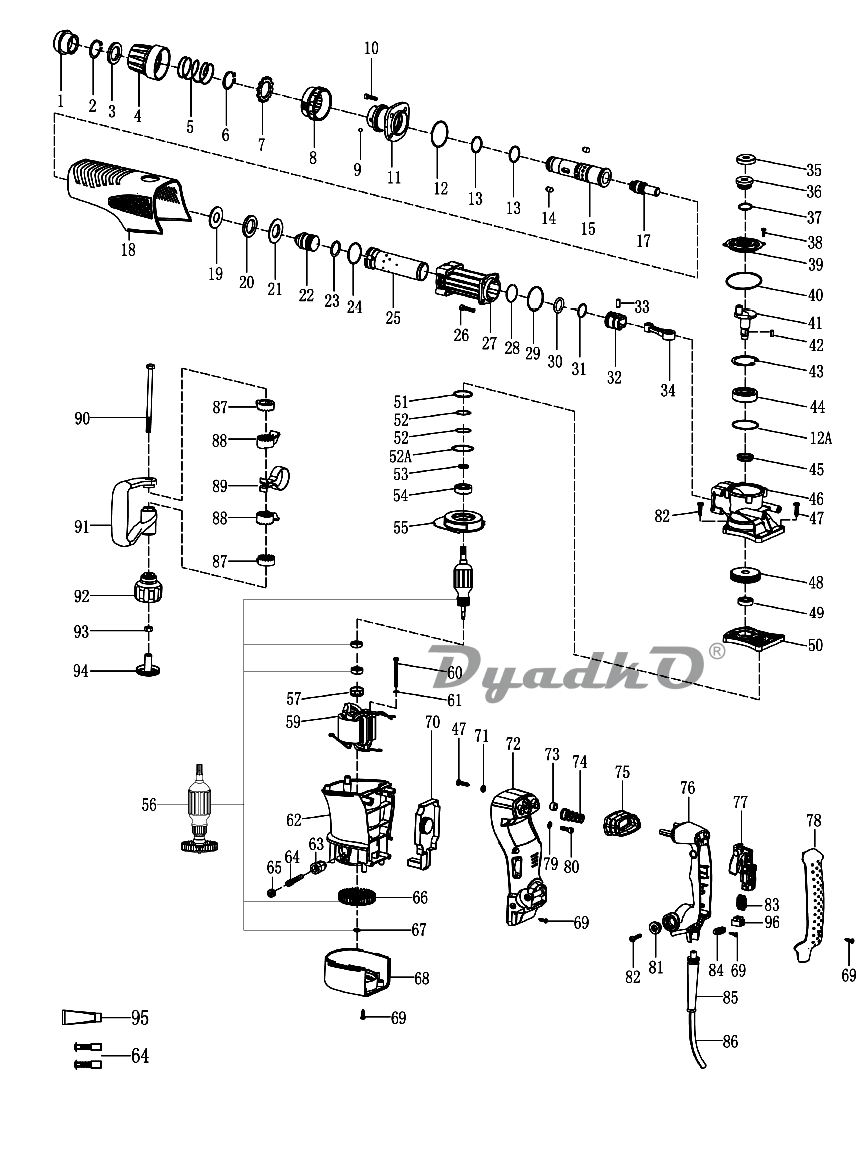

Схема REDVERG RD-DH1350

1 88363068 Hammer rod protector
2 88210140 Φ28 Retaining Ring
3 88223066 Move limited ring
4 88263133 Protective lining
5 88223067 Flex Spring
6 88210184 Φ32 Retaining Ring
7 88263134 Plum blossom chuck
8 88263135 Move limited ring
9 88210182 Φ6 Steel Ball
10 88210016 Hex. Socket Bolt M8×30(12.9)
11 88273034 Front Cover
12 88363070 O-Ring Φ46.5×Φ2.2
12A 88363004 O-Ring Φ46.5×Φ2
13 88363065 Fluorin O Ring Φ27.5×Φ2
14 88223068 Lock Staff Bead
15 88273035 Hammer rod sleeve
16 88363069 Fluorin O Ring Φ2.62×Φ15.54
17 88273042 Impact Hammer Assembly
18 88263136 Cover
19 88273037 Hammer ring
20 88363066 Shock Absorption Washer
21 88273038 Limit ring
22 88273039 Impact Piston
23 88364007 Fluorin O Ring Φ3.5×Φ23
24 88363024 O-Ring Φ36×Φ2
25 88273040 Cylinder
26 88210134 Hex. Socket Bolt M6×25(12.9)
27 88290081 Aluminum Head
28 88223072 Steel Wire Block Ring Φ32×Φ1
29 88363007 O-Ring Φ44×Φ2.2
30 88363010 Fluorin O RingΦ22×Φ4
31 88363011 O-Ring Φ24×Φ1.8
32 88263097 Gas Press Piston
33 88223020 Piston PinΦ8×26
34 88223080 Connecting Rod Ass’y
35 88263124 Adorn Cover
36 88223055 Oil Tank Cover
37 88361021 O-Ring Φ20×Φ2
38 88210188 Hex .Socket Bolt M4×12(12.9)
39 88223069 Shell cover
40 88363002 O-Ring Φ55×Φ2.5
41 88273002 Crank Shaft
42 88210168 Palt Key 4×12
43 88210067 Φ47 Retaining Ring
44 88235018 Ball Bearing 6303 RS
45 88363003 Oil Seal Ring Φ17×Φ30×6
46 88290082 Decelerate Box
47 88210181 Tapping Screw ST5.5×30
48 88273041 Gear
49 88235005 6001 RS Ball Bearing
50 88290083 Inner Cover
51 88363001 O-Ring Φ31.5×Φ2
52 88223078 6201 Bearing Washer Φ27×Φ12.1×0.5
52A 88223079 6201 Bearing WasherΦ31.2×Φ12.1×0.5
53 88223003 Whorl Seal Ring
54 88235008 6201 RS Ball Bearing
55 88263137 Fan Guide
56 88280115 Armature
57 88263159 Bearing Ring
59 88280116 Stator
60 88210042 ST4.8×58 Tapping Screw
61 88210055 Φ5 Flat Washer
62 88263157 Housing Ass\'y
63 88243007 Brush Holder
64 88243028 Carbon Brush
65 88243001 Brush Cap
68 88263140 Fan
69 88210115 ST4.2×16 Tapping Screw
70 88243032 Speed Adjuster TSQ 05
71 88210183 Φ5.5×Φ12×1 Flat Washer
72 88263141 Main Handle Seat
73 88364073 Shock Absorption Ferrule
74 88223057 Shock Absorption Spring
75 88363067 Shock Absorption Jacket
76 88263142 Main Handle
77 88243034 Switch
78 88263143 Main Handle Cover
79 88210056 Φ6 Flat Washer
80 88210007 Hex. Socket Bolt M6×20
81 88223059 Main Handle Platen
82 88210119 Tapping ScrewST5.5×25
83 88244018 0.18μH Electricity Feels
84 88261010 Cord Clip
85 88261051 Cord Armor
86 88250000 Cord
87 88263075 Disk with gap
88 88263144 Clamping
89 88223070 Fixed belt
90 88210121 Hexagon head bolt M8×130
91 88263077 Side Handle
92 88263078 Function Knob
93 88320045 Nut M8×6.4
94 88263079 Function Knob cover
95 88304012 Oil Bottle
96 88210076 Rivet
