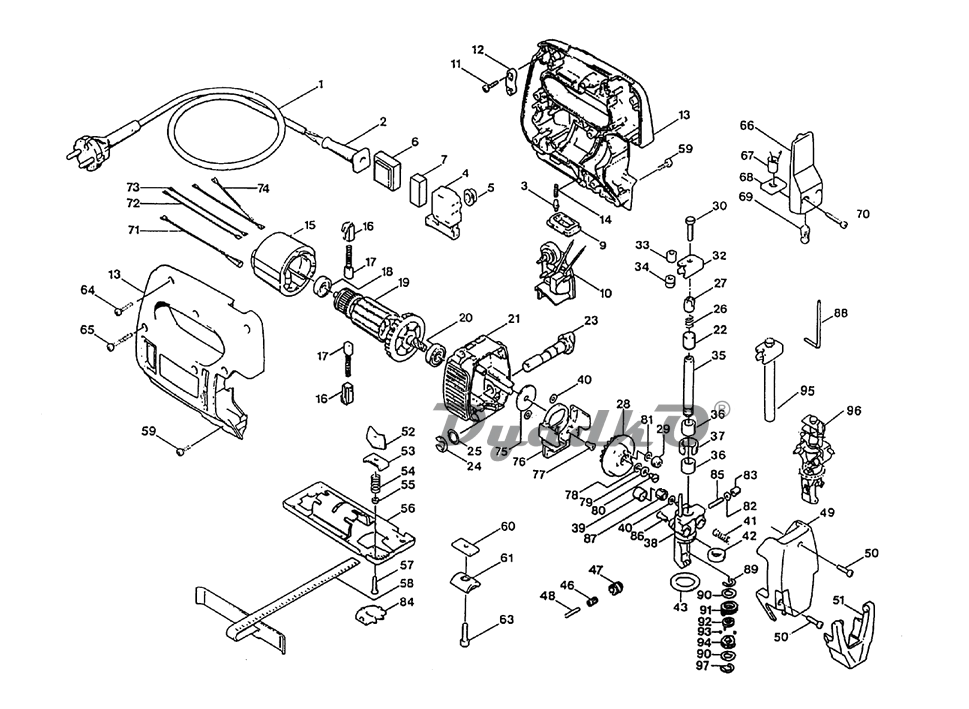

Схема (деталировка) лобзики KRESS CST 6280 EL FIX. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	STOJAN LNF20 AS IS 34568
2	fairlead
4	SWITCH CBS 6800, 6286 CST
5	LOCK BUTTON SWITCH
10	CONTROL BOARD 19742, 19678
15	STOJAN D. POWER CST6250 / 80/85, BMLR4000
17	ROTOR 550 SPS 551 SPS
19	ROTOR KIT
23	Brush holders CHKS 6055/6055/6050 / KS 1050
27	FERRULE THREADED SPINDLE CST 6285
28	FERRULE needle bearing, OR 24083
29	SPINDLE CHKS 6055 ALTERNATIVE 31078
32	CLIP TERMINAL CST 6285
33	Distance sleeve
34	FERRULE CST 6265/68/70/75 OR 24,597.24586
36	FERRULE BRASS
37	ELEMENT felt SPINDLE CST SPS
40	BEARING rOLLERS
41	Shim TBS
42	SPRING 6240 CST
43	COVER SCREW 4X12 (JIGSAW, SANDERS)
46	ROLL CST6275, 550 SPS, BPS 520, IS AS 45604
47	ROLLER GUIDE BLADE CST6286E
48	FERRULE CST6270,550SPS, 520 BPS 36,37,38,44
50	ROTOR FOR CST 6270 / 75E, 520 BPS
52	PLAT CUFFS CST 6275 EL
53	BUMPER JIGSAW
55	NUT M 4
56	PAD FELT CST 6240, 6250 CST
57	WORKTOP CHKS 6060 / 1500KS / 1600KS / 1800KS
58	ROLLER BLADE GUIDE
59	SCREW FIXING SANI CST 6275 EL
64	COVER SCREW 4,0X19 (UNIVERS)
69	SWITCH WS 6350
70	SWITCH CHKS 14990
78	Conveyor TAŚ.GÓRNY (PLATE) CBS6800 / 6800
79	WASHER 4,3 DIN 125
81	sPRING
82	Flywheel Eccentric
83	FOOT CST 6275,
84	HOUSING METAL CST6270 / E
86	The locking pin CST
87	BULB 2.2V CST 6280EL, FIX / 550W
89	SECURITY spring ring.
90	Shim
91	LEVER SAME 47316/45838/45539
92	sPRING
93	STEEL BALL 3,5 MM
94	OVAL RING LOCK SPINDLE
95	SPINDLE JIGSAW
96	SPINDLE KPL.CST6286E, 650SPS OR 45513
97	WAVY WASHER SHIELD SHIELD
